1693660 - Simplicity Deluxe Hard Snow Cab Glass Door Parts Diagram

Deluxe Hard Snow Cab

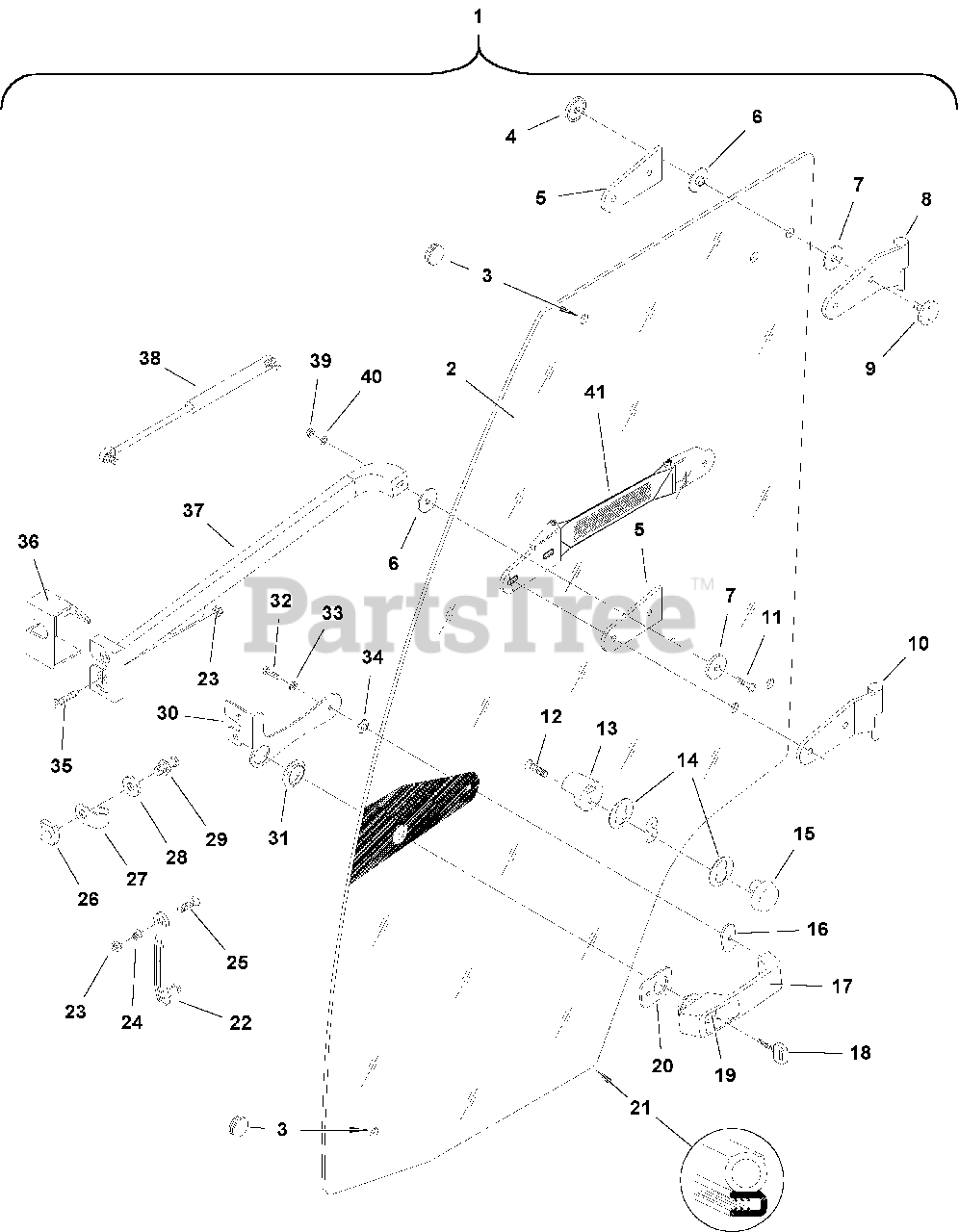

Glass Door Parts Diagram

  • Title

1

Simplicity 1721394SM

LEFT DOOR, Complete, (Includes Ref. 2 - 41)

$1780.99

$

Usually ships in 2-12 days

0

1

Simplicity 1721395SM

RIGHT DOOR, Complete, (Includes Ref 2 - 41)

$1780.99

$

Usually ships in 2-12 days

0

2

Simplicity 1721394SM

LEFT DOOR, Glass

$1780.99

$

Usually ships in 2-12 days

0

10

Simplicity 1721370SM

DOOR HINGE, Lower Right

$

$

Not available

2

Simplicity 1721395SM

RIGHT DOOR, Glass

$1780.99

$

Usually ships in 2-12 days

0

10

Simplicity 1721371SM

DOOR HINGE, Lower Left

$

$

Not available

3

Simplicity 1721373SM

RUBBER STUBBLE, DM 16

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 1721429SM

WASHER, with Bushing, M8

$7.99

$

Usually ships in 2-12 days

0

5

Simplicity 1721372SM

INNER BRACKET, Hinge

$

$

Not available

6

Simplicity 1721428SM

WASHER, Rubber with Socket

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 1721427SM

WASHER, Rubber

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 1721368SM

DOOR HINGE, Upper Right

$

$

Not available

8

Simplicity 1721369SM

DOOR HINGE, Upper Left

$

$

Not available

9

Simplicity 1721435SM

PVC-WASHER, with Screw, M8 x 30

$3.99

$

Usually ships in 2-12 days

0

11

CARRIAGE BOLT, M6 x 1 x 30

$

$

Not available

12

SCREW, Flat Head Socket, M8 x 1 1/4 x 25

$

$

Not available

13

Simplicity 1721334SM

BEARING, Inner Gas Spring
(Superseded to 1721334ASM)

$24.99

$

Usually ships in 2-12 days

0

14

Simplicity 1721431SM

WASHER, Rubber

$

$

Not available

15

Simplicity 1721335SM

BEARING, Outer Gas Spring

$16.99

$

Usually ships in 2-12 days

0

16

Simplicity 1721378SM

RUBBER PAD, Small

$2.99

$

Usually ships in 2-12 days

0

17

Simplicity 1721377SM

DOOR HANDLE, with Door Lock

$148.99

$

Usually ships in 2-12 days

0

18

Simplicity 1721387SM

KEY, (NR. 14603)

$11.99

$

Usually ships in 2-12 days

0

19

Simplicity 1721386SM

LOCK, Door

$

$

Not available

20

Simplicity 1721379SM

RUBBER PAD, Large

$2.99

$

Usually ships in 2-12 days

0

21

Simplicity 1721325SM

PROFILE SEALING, 23 ft. 3 in.

$

$

Not available

22

Simplicity 1721391SM

BAR, Door Holding

$6.99

$

Usually ships in 2-12 days

0

23

NUT, Flange Lock, M8

$

$

Not available

24

NUT, M8

$

$

Not available

25

SCREW, Flat Hd. Phillips, M8 x 1 1/4 x 30

$

$

Not available

26

Simplicity 1721390SM

BRACKET, Threaded

$19.99

$

Usually ships in 2-12 days

0

27

Simplicity 1721389SM

GLIDE, Metal

$8.99

$

Usually ships in 2-12 days

0

28

Simplicity 1721388SM

PAD

$6.99

$

Usually ships in 2-12 days

0

29

Simplicity 1721434SM

LOCKING BOLT, 13mm

$43.99

$

Usually ships in 2-12 days

0

30

Simplicity 1721374SM

LOCKER BRACKET, Left Door

$50.99

$

Usually ships in 2-12 days

0

30

Simplicity 1721375SM

LOCKER BRACKET, Right Door

$17.99

$

Usually ships in 2-12 days

0

31

Simplicity 1721380SM

RUBBER PAD, with Socket, Large

$2.49

$

Usually ships in 2-12 days

0

32

CAPSCREW, M6 x 1 x 20

$

$

Not available

33

WASHER, M6

$

$

Not available

34

Simplicity 1721381SM

RUBBER PAD, with Socket, Small

$2.49

$

Usually ships in 2-12 days

0

35

SCREW, Flat Hd. Slotted, M8 x 1 1/4 x 40

$

$

Not available

36

Simplicity 1721383SM

DOOR LOCK COVER, Left

$13.99

$

Usually ships in 2-12 days

0

36

Simplicity 1721385SM

DOOR LOCK COVER, Right

$15.99

$

Usually ships in 2-12 days

0

37

Simplicity 1721382SM

INNER DOORLOCK, Left w/ Handle

$153.99

$

Usually ships in 2-12 days

0

37

Simplicity 1721384SM

INNER DOORLOCK, Right w/ Handle

$136.99

$

Usually ships in 2-12 days

0

38

Simplicity 1721376SM

GASLIFT, 320MM 300N

$147.99

$

Usually ships in 2-12 days

0

39

NUT, Nylock M6 x 1

$

$

Not available

40

WASHER, M6

$

$

Not available

41

Simplicity 1722425SM

STRAP, Door Stop

$110.99

$

Usually ships in 2-12 days

0
