1693706 - Simplicity 54" Turbo Collector 54" Turbo Parts Diagram

54" Turbo Collector

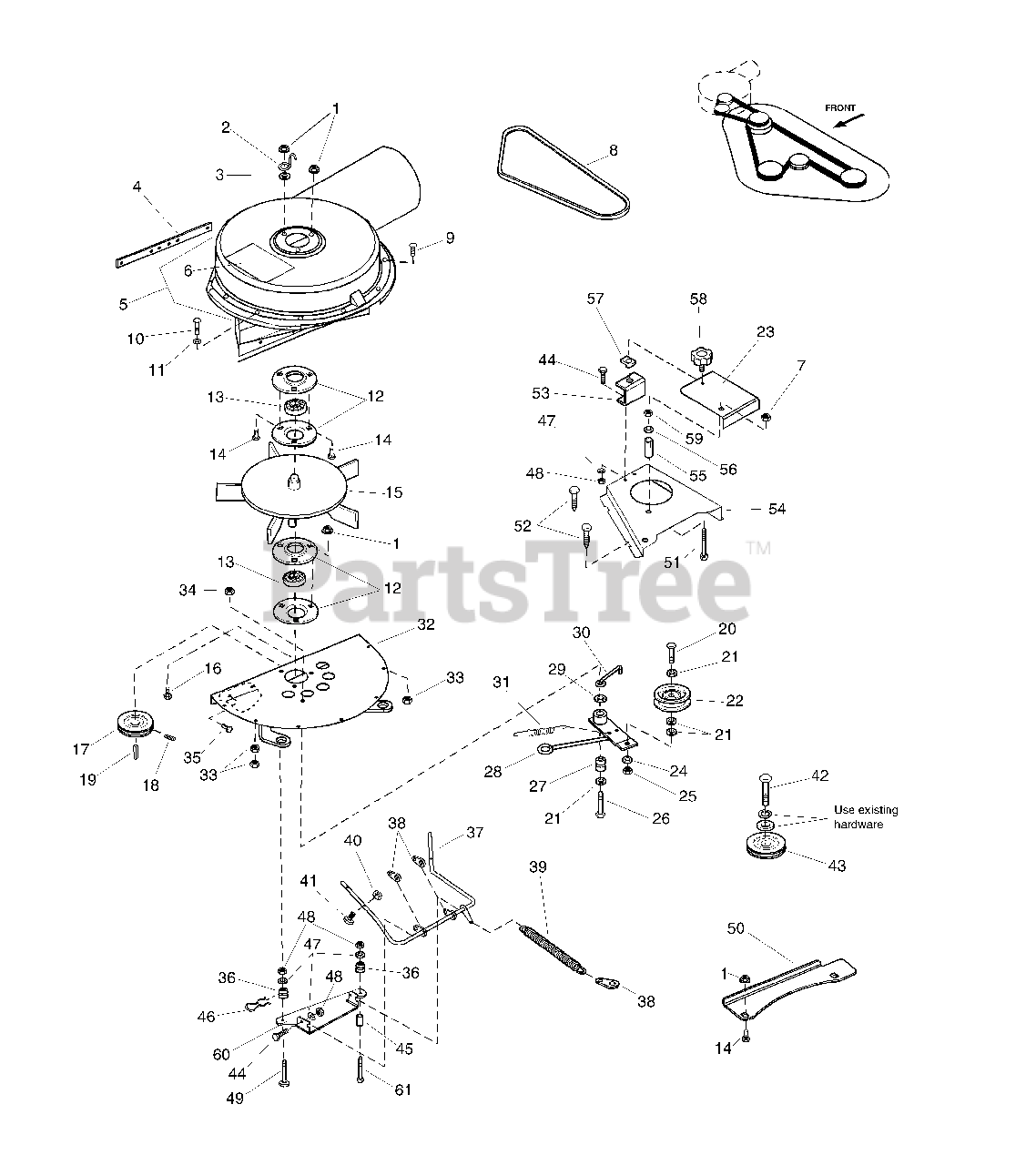

54" Turbo Parts Diagram

  • Title

1

Simplicity 1927557SM

FLANGE LOCKNUT, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

2

Simplicity 1672689SM

S-HOOK

$31.99

$

Usually ships in 2-12 days

0

3

Simplicity 1933988SM

PUSH NUT, 5/16-18
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 1706630ASM

STRAP

$9.49

$

In Stock, only 1 left!

0

5

Simplicity 1720892SM

HOUSING, With Decal

$228.99

$

Usually ships in 2-12 days

0

6

Simplicity 1700259SM

DECAL,Danger

$27.99

$

Usually ships in 2-12 days

0

7

Simplicity 1919438SM

NYLOCK NUT, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

8

Simplicity 1720932SM

V-BELT
(Superseded to 1734007SM)

$24.99

$

In Stock, only 2 left!

0

9

Simplicity 1960472SM

SCREW, Truss Head, 1/4-20

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 1921961SM

CAPSCREW, Hex, 1/4-20 x 1-1/4

$4.49

$

In Stock, only 3 left!

0

11

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

12

Simplicity 1665982ASM

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, only 4 left!

0

13

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

14

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1706631ASM

FAN ASSEMBLY

$384.99

$

In Stock, only 1 left!

0

16

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

17

Simplicity 1706634SM

PULLEY

$45.99

$

In Stock, only 1 left!

0

18

Simplicity 1960619SM

SET SCREW, Torx, 5/16-18 x 5/16

$3.49

$

In Stock, only 2 left!

0

19

Simplicity 2860403SM

KEY, Woodruff

$10.99

$

In Stock, only 1 left!

0

20

Simplicity 1921969SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, Qty 6

0

21

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 2174561SM

PULLEY, Idler

$53.99

$

In Stock, Qty 5

0

23

Simplicity 1720918ASM

COVER

$30.99

$

Usually ships in 2-12 days

0

24

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

25

Simplicity 1916950SM

NUT, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 12

0

26

Simplicity 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, Qty 11

0

27

Simplicity 1666114SM

BUSHING
(Superseded to 703140)

$11.99

$

Usually ships in 2-12 days

0

28

Simplicity 1720934ASM

LEVER ASSEMBLY

$53.99

$

Usually ships in 2-12 days

0

29

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 10

0

30

Simplicity 1704419SM

BELT STOP

$7.49

$

Usually ships in 2-12 days

0

31

Simplicity 2174896SM

SPRING, Extension

$20.99

$

In Stock, only 2 left!

0

32

Simplicity 1720721SM

PLATE & BRACKETS ASSEMBLY
(Superseded to 1720721ASM)

$140.99

$

Usually ships in 2-12 days

0

33

Simplicity 1930641SM

LOCKNUT, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

34

Simplicity 1930645SM

NUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

35

Simplicity 1927429SM

SCREW, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

36

Simplicity 1720718SM

PILOT PIN, Tapered Spacer

$43.99

$

Usually ships in 2-12 days

0

37

Simplicity 1720951SM

ROD & ANCHOR ASSEMBLY, Deflector

$198.99

$

Usually ships in 2-12 days

0

38

Simplicity 1720921SM

LOCKING TAB

$7.49

$

Usually ships in 2-12 days

0

39

Simplicity 1719590SM

SPRING, Extension

$7.99

$

Usually ships in 2-12 days

0

40

Simplicity 1933896SM

LOCKNUT, 10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

41

Simplicity 1960404SM

SCREW, Truss Head, 10-24 x 3/4

$3.99

$

In Stock, only 4 left!

0

42

Simplicity 1927120SM

CAPSCREW, Hex Head, 7/16-14 x 2-1/4

$6.99

$

Usually ships in 2-12 days

0

43

Simplicity 1720737SM

PULLEY & HUB ASSEMBLY

$67.99

$

Usually ships in 2-12 days

0

44

Simplicity 1921959SM

CAPSCREW, Hex Head, 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

45

Simplicity 1720978SM

SPACER, 5/8 x 1

$20.99

$

Usually ships in 2-12 days

0

46

Simplicity 1704628SM

PIN, Spring

$4.49

$

In Stock, Qty 8

0

47

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

48

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

49

Simplicity 1931320SM

CARRIAGE BOLT, 1/4-20 x 1-1/4
(Superseded to 703178)

$3.99

$

In Stock, only 2 left!

0

50

Simplicity 1720749ASM

SUPPORT PLATE

$35.99

$

Usually ships in 2-12 days

0

51

Simplicity 1921719SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

52

Simplicity 1929000SM

CAPSCREW, Hex Head, Taptite,1/4-20 X 5/8
(Superseded to 703583)

$4.99

$

Usually ships in 2-12 days

0

53

Simplicity 1700654ASM

BRACKET, Belt Cover

$15.99

$

Usually ships in 2-12 days

0

54

Simplicity 1721454

COVER, Arbor
(Superseded to 1734303ASM)

$279.99

$

Usually ships in 2-12 days

0

55

Simplicity 1713588SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

56

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

57

Simplicity 1935255SM

PAL NUT, 5/16-18

$3.49

$

In Stock, Qty 7

0

58

Simplicity 1700669SM

KNOB

$19.99

$

Usually ships in 2-12 days

0

59

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

60

Simplicity 1720920ASM

PLATE, Deflector Mounting
(Superseded to 1736095ASM)

$13.99

$

Usually ships in 2-12 days

0

61

Simplicity 1921159SM

CAPSCREW, Hex Head, 1/4-20 x 2-1/4
(Superseded to 704291)

$5.49

$

Usually ships in 2-12 days

0
