1693708 - Simplicity Hose for Hitch & Tube 48", 54" & 60" Mowers Hose, Hitch & Tube Group Parts Diagram

Hose for Hitch & Tube 48", 54" & 60" Mowers

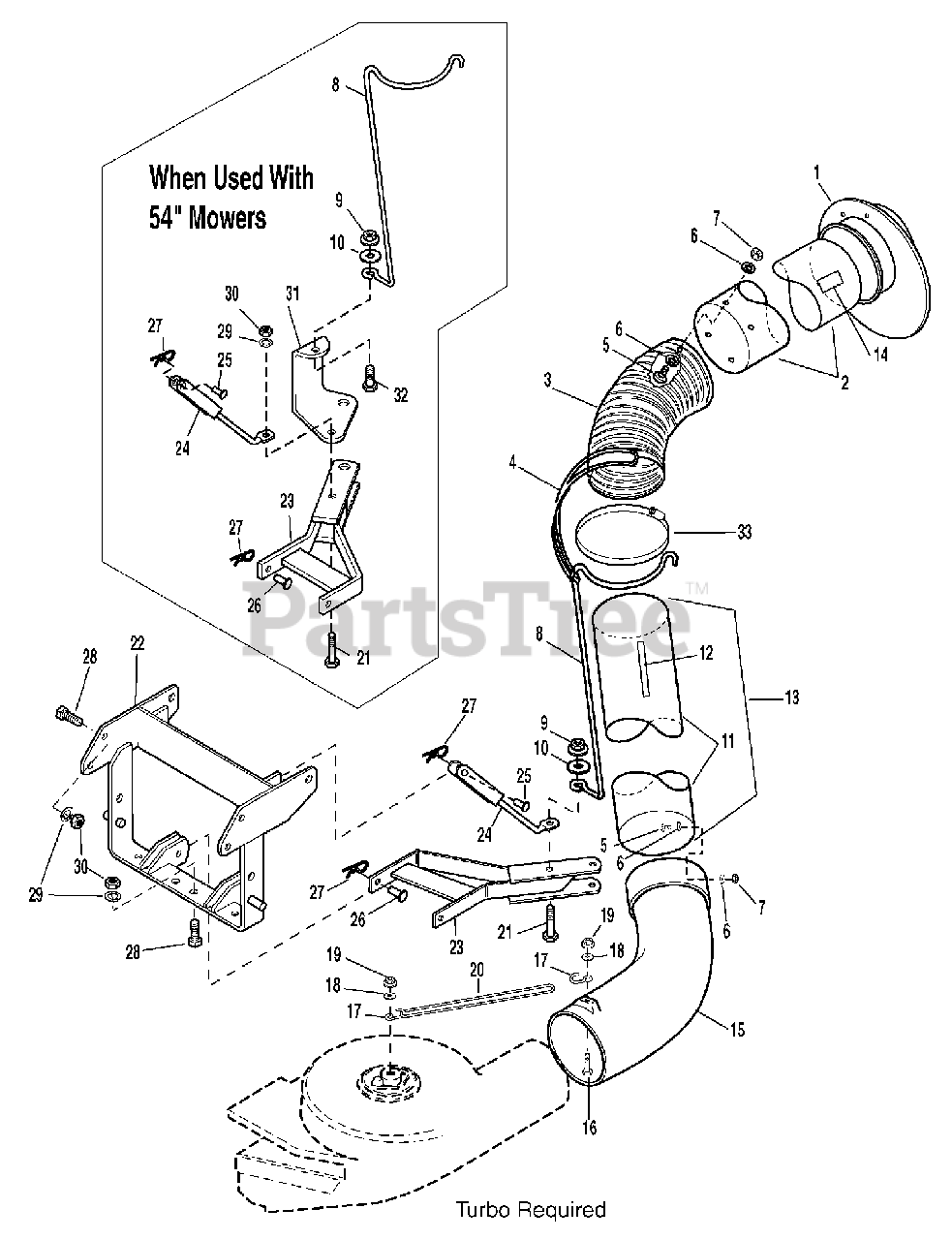

Hose, Hitch & Tube Group Parts Diagram

  • Title

1

Simplicity 1703147SM

CONNECTOR, Cart

$91.99

$

Usually ships in 2-12 days

0

2

Simplicity 1702792SM

TUBE, 51" w/ Cleaning Instructions

$

$

Not available

3

Simplicity 1679895SM

HOSE, Vac, Col, 6 X12

$164.99

$

Usually ships in 2-12 days

0

4

Simplicity 2172744SM

STRAP, Rubber

$18.99

$

Usually ships in 2-12 days

0

5

Simplicity 1930531SM

SCREW, Truss Head Phillips, 10-32 X 1/2

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 1910531SM

WASHER, Plain

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 1928919SM

NUT, Hex Washer Assembly, 10-32

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 1702517SM

SUPPORT, Rod

$

$

Not available

9

Simplicity 1935048SM

FLANGE, Locknut, 1/2-13
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 1926192SM

WASHER, 1/2 -13

$19.99

$

Usually ships in 2-12 days

0

14

Simplicity 1702792SM

TUBE & DECAL ASSEBLY (Incl Ref. 11-13)

$

$

Not available

11

Simplicity 1701864SM

TUBE, 35"

$182.99

$

Usually ships in 2-12 days

0

12

Simplicity 1675766SM

DECAL, Cleaning Instructions

$

$

Not available

13

Simplicity 1721063SM

DECAL, Warning

$14.99

$

Usually ships in 2-12 days

0

15

Simplicity 1702516SM

ELBOW

$

$

Not available

16

Simplicity 1925205SM

CAPSCREW, Hex Head, 5/16-18 X 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

17

Simplicity 1702765SM

HOOK

$10.99

$

Usually ships in 2-12 days

0

18

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 19

0

19

Simplicity 1935048SM

NUT, Hex Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 1665872SM

STRAP, Rubber

$11.99

$

In Stock, only 2 left!

0

21

Simplicity 1960286SM

CAPSCREW, Hex Head, 1/2-13 X 3-1/2

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 1720948ASM

HITCH, Assembly

$224.99

$

Usually ships in 2-12 days

0

23

Simplicity 1720943SM

DRAWBAR, Assembly

$199.99

$

Usually ships in 2-12 days

0

24

Simplicity 1702578SM

SUPPORT, Assembly

$

$

Not available

25

Simplicity 2155037SM

PIN, Round Head, 7/16 X 1-3/4

$12.99

$

In Stock, only 1 left!

0

26

Simplicity 1960116SM

PIN, Yoke, Drilled
(Superseded to 5025479YP)

$3.99

$

In Stock, Qty 16

0

27

Simplicity 1960033SM

CLIP, Spring

$3.49

$

Usually ships in 2-12 days

0

28

Simplicity 1921176SM

CAPSCREW, Hex Head, 1/2-13 X 1-1/4

$4.99

$

Usually ships in 2-12 days

0

29

Simplicity 1916966SM

LOCKWASHER, Spring 1/2
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

30

Simplicity 1916951SM

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

31

Simplicity 1721062SM

EXTENSION, Support
(Superseded to 1721062ASM)

$42.99

$

Usually ships in 2-12 days

0

32

Simplicity 1921525SM

CAPSCREW, Hex Head, 1/2-13 X 1-3/4

$7.49

$

Usually ships in 2-12 days

0

33

Simplicity 1679896SM

CLAMP, Band, 6"

$11.99

$

In Stock, only 1 left!

0
