1693709 - Simplicity Wide Body Cart Collector, Legacy Wide Body Cart Collector - Legacy Parts Diagram

Wide Body Cart Collector, Legacy

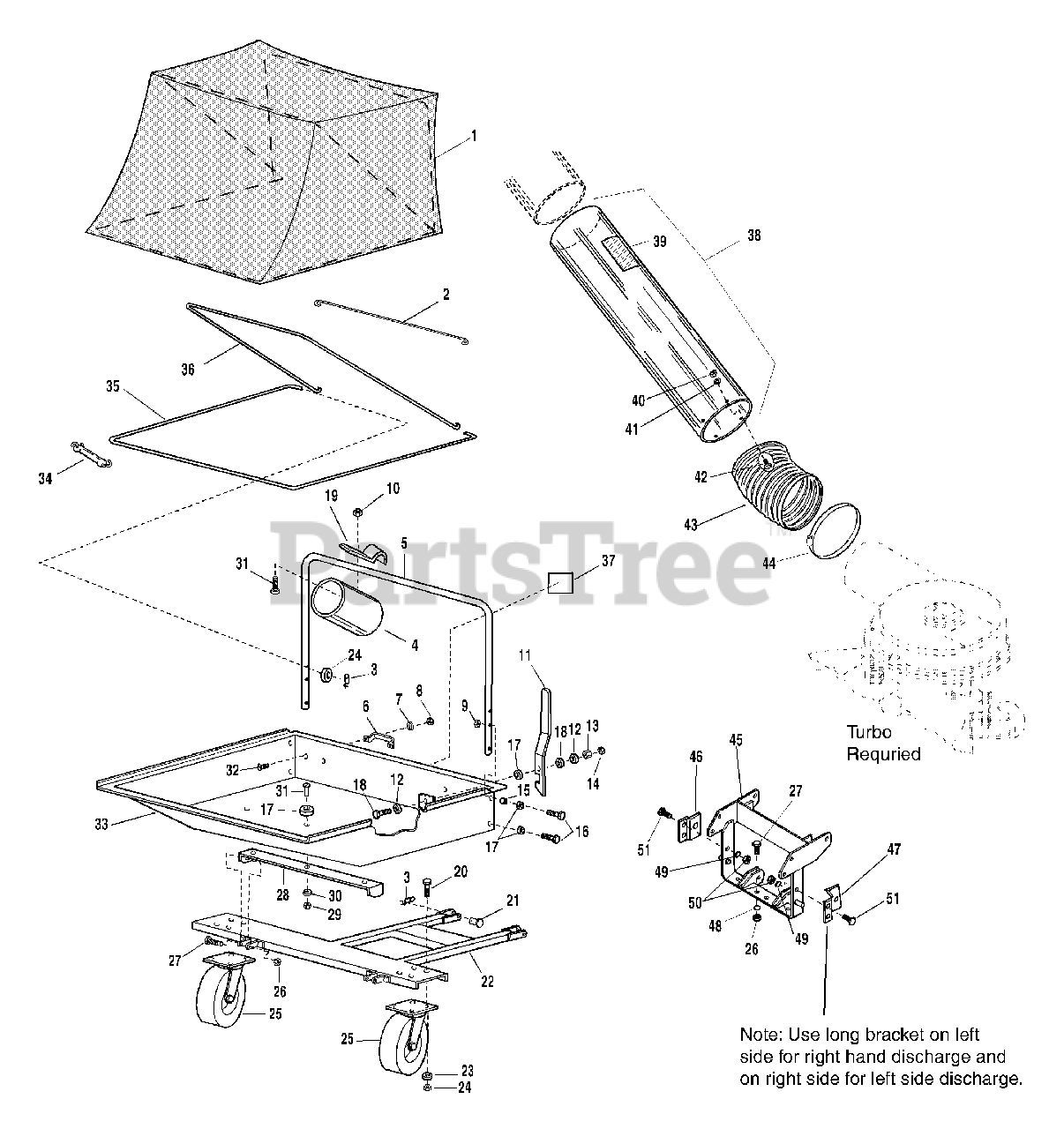

Wide Body Cart Collector - Legacy Parts Diagram

  • Title

1

Simplicity 1726311SM

COVER, Jrco, Cart

$

$

Not available

2

Simplicity 1700763SM

ROD

$23.99

$

Usually ships in 2-12 days

0

3

Simplicity 2176012SM

SAFETY, Pin
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1726312SM

SLEEVE

$119.99

$

Usually ships in 2-12 days

0

5

Simplicity 1700758SM

TUBE, Support

$213.99

$

Usually ships in 2-12 days

0

6

Simplicity 1700768SM

HANDLE, Lift

$10.99

$

Usually ships in 2-12 days

0

7

Simplicity 1916964SM

LOCKWASHER, Spring, 1/4-20
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

8

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

9

Simplicity 1923362SM

NUT, Hex Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

10

Simplicity 1920397SM

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 1708212SM

HANDLE, Latch

$

$

Not available

12

Simplicity 2177649SM

WASHER, Compression

$9.49

$

In Stock, Qty 5

0

13

Simplicity 1917372SM

NUT,Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1920161SM

NUT, Hex Jam, 5/16-18

$4.49

$

In Stock, Qty 10

0

15

Simplicity 1700267SM

SPACER

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 1921677SM

CAPSCREW, Hex Head, 5/16-18 X 1-1/2

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 18

0

18

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 X 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 12

0

19

Simplicity 1708099SM

SLEEVE, Clamp

$14.99

$

Usually ships in 2-12 days

0

20

Simplicity 1921210SM

CAPSCREW, Hex Head 3/8-16 X 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

21

Simplicity 2102004SM

PIN, Rnd, Head, Drilled, 1/2 X 1-1/2

$9.49

$

In Stock, only 3 left!

0

22

Simplicity 1708213SM

FRAME, Jrco, Cart

$524.99

$

Usually ships in 2-12 days

0

23

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 1930645SM

NUT, Hex Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

25

Simplicity 1676892SM

WHEEL Assembly, Swivel

$307.99

$

Usually ships in 2-12 days

0

26

Simplicity 1922134SM

NUT, Hex Centerlock, 1/2-13
(Superseded to 703894)

$3.49

$

In Stock, Qty 10

0

27

Simplicity 1921176SM

CAPSCREW, Hex Head, 1/2-13 X 1-1/4

$4.99

$

Usually ships in 2-12 days

0

28

Simplicity 1700767

BRACKET, "U"

$

$

Not available

29

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

30

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 1918249SM

SCREW, Truss Head Slotted, 5/16-18 X 3/4

$4.99

$

Usually ships in 2-12 days

0

32

Simplicity 1921958SM

CAPSCREW, Hex Head, 1/4-20 X 1/2

$3.99

$

Usually ships in 2-12 days

0

33

Simplicity 1708210SM

BOX, Jrco 44"

$712.99

$

Usually ships in 2-12 days

0

34

Simplicity 1700266SM

STRAP, Rubber

$11.99

$

Usually ships in 2-12 days

0

35

Simplicity 1700762SM

ROD, Frame

$105.99

$

Usually ships in 2-12 days

0

36

Simplicity 1700761SM

ROD, Support

$74.99

$

Usually ships in 2-12 days

0

37

Simplicity 1708120SM

DECAL, Maximum Capacity

$6.49

$

Usually ships in 2-12 days

0

38

Simplicity 1700773SM

TUBE & DECAL ASSEMBLY
(Superseded to 1700774YP)

$231.99

$

Usually ships in 2-12 days

0

39

Simplicity 1675766SM

DECAL, Cleaning Instructions

$

$

Not available

40

Simplicity 1930627SM

NUT, Hex Centerlock, #10-32

$2.99

$

Usually ships in 2-12 days

0

41

Simplicity 1910531SM

WASHER, Plain, #10-32

$3.99

$

Usually ships in 2-12 days

0

42

Simplicity 1930531SM

SCREW, Truss Head Philips, #10-32 X 1/2

$4.49

$

Usually ships in 2-12 days

0

43

Simplicity 1679895SM

HOSE, Vac Col, 6 X 12

$164.99

$

Usually ships in 2-12 days

0

44

Simplicity 1679896SM

CLAMP, Hose 6", Band Type

$11.99

$

In Stock, only 1 left!

0

45

Simplicity 1720948ASM

HITCH ASSEMBLY

$224.99

$

Usually ships in 2-12 days

0

46

Simplicity 1721038SM

BRACKET, Short
(Superseded to 1721038ASM)

$26.99

$

Usually ships in 2-12 days

0

47

Simplicity 1721039SM

BRACKET, Long
(Superseded to 1721039ASM)

$42.99

$

Usually ships in 2-12 days

0

48

Simplicity 1916966SM

LOCKWASHER, Spring, 1/2
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

49

Simplicity 1917373SM

LOCKWASHER, Spring, 5/8

$3.99

$

Usually ships in 2-12 days

0

50

Simplicity 1915726SM

NUT, Hex, 5/8
(Superseded to 703912)

$3.49

$

In Stock, only 1 left!

0

51

Simplicity 1923151SM

CAPSCREW, Hex Head, 5/8 1-1/4

$3.99

$

Usually ships in 2-12 days

0
