1693753 - Simplicity 54" Mower Deck 54" Mower Drive Group Parts Diagram

54" Mower Deck

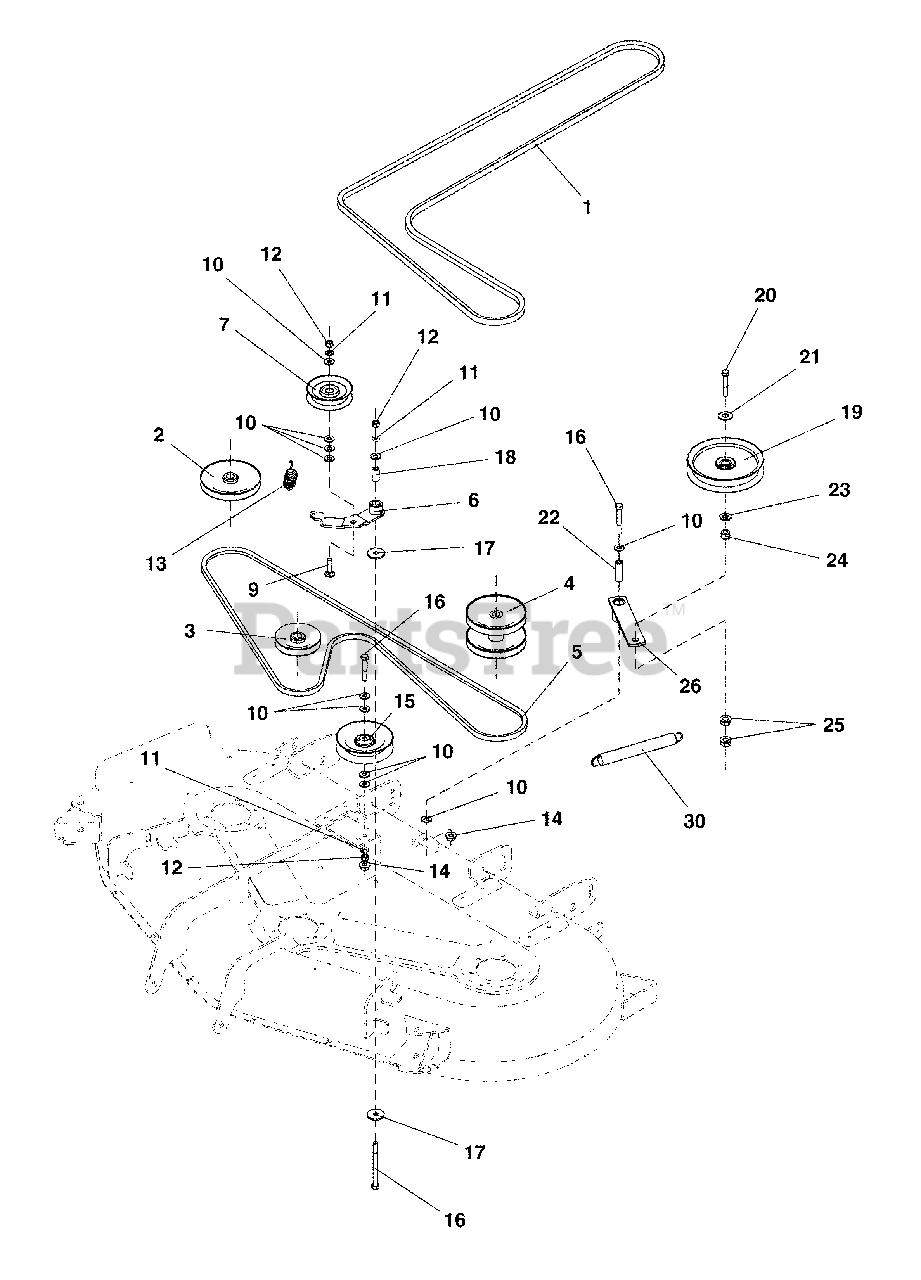

54" Mower Drive Group Parts Diagram

  • Title

1

Simplicity 1721237SM

BELT, PTO

$91.99

$

In Stock, only 1 left!

0

2

Simplicity 1720182ASM

PULLEY ASSEMBLY, RH

$54.99

$

In Stock, only 1 left!

0

3

Simplicity 1679161ASM

PULLEY ASSEMBLY, Center
(Superseded to 1679161SM)

$70.99

$

In Stock, Qty 6

0

4

Simplicity 1721272ASM

PULLEY ASSEMBLY, LH

$170.99

$

Usually ships in 2-12 days

0

5

Simplicity 1671076SM

BELT, Deck Drive

$50.99

$

In Stock, only 2 left!

0

6

Simplicity 1718561SM

IDLER ARM ASSEMBLY

$50.99

$

In Stock, only 1 left!

0

7

Simplicity 1685150SM

PULLEY ASSEMBLY

$34.99

$

In Stock, Qty 8

0

9

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2

$4.49

$

In Stock, Qty 10

0

10

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1916965SM

BEARING, Roller (2 per tire)
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

12

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

13

Simplicity 1656936SM

SPRING, Deck Drive

$9.99

$

In Stock, Qty 18

0

14

Simplicity 1930645SM

NUT, Hex Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

15

Simplicity 1713038SM

PULLEY, Idler

$79.99

$

In Stock, only 1 left!

0

16

Simplicity 1921972SM

CAPSCREW, Hex Hd, 3/8-16 x 2-1/4
(Superseded to 703873)

$4.49

$

In Stock, Qty 6

0

17

Simplicity 1924356SM

WASHER
(Superseded to 703591)

$5.49

$

In Stock, Qty 8

0

18

Simplicity 1674669SM

SPACER

$11.99

$

In Stock, Qty 8

0

19

Simplicity 5103800YP

*PULLEY, FLAT IDLER, 6-3/4"

Note: *If not present, order 5025158SM - washer and 5101103SM - shield.

$54.99

$

In Stock, Qty 6

0

20

Simplicity 1960245SM

CAPSCREW, Hex Hd, 1/2-13 x 3

$5.49

$

Usually ships in 2-12 days

0

21

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, only 1 left!

0

22

Simplicity 1657242SM

SPACER

$10.99

$

Usually ships in 2-12 days

0

23

Simplicity 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

24

Simplicity 1719725SM

SPACER

$9.99

$

Usually ships in 2-12 days

0

25

Simplicity 1930644SM

NUT, Hex Flange Lock, 1/2-13

$3.49

$

In Stock, only 1 left!

0

26

Simplicity 1721279SM

IDLER ARM ASSEMBLY, Complete (Includes Ref 27-29)

$51.99

$

Usually ships in 2-12 days

0

27

Simplicity 1721280

LEVER, Idler

$

$

Not available

28

Simplicity 1676148SM

BUSHING

$5.99

$

In Stock, Qty 10

0

29

Simplicity 2812808SM

GREASE FITTING

$4.49

$

In Stock, only 2 left!

0

30

Simplicity 1664661SM

SPRING

$26.99

$

Usually ships in 2-12 days

0
