1693753 - Simplicity 54" Mower Deck 54" Mower Housing, Cover, Arbor & Blade Group Parts Diagram

54" Mower Deck

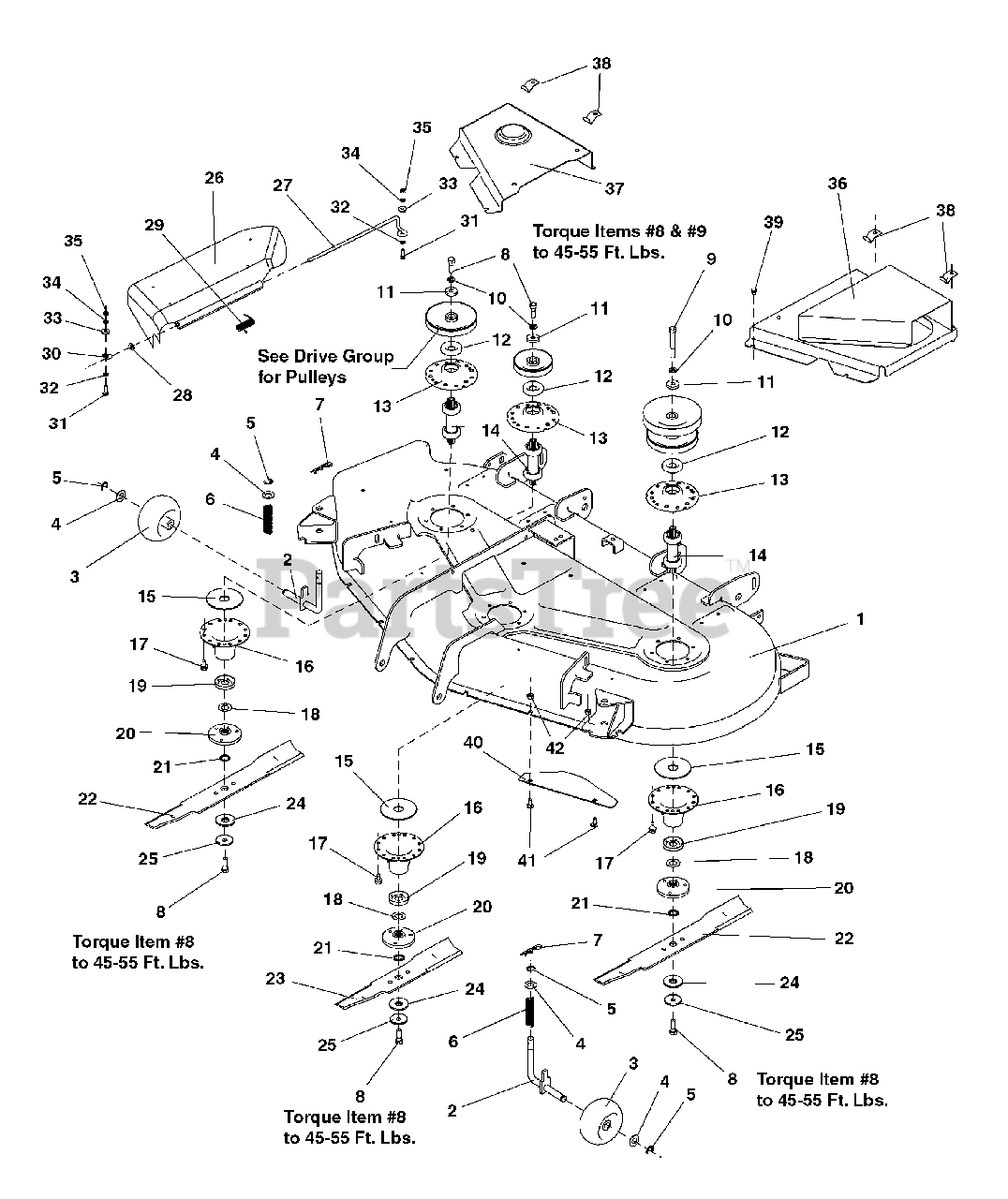

54" Mower Housing, Cover, Arbor & Blade Group Parts Diagram

  • Title

1

Simplicity 1721187

HOUSING, 54" Mower

$

$

Not available

2

Simplicity 1720497A

SPINDLE, Gauge Wheel

$

$

Not available

3

Simplicity 1716353SM

WHEEL, Gauge

$22.99

$

In Stock, Qty 15

0

4

Simplicity 1960020SM

WASHER, Plain, 5/8

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 1703805SM

KLIPRING, 5/8

$3.49

$

In Stock, only 2 left!

0

6

Simplicity 1716346SM

SPRING, Compression

$6.99

$

In Stock, Qty 8

0

7

Simplicity 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, only 1 left!

0

8

Simplicity 2823471SM

CAPSCREW, Hex Hd, 7/16-14 x 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 1960545SM

CAPSCREW, Hex Hd, 7/16-14 x 3-1/4

$8.99

$

In Stock, Qty 5

0

10

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 6

0

11

Simplicity 1933263SM

WASHER, 7/16
(Superseded to 703990)

$6.99

$

In Stock, only 4 left!

0

12

Simplicity 1657969SM

SHIELD, Bearing Upper, Arbor

$7.49

$

In Stock, Qty 16

0

13

Simplicity 1655729ASM

ARBOR HOUSING, Top

$14.99

$

In Stock, Qty 20+

0

14

Simplicity 1676278A

ARBOR SHAFT & BEARING ASSEMBLY, Complete
(Superseded to 1676278SM)

$

$

Not available

15

Simplicity 1707335SM

GASKET

$5.99

$

In Stock, Qty 20+

0

16

Simplicity 1703273ASM

ARBOR HOUSING

$38.99

$

In Stock, Qty 13

0

17

Simplicity 1960541SM

CAPSCREW, Hex Hd, Taptite, 5/16-18 x 3/4

$3.49

$

In Stock, only 1 left!

0

18

Simplicity 1700230SM

WASHER, Shim

$4.99

$

In Stock, Qty 20+

0

19

Simplicity 1700229SM

SHIELD, Grass

$10.99

$

In Stock, Qty 11

0

20

Simplicity 1655777SM

ADAPTER, Blade

$25.99

$

In Stock, Qty 20+

0

21

Simplicity 1657528SM

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1687014SM

BLADE

$28.99

$

Usually ships in 2-12 days

0

23

Simplicity 1687015SM

BLADE

$32.99

$

In Stock, only 4 left!

0

24

Simplicity 1656927SM

WASHER, Spline

$8.99

$

In Stock, Qty 20+

0

25

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

26

Simplicity 1705449SM

DEFLECTOR

$122.99

$

In Stock, Qty 10

0

27

Simplicity 1706709SM

ROD, Deflector, Front

$8.49

$

In Stock, Qty 6

0

28

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 14

0

29

Simplicity 1723938SM

SPRING, Torsion

$6.49

$

Usually ships in 2-12 days

0

30

Simplicity 1704873SM

BRACKET, Hinge

$4.49

$

In Stock, Qty 5

0

31

Simplicity 1931318SM

CARRIAGE BOLT, 1/4-20 x 7/8

$4.49

$

In Stock, only 1 left!

0

32

Simplicity 1960518SM

NUT, Push, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 12

0

33

Simplicity 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

Usually ships in 2-12 days

0

34

Simplicity 1916964SM

LOCKWASHER,1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

35

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

36

Simplicity 1721286SM

COVER, Arbor, LH

$

$

Not available

37

Simplicity 1721285SM

COVER, Arbor, RH

$

$

Not available

38

Simplicity 1720623SM

CLIP, Spring

$8.49

$

Usually ships in 2-12 days

0

39

Simplicity 1929000SM

CAPSCREW, Hex Hd, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

Usually ships in 2-12 days

0

40

Simplicity 1720962ASM

BAFFLE, Front

$14.99

$

In Stock, only 1 left!

0

41

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

42

Simplicity 1935048SM

NUT, Hex Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0
