1693762 - Simplicity 47" Snow Thrower Attachment Gearbox Mounting & Shaft Group Parts Diagram

47" Snow Thrower Attachment

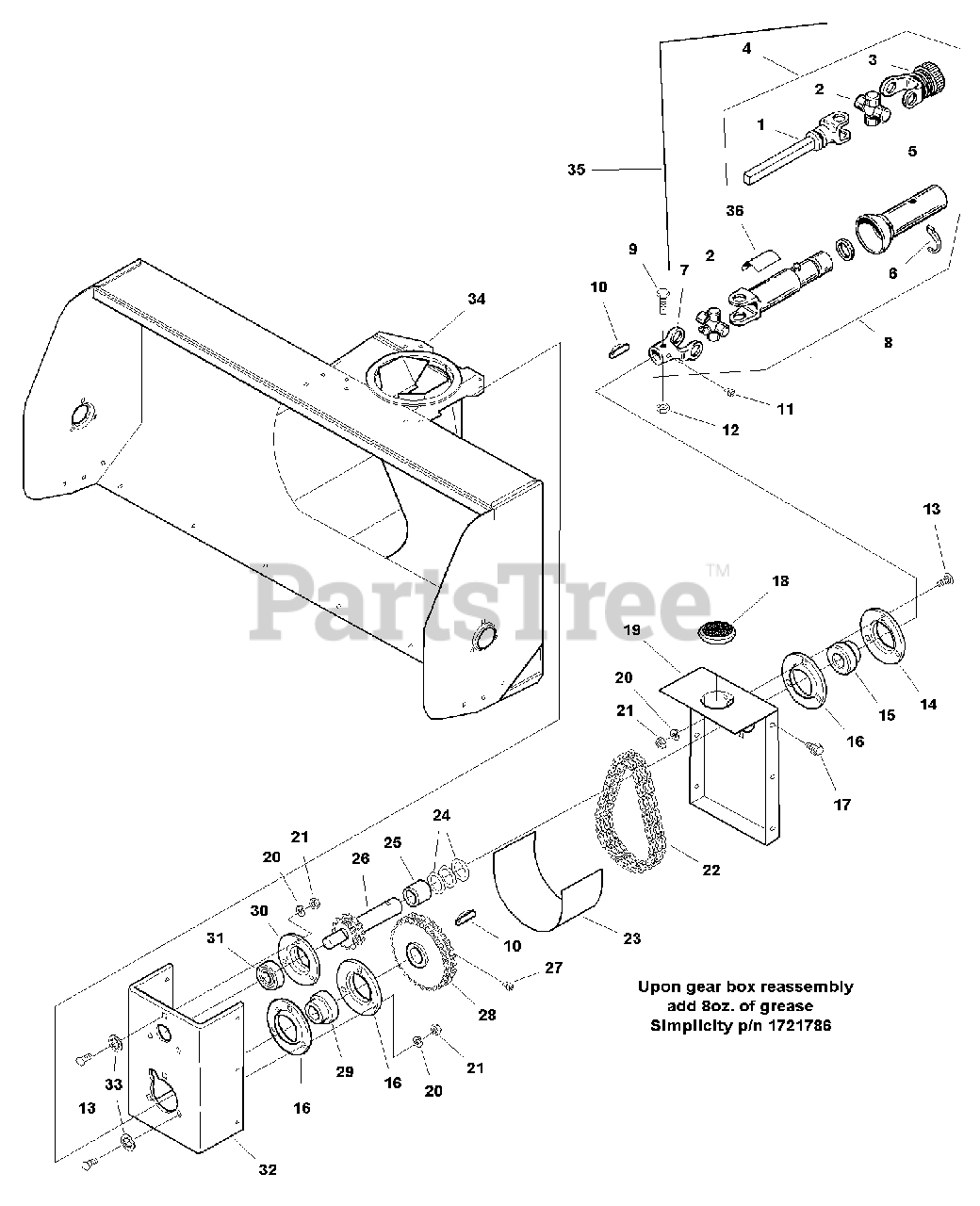

Gearbox Mounting & Shaft Group Parts Diagram

  • Title

1

Simplicity 1718837SM

YOKE & SHAFT ASSEMBLY

$136.99

$

Usually ships in 2-12 days

0

2

Simplicity 1679003SM

CROSS & BEARING KIT

$80.99

$

Usually ships in 2-12 days

0

3

Simplicity 1709350SM

YOKE ASSEMBLY, Spring Lock

$

$

Not available

4

Simplicity 1718838SM

JOINT & SHAFT ASSEMBLY

$426.99

$

Usually ships in 2-12 days

0

5

Simplicity 1709355SM

DRIVE SHAFT INNER GUARD

$146.99

$

Usually ships in 2-12 days

0

6

Simplicity 1709352SM

DRIVE SHAFT NYLON REPAIR KIT

$13.99

$

Usually ships in 2-12 days

0

7

Simplicity 1709358SM

YOKE

$78.99

$

Usually ships in 2-12 days

0

8

Simplicity 1721771SM

DRIVE SHAFT JOINT&TUBE ASSEMBLY

$371.99

$

Usually ships in 2-12 days

0

9

Simplicity 1960506SM

CAPSCREW, Hex Head, 1/4-20 x 1-7/8
(Superseded to 704034)

$5.49

$

In Stock, only 1 left!

0

10

Simplicity 2822138SM

KEY

$9.99

$

In Stock, only 2 left!

0

11

Simplicity 1677029SM

SCREW, Set, Hex Socket, Cup Point, 5/16-18 x 3/8

$3.49

$

In Stock, only 1 left!

0

12

Simplicity 1923358SM

NUT, Hex Center Lock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 1931334SM

CARRIAGE BOLT, 5/16-18 x 7/8
(Superseded to 704065)

$4.49

$

In Stock, Qty 12

0

15

Simplicity 1733105SM

BEARING, Ball

$57.99

$

In Stock, only 2 left!

0

16

Simplicity 2172278ASM

FLANGE

$11.99

$

In Stock, only 2 left!

0

17

Simplicity 1664847SM

SCREW, Hex Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1674020SM

PLUG

$4.49

$

In Stock, Qty 7

0

19

Simplicity 1721761A

COVER
(Superseded to 1721761SM)

$44.99

$

Usually ships in 2-12 days

0

20

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1721766SM

CHAIN, Roller, #40 x 20

$75.99

$

Usually ships in 2-12 days

0

23

Simplicity 1721762SM

COVER

$37.99

$

Usually ships in 2-12 days

0

24

Simplicity 2860208SM

WASHER

$4.99

$

Usually ships in 2-12 days

0

25

Simplicity 1721769SM

SPACER

$33.99

$

Usually ships in 2-12 days

0

26

Simplicity 1721767SM

SHAFT & SPROCKETS ASSEMBLY

$

$

Not available

27

Simplicity 1930544SM

SCREW, Set, Hex, Cup Point
(Superseded to 704033)

$4.49

$

Usually ships in 2-12 days

0

28

Simplicity 1721763SM

SPROCKETS & HUB ASSEMBLY

$323.99

$

Usually ships in 2-12 days

0

29

Simplicity 1709624SM

BEARING

$60.99

$

In Stock, only 2 left!

0

30

Simplicity 1665696SM

FLANGE, Bearing
(Superseded to 1725764SM)

$29.99

$

Usually ships in 2-12 days

0

31

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

32

Simplicity 1721760A

BACKPLATE

$

$

Not available

33

Simplicity 1933988SM

PUSH NUT, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

34

Simplicity 1721782A

HOUSING ASSEMBLY
(Superseded to 1721782ASM)

$1481.99

$

Usually ships in 2-12 days

0

35

Simplicity 1721770SM

SHAFT ASSEMBLY (includes ref. nos. 1-3, 5-7)

$512.99

$

Usually ships in 2-12 days

0

36

Simplicity 1709353SM

DECAL, Warning, Rotating Drive Shaft

$

$

Not available
