1693866 - Simplicity Lift Lever, Snow Thrower & Dozer Blade Lift Lever Group Parts Diagram

Lift Lever, Snow Thrower & Dozer Blade

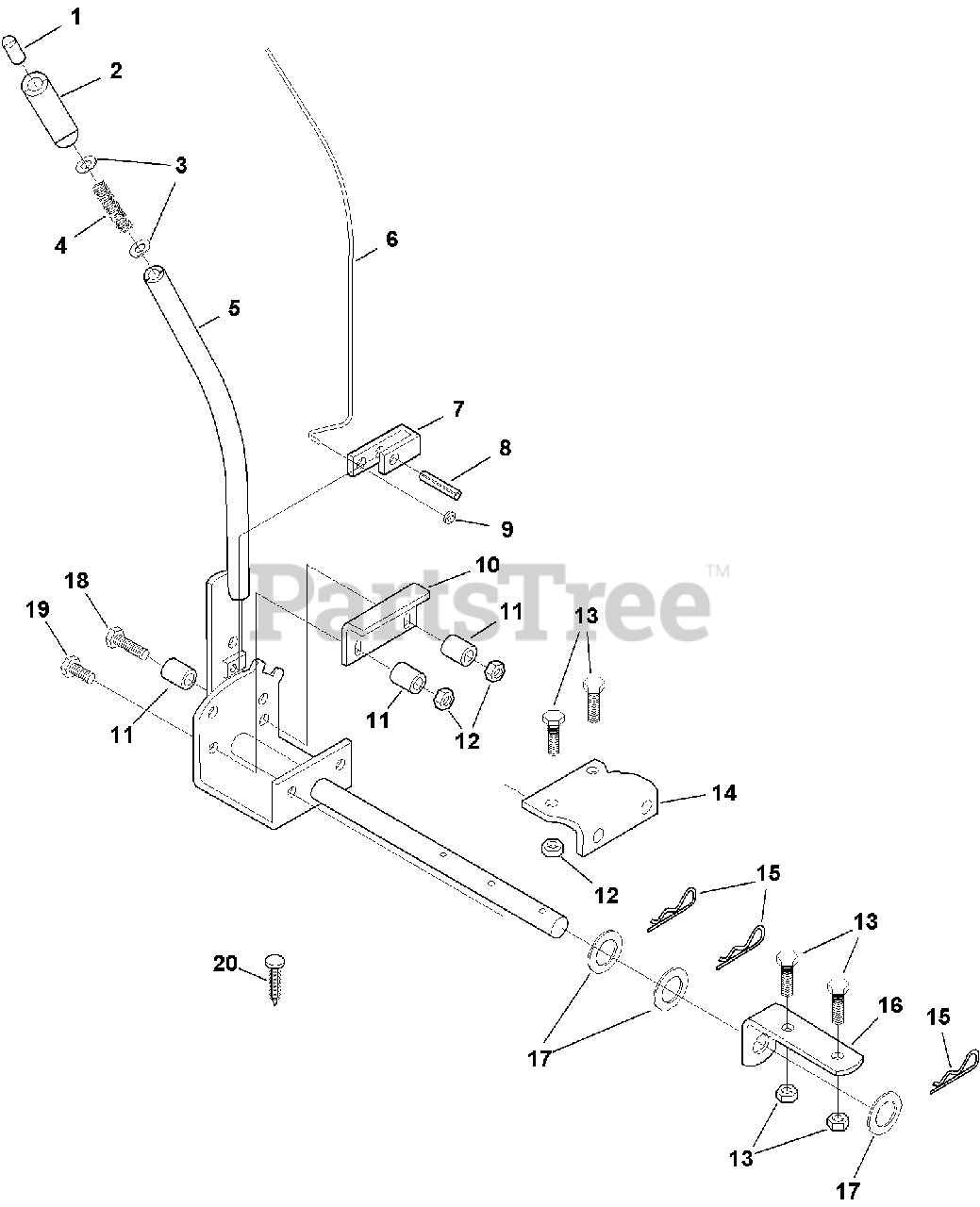

Lift Lever Group Parts Diagram

  • Title

1

Simplicity 1650157SM

BUTTON

$7.49

$

Usually ships in 2-12 days

0

2

Simplicity 1713995SM

GRIP, Black

$12.99

$

In Stock, only 1 left!

0

3

Simplicity 1918265SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1723321SM

SPRING, Compression

$6.99

$

In Stock, Qty 11

0

5

Simplicity 1722121ASM

QUADRANT & LEVER ASSEMBLY

$

$

Not available

6

Simplicity 1721959SM

ROD

$18.99

$

Usually ships in 2-12 days

0

7

Simplicity 1721999SM

LATCH, Lift Lever
(Superseded to 1721999ASM)

$46.99

$

Usually ships in 2-12 days

0

8

Simplicity 1927609SM

ROLL PIN, 3/8 x 1

$3.49

$

In Stock, Qty 6

0

9

Simplicity 1934953SM

PUSH NUT

$3.49

$

In Stock, only 1 left!

0

10

Simplicity 1704715SM

BRACKET
(Superseded to 1704715ASM)

$25.99

$

Usually ships in 2-12 days

0

11

Simplicity 1705249SM

SPACER

$2.99

$

Usually ships in 2-12 days

0

12

Simplicity 1919438SM

NUT, ESNA, Hex Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 14

0

13

Simplicity 1923325SM

CAPSCREW, Hex Head, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 20+

0

14

Simplicity 1704713ASM

BRACKET & PINS ASSEMBLY

$91.99

$

Usually ships in 2-12 days

0

15

Simplicity 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 5

0

16

Simplicity 1704712ASM

BRACKET

$12.99

$

Usually ships in 2-12 days

0

17

Simplicity 1911386SM

WASHER
(Superseded to 703992)

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 1922127SM

CAPSCREW, Hex Head, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

In Stock, only 3 left!

0

19

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 15

0

20

Simplicity 1704351SM

FASTNER, Footrest Mat

$4.99

$

In Stock, only 4 left!

0
