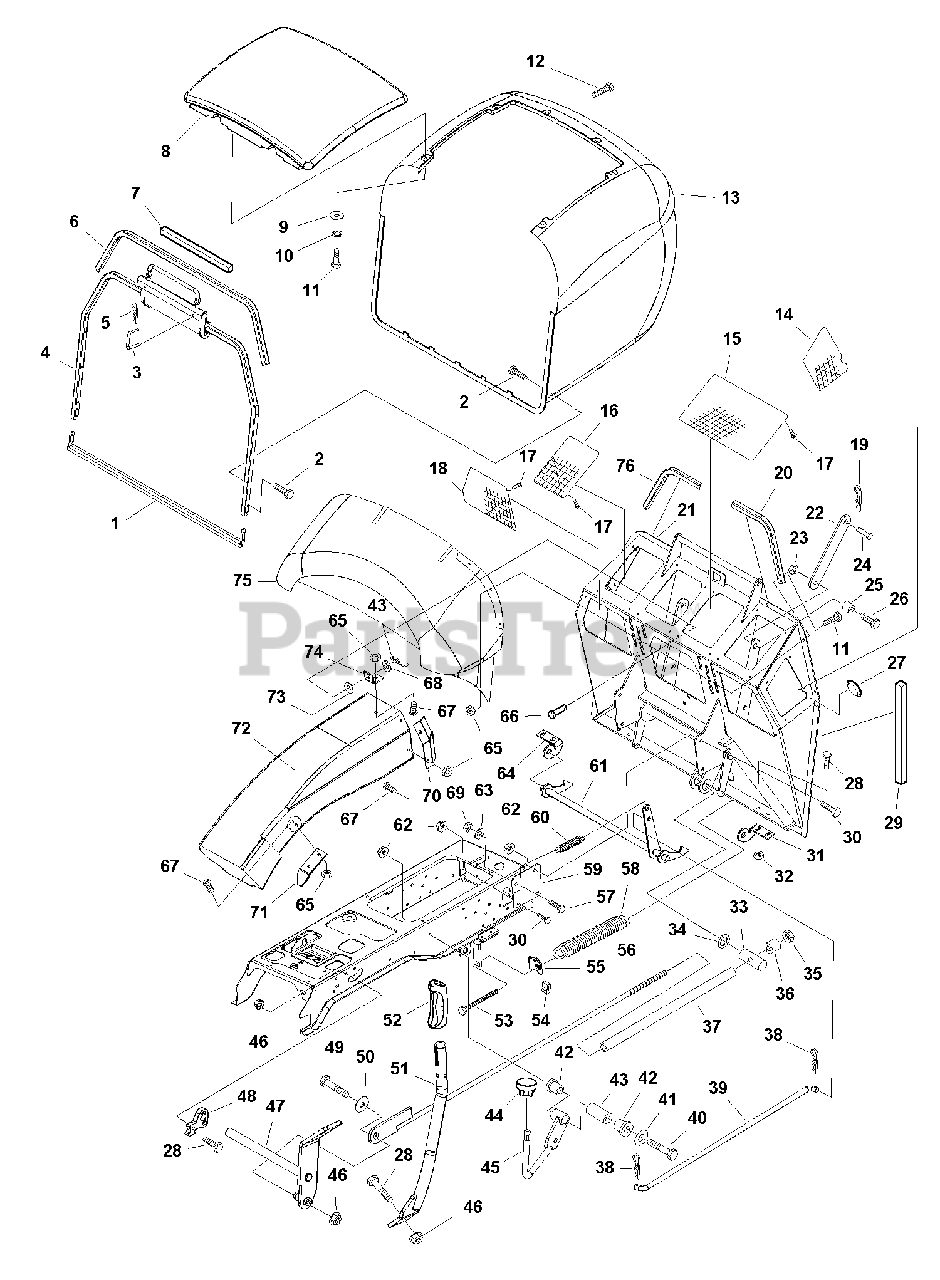

1693970 - Simplicity Baron 40" Lawn Tractor, 18hp Hopper Group Parts Diagram

Baron 40" Lawn Tractor, 18hp

Hopper Group Parts Diagram

  • Title

1

Simplicity 1722590SM

ANGLE & BAR ASSEMBLY
(Superseded to 1722590ASM)

$51.99

$

Usually ships in 2-12 days

0

2

Simplicity 1925003SM

CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 1723415SM

PIN, Retaining

$39.99

$

Usually ships in 2-12 days

0

4

Simplicity 1723266SM

FRAME ASSEMBLY, Hopper

$

$

Not available

5

Simplicity 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, Qty 10

0

6

Simplicity 1723957SM

SEAL, Hopper Frame

$9.99

$

Usually ships in 2-12 days

0

7

Simplicity 1723956SM

SEAL, Hopper Lid

$8.49

$

Usually ships in 2-12 days

0

8

Simplicity 1686986SM

LID, Plastic Hopper

$188.99

$

Usually ships in 2-12 days

0

9

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

10

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

11

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

12

Simplicity 1960404SM

SCREW, Phillips Head, #10-24 x 3/4

$3.99

$

In Stock, only 4 left!

0

13

Simplicity 1723865SM

HOPPER, Plastic, w/Screen

$455.99

$

Usually ships in 2-12 days

0

14

Simplicity 1723644SM

SCREEN, Side, 5" x 6.2"

$2.99

$

Usually ships in 2-12 days

0

15

Simplicity 1723643SM

SCREEN, Top Middle, 7-1/2" x 11-3/4"

$10.99

$

Usually ships in 2-12 days

0

16

Simplicity 1723744SM

SCREEN, Top Side, 5-1/2" x 7-3/4"

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1704351SM

FASTNER, Panel

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 1723642SM

SCREEN, Main, 7" x 9"

$4.49

$

Usually ships in 2-12 days

0

19

Simplicity 1960033SM

CLIP, Spring

$3.49

$

In Stock, Qty 5

0

20

Simplicity 1723955SM

BRACKET, Hopper Seal, LH

$7.49

$

Usually ships in 2-12 days

0

21

Simplicity 1723647SM

BACKPLATE ASSEMBLY

$

$

Not available

22

Simplicity 1723188SM

LINK

$5.99

$

Usually ships in 2-12 days

0

23

Simplicity 1919439SM

NUT, Hex Lock ESNA, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 2102004SM

PIN, Round Head, Drilled, 1/2 x 1-1/2

$9.49

$

In Stock, only 3 left!

0

25

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 4 left!

0

26

Simplicity 1960032SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$5.49

$

In Stock, Qty 9

0

27

Simplicity 1700884

PLUG

$

$

Not available

28

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

29

Simplicity 1723958SM

SEAL, Hopper Sides

$5.49

$

Usually ships in 2-12 days

0

30

Simplicity 1934654SM

CAPSCREW, Hex Head Whiz Lock, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, Qty 17

0

31

Simplicity 1723182ASM

BRACKET, Latch LH

$12.99

$

Usually ships in 2-12 days

0

32

Simplicity 1931277SM

NUT, Hex Flange Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

33

Simplicity 1723211SM

TRUNNION

$11.99

$

Usually ships in 2-12 days

0

34

Simplicity 1723924SM

WASHER

$

$

Not available

35

Simplicity 1913744SM

NUT, Hex Jam, 1/2-13

$4.99

$

Usually ships in 2-12 days

0

36

Simplicity 1723163SM

SPACER

$7.99

$

Usually ships in 2-12 days

0

37

Simplicity 1723923SM

TUBE

$

$

Not available

38

Simplicity 1960074SM

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

39

Simplicity 1723190SM

ROD

$13.99

$

Usually ships in 2-12 days

0

40

Simplicity 1922130SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/2
(Superseded to 703872)

$4.99

$

In Stock, Qty 8

0

41

Simplicity 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

42

Simplicity 1676148SM

BUSHING

$5.99

$

In Stock, Qty 10

0

43

Simplicity 1669105SM

SPACER

$13.99

$

In Stock, only 4 left!

0

44

Simplicity 1719940SM

KNOB

$12.99

$

Usually ships in 2-12 days

0

45

Simplicity 1721360SM

ROD & TUBE ASSEMBLY
(Superseded to 1721360AYP)

$50.99

$

Usually ships in 2-12 days

0

46

Simplicity 1960636SM

NUT, Hex KEPS, 5/16-18

$4.99

$

In Stock, only 1 left!

0

47

Simplicity 1723602SM

HANDLE & SHAFT ASSEMBLY

$42.99

$

Usually ships in 2-12 days

0

48

Simplicity 1721581SM

QUADRANT

$11.99

$

Usually ships in 2-12 days

0

49

Simplicity 1921160SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/4

$4.99

$

Usually ships in 2-12 days

0

50

Simplicity 1919381SM

WASHER
(Superseded to 703298)

$4.49

$

In Stock, Qty 13

0

51

Simplicity 1724065SM

HANDLE & BRACKET ASSEMBLY
(Superseded to 1724065ASM)

$56.99

$

Usually ships in 2-12 days

0

52

Simplicity 1723359SM

GRIP

$10.99

$

Usually ships in 2-12 days

0

53

Simplicity 1722357SM

CAPSCREW, Hex Washer Head, 5/16-18 x 4-1/2

$17.99

$

Usually ships in 2-12 days

0

54

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, Qty 7

0

55

Simplicity 1723499SM

RETAINER

$8.49

$

In Stock, only 3 left!

0

56

Simplicity 1723154SM

ROD & BRACKET ASSEMBLY

$34.99

$

Usually ships in 2-12 days

0

57

Simplicity 1923114SM

CAPSCREW, Hex Head, 1/2-13 x 1

$3.99

$

In Stock, only 2 left!

0

58

Simplicity 1723412SM

SPRING, Extension

$58.99

$

In Stock, only 1 left!

0

59

Simplicity 1723455SM

SUPPORT, Backplate
(Superseded to 1723455ASM)

$7.49

$

Usually ships in 2-12 days

0

60

Simplicity 1721995SM

SPRING, Extension

$8.49

$

In Stock, only 1 left!

0

61

Simplicity 1723856SM

SHAFT & LATCH ASSEMBLY

$38.99

$

Usually ships in 2-12 days

0

62

Simplicity 1928352SM

NUT, Hex Flange Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 9

0

63

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

64

Simplicity 1723181ASM

BRACKET, Latch, RH

$12.99

$

Usually ships in 2-12 days

0

65

Simplicity 1920397SM

NUT, Hex Lock ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

66

Simplicity 1723683SM

PIN

$4.99

$

Usually ships in 2-12 days

0

67

Simplicity 1718741SM

SCREW, Torx Head, 1/4-20 x 5/8

$3.49

$

Usually ships in 2-12 days

0

68

Simplicity 1919326SM

WASHER

$4.49

$

In Stock, Qty 18

0

69

Simplicity 1916951SM

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

70

Simplicity 1723650SM

DEFLECTOR, Grass

$6.99

$

Usually ships in 2-12 days

0

71

Simplicity 1722881SM

RETAINER

$6.99

$

Usually ships in 2-12 days

0

72

Simplicity 1722578SM

CHUTE

$128.99

$

Usually ships in 2-12 days

0

73

Simplicity 1933988SM

NUT, Push
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

74

Simplicity 1723363SM

BRACKET

$5.99

$

Usually ships in 2-12 days

0

75

Simplicity 1723231SM

TRANSITION

$55.99

$

Usually ships in 2-12 days

0

76

Simplicity 1723797SM

BRACKET, Hopper Seal, RH

$7.49

$

Usually ships in 2-12 days

0
