1694047 - Simplicity 40" Mower Deck 40" Mower Deck - Belt, Idler Arm & Hitch Parts Diagram

40" Mower Deck

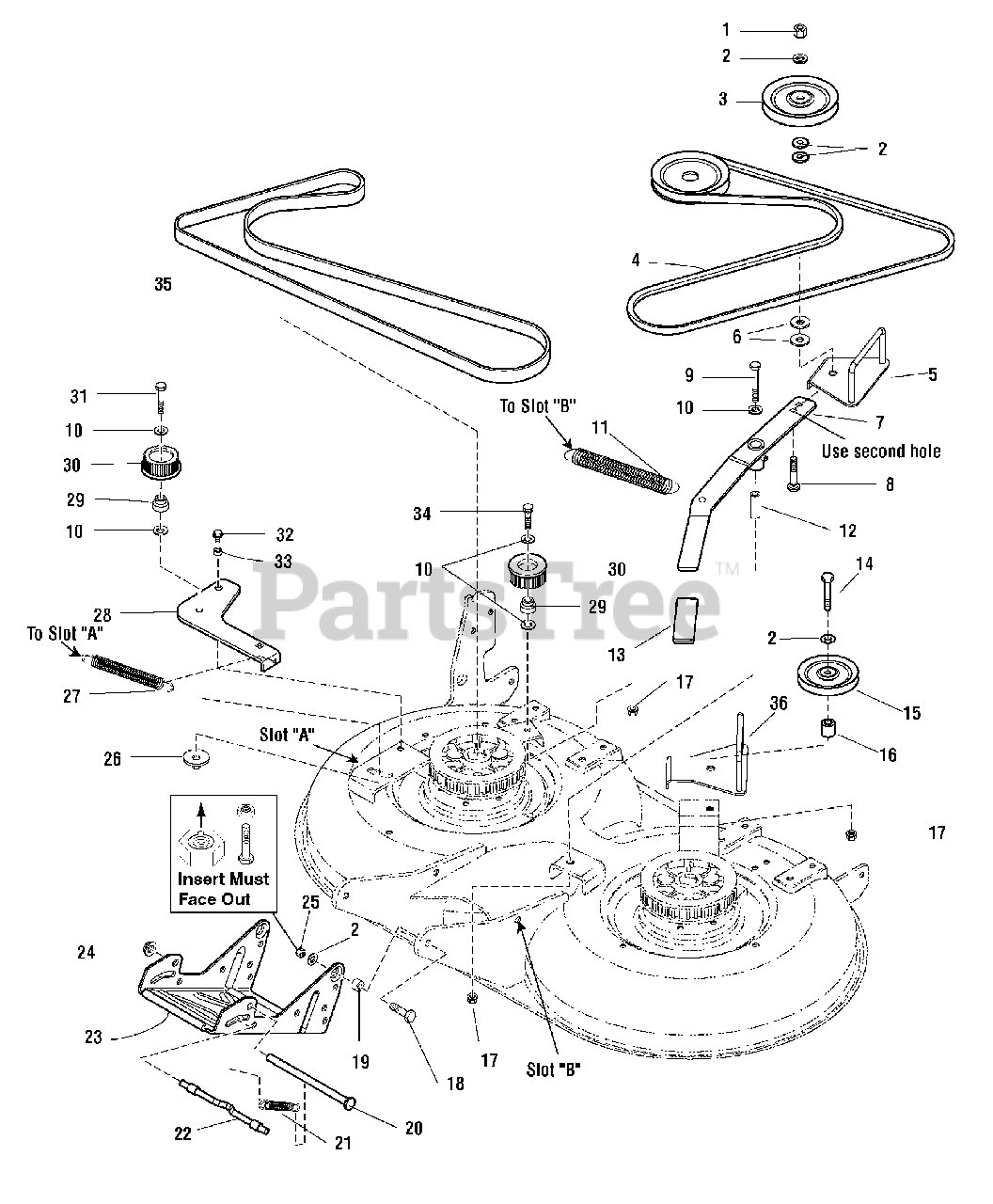

40" Mower Deck - Belt, Idler Arm & Hitch Parts Diagram

  • Title
1

Simplicity 1919439SM

NUT, Hex Lock Esna Light, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 1725408SM

PULLEY, Idler, 4" O.D.

$43.59

$

In Stock, only 2 left!

0

4

Simplicity 1723391SM

V-BELT, Arbor Drive

$41.91

$

In Stock, Qty 6

0

5

$

$

Not available

6

Simplicity 1960534SM

WASHER, 3/8

$

$

Not available

7

Simplicity 1724835SM

ARM ASSEMBLY, Idler with Bushings & Fitting

$

$

Not available

8

Simplicity 1960615SM

CARRIAGE BOLT, 3/8-16 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 1928957SM

CAPSCREW, Hex Head, 3/8-16 x 2-3/4 G8

$5.58

$

In Stock, Qty 8

0

10

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 8

0

11

Simplicity 1715435SM

SPRING, Extension

$8.82

$

In Stock, Qty 20+

0

12

Simplicity 1657242SM

SPACER, Hardened

$9.27

$

In Stock, only 3 left!

0

13

Simplicity 1719965SM

GRIP, Black Vinyl for Handle

$4.99

$

Usually ships in 2-12 days

0

14

Simplicity 1922130SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/4
(Superseded to 703872)

$4.49

$

In Stock, Qty 14

0

15

Simplicity 1723952SM

PULLEY, Idler, 4" O.D.

$40.24

$

Usually ships in 2-12 days

0

$5.24

$

In Stock, Qty 14

0

17

Simplicity 1928352SM

NUT, Hex Flange Whiz Lock, Large, 3/8-16
(Superseded to 703793)

$3.99

$

In Stock, Qty 18

0

18

Simplicity 1921969SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/2
(Superseded to 703406)

$4.49

$

In Stock, Qty 12

0

$

$

Not available

20

Simplicity 1713578SM

ROD, Mower Hitch

$13.96

$

In Stock, only 2 left!

0

21

Simplicity 2156302

SPRING, Extension
(Superseded to 2156302SM)

$5.58

$

In Stock, only 2 left!

0

22

$7.03

$

In Stock, only 3 left!

0

23

Simplicity 1720044ASM

HITCH, Mower
(Superseded to 1760192AYP)

$142.53

$

Usually ships in 2-12 days

0

24

Simplicity 1960519SM

NUT, Push
(Superseded to 703179)

$2.99

$

In Stock, Qty 8

0

25

Simplicity 2860681SM

NUT, Hex Lock ALUM Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

26

Simplicity 1721425SM

WASHER & NUT ASSEMBLY, 3/8 x 1-1/2

$

$

Not available

27

Simplicity 1674671SM

SPRING, Extension

$22.24

$

In Stock, only 1 left!

0

28

Simplicity 1726387

ARM, Idler
(Superseded to 1726387ASM)

$54.77

$

Usually ships in 2-12 days

0

$21.34

$

Usually ships in 2-12 days

0

30

Simplicity 1719562SM

PULLEY, Idler, 22 Teeth

$98.37

$

In Stock, only 1 left!

0

31

Simplicity 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 4 left!

0

32

Simplicity 1930601SM

CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1/2
(Superseded to 703949)

$3.99

$

In Stock, Qty 20+

0

$5.58

$

In Stock, only 3 left!

0

34

Simplicity 1921971SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.49

$

In Stock, Qty 14

0

35

Simplicity 1721118SM

BELT, Timing

$150.92

$

In Stock, only 2 left!

0

36

$43.03

$

Usually ships in 2-12 days

0
