1694146 - Simplicity Hitch, Subframe Hitch - Sub Frame Parts Diagram

Hitch, Subframe

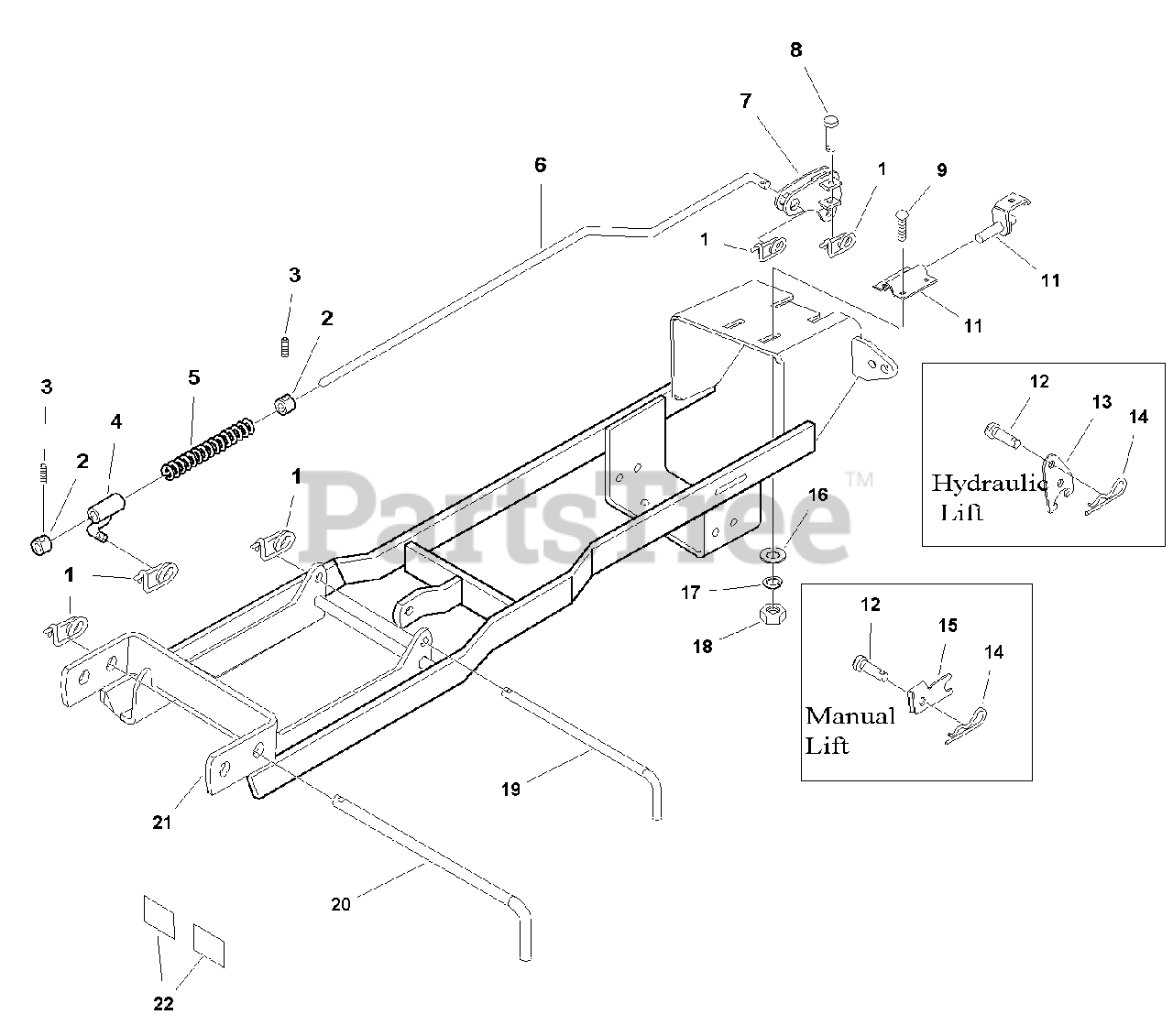

Hitch - Sub Frame Parts Diagram

  • Title

1

Simplicity 2176012SM

RETAINER, Pin
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 1729258SM

COLLAR, Set
(Superseded to 5010477YP)

$9.49

$

Usually ships in 2-12 days

0

3

Simplicity 1928721SM

SCREW, Set, Square Head, Cup Point, 5/16-18 x 1/2, GR 8

$4.99

$

In Stock, Qty 11

0

4

Simplicity 1723115SM

TUBE & PIN ASSEMBLY

$57.99

$

Usually ships in 2-12 days

0

5

Simplicity 2171011SM

SPRING, Compression

$80.99

$

In Stock, only 1 left!

0

6

Simplicity 1722946SM

ROD, Rear Lift

$115.99

$

In Stock, only 1 left!

0

7

Simplicity 1724025

LEVER ASSEMBLY
(Superseded to 1724025ASM)

$155.99

$

Usually ships in 2-12 days

0

8

Simplicity 2105249SM

PIN, Round Head,3/8 x 2-3/8

$17.99

$

Usually ships in 2-12 days

0

9

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 10

0

10

Simplicity 1723292ASM

SHAFT & HOOK ASSEMBLY

$40.99

$

Usually ships in 2-12 days

0

11

Simplicity 1653768ASM

CLAMP, Wheel Support

$13.99

$

Usually ships in 2-12 days

0

12

Simplicity 1722819SM

PIN, Flat Head

$6.99

$

In Stock, Qty 20+

0

13

Simplicity 1722469SM

PLATE, Presser Lock

$16.99

$

Usually ships in 2-12 days

0

14

Simplicity 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1722470SM

PLATE, Pressure Lock

$

$

Not available

16

Simplicity 1919381SM

WASHER
(Superseded to 703298)

$4.49

$

In Stock, only 4 left!

0

17

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, Qty 8

0

18

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 8

0

19

Simplicity 1715758SM

ROD, Latch

$

$

Not available

20

Simplicity 1723309SM

ROD, Hitch

$41.99

$

Usually ships in 2-12 days

0

21

Simplicity 1724083

PUSH BAR ASSEMBLY
(Superseded to 1724083ASM)

$

$

Not available

22

Simplicity 1701600SM

REFLECTOR, Red

$12.99

$

Usually ships in 2-12 days

0
