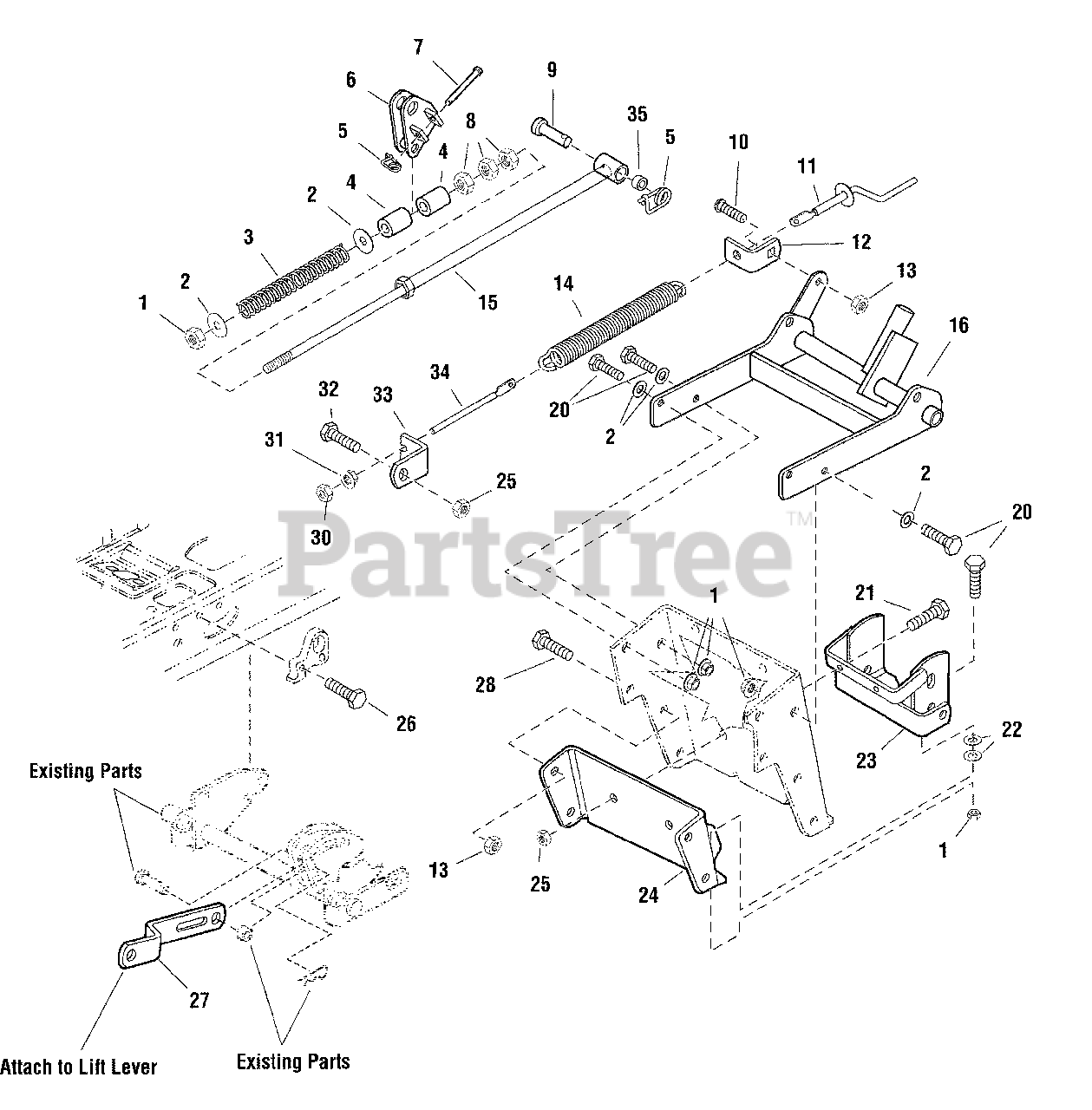

1694151 - Simplicity 36" Tiller Attachment Lift Group Parts Diagram

36" Tiller Attachment

Lift Group Parts Diagram

  • Title

1

Simplicity 1960355

NUT, Hex Lock ESNA, 1/2-13
(Superseded to 703567)

$4.49

$

In Stock, only 2 left!

0

2

Simplicity 1918431

WASHER, 1/2
(Superseded to 704011)

$4.49

$

In Stock, only 1 left!

0

3

Simplicity 2171011

SPRING, Compression
(Superseded to 2171011SM)

$75.99

$

In Stock, only 1 left!

0

4

Simplicity 1668662

SPACER, .52 x .738 x 1.27
(Superseded to 1668662SM)

$32.99

$

Usually ships in 2-12 days

0

5

Simplicity 2176012

RETAINER, Pin
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1723790A

LIFT LEVER ASSEMBLY
(Superseded to 1723790ASM)

$102.99

$

Usually ships in 2-12 days

0

7

Simplicity 2105249

PIN, Round Head Drilled, 3/8 x 2-3/8
(Superseded to 2105249SM)

$16.99

$

Usually ships in 2-12 days

0

8

Simplicity 1916951

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

9

Simplicity 1960277

PIN, Yoke, Drilled, 5/8 x 1-13/16
(Superseded to 1960277SM)

$11.99

$

Usually ships in 2-12 days

0

10

Simplicity 1931350

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, Qty 5

0

11

Simplicity 1723840A

CRANK ASSEMBLY
(Superseded to 1723840ASM)

$292.99

$

Usually ships in 2-12 days

0

12

Simplicity 1723841A

CRANK BRACKET
(Superseded to 1723841ASM)

$75.99

$

Usually ships in 2-12 days

0

13

Simplicity 1919439

NUT, Hex Lock ESNA, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1723412

SPRING, Extension
(Superseded to 1723412SM)

$58.99

$

In Stock, only 1 left!

0

15

Simplicity 1686941

LIFT ROD ASSEMBLY
(Superseded to 1686941SM)

$

$

Not available

16

Simplicity 1723107A

HITCH ASSEMBLY
(Superseded to 1723107ASM)

$347.99

$

Usually ships in 2-12 days

0

20

Simplicity 1920328

CAPSCREW, Hex Head, 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

In Stock, only 1 left!

0

21

Simplicity 1921977

CAPSCREW, Hex Head, 1/2-13 x 1-1/4
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 14

0

22

Simplicity 1960170

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

23

Simplicity 1707470A

HITCH ASSEMBLY BRACKET
(Superseded to 1707470ASM)

$205.99

$

Usually ships in 2-12 days

0

24

Simplicity 1722608A

HITCH SUPPORT
(Superseded to 1722608ASM)

$84.99

$

Usually ships in 2-12 days

0

25

Simplicity 1919438

NUT, Hex Lock ESNA, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 8

0

26

Simplicity 1926149

CAPSCREW, Hex Head, 5/16-18 x 1, G8
(Superseded to 1926149SM)

$4.49

$

Usually ships in 2-12 days

0

27

Simplicity 1723795A

BAR, Lift Link
(Superseded to 1723795ASM)

$16.99

$

Usually ships in 2-12 days

0

28

Simplicity 1921210

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

30

Simplicity 1924650

NUT, Hex Centerlock Jam, 1/2-13
(Superseded to 1924650SM)

$3.49

$

Usually ships in 2-12 days

0

31

Simplicity 1960515

NUT, Hex Flange, 1/2-13
(Superseded to 1960515SM)

$5.49

$

Usually ships in 2-12 days

0

32

Simplicity 1921333

CAPSCREW, Hex Hed, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

33

Simplicity 1723842A

SPRING ANCHOR BRACKET
(Superseded to 1723842ASM)

$26.99

$

Usually ships in 2-12 days

0

34

Simplicity 1723844

ROD, Threaded
(Superseded to 1723844SM)

$37.99

$

Usually ships in 2-12 days

0

35

Simplicity 2175647

SPACER, 1/2
(Superseded to 2175647SM)

$13.99

$

Usually ships in 2-12 days

0
