1694238 - Simplicity 42" Snow Thrower Attachment Auger Housing Group - 42" Parts Diagram

42" Snow Thrower Attachment

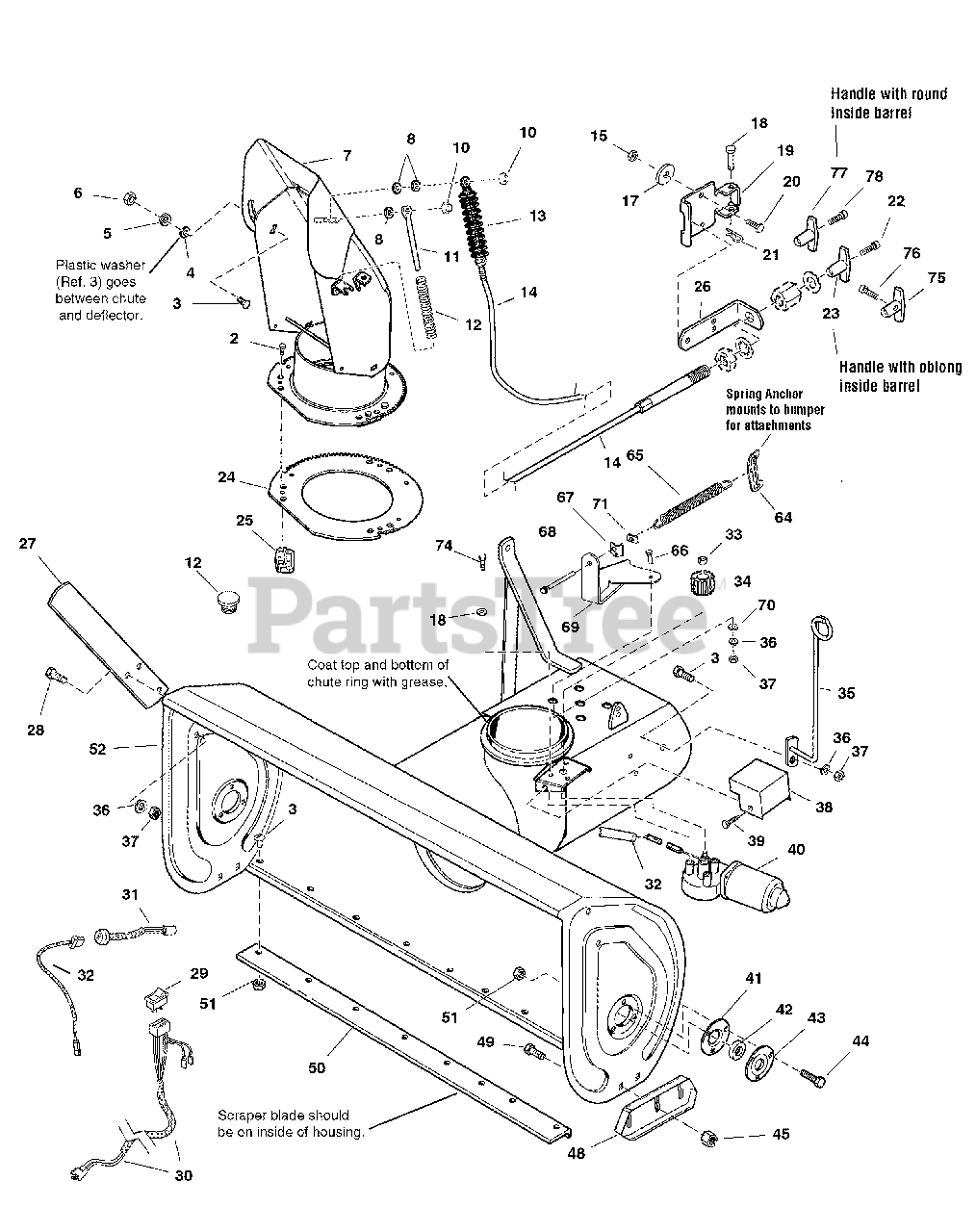

Auger Housing Group - 42" Parts Diagram

  • Title

2

Simplicity 1960001SM

SCREW, Hex Washer Head, Plastite, #10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 2860210SM

WASHER, Nylon

$4.49

$

In Stock, Qty 5

0

5

Simplicity 1919326SM

WASHER, 5/17, Black

$4.49

$

In Stock, Qty 18

0

6

Simplicity 1919438SM

NUT, Hex Lock ESNA, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 9

0

7

Simplicity 1723948A

CHUTE & DEFLECTOR ASSEMBLY

$

$

Not available

8

Simplicity 1702219SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

10

Simplicity 1960126SM

NUT, Push, Black
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

11

Simplicity 1611945SM

ROD

$13.99

$

In Stock, only 1 left!

0

12

Simplicity 1724553SM

CAP, Plug Black Poly

$4.49

$

In Stock, only 1 left!

0

12

Simplicity 1611939SM

SPRING, Compression

$10.99

$

In Stock, only 1 left!

0

13

Simplicity 1700048SM

BOOT, Water

$33.99

$

Usually ships in 2-12 days

0

14

Simplicity 1724568SM

CABLE & KNOB ASSEMBLY (Includes Ref. Nos. 13, 22 & 23)

$170.99

$

In Stock, only 1 left!

0

15

Simplicity 1960685SM

NUT, KEPS, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, only 3 left!

0

17

Simplicity 1960151SM

WASHER, 1/4, Black
(Superseded to 703136)

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 1668344SM

PIN, Flat Head Drilled
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1721590ASM

BRACKET, Mounting

$27.99

$

In Stock, only 1 left!

0

20

Simplicity 1924009SM

CAPSCREW, Hex Head, 1/4-20 x 7/8, Black
(Superseded to 703819)

$4.49

$

In Stock, only 1 left!

0

21

Simplicity 1960221SM

CLIP, Hair Pin
(Superseded to 704039)

$4.49

$

In Stock, only 2 left!

0

22

Simplicity 1960600SM

SCREW, Pan Head, #8-32 x 11/16

$4.99

$

Usually ships in 2-12 days

0

23

Simplicity 1719138SM

HANDLE, cable

Note: (Handle with oblong inside barrel)

$20.99

$

Usually ships in 2-12 days

0

24

Simplicity 1717477ASM

GEAR, Chute

$50.99

$

Usually ships in 2-12 days

0

25

Simplicity 1666613SM

HOLD DOWN, Chute, Nylon

$3.49

$

Usually ships in 2-12 days

0

26

Simplicity 1726411ASM

BRACKET, "L"

$

$

Not available

27

Simplicity 1715787CSM

CUTTER, Drift

$37.99

$

Usually ships in 2-12 days

0

28

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4, Black
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

29

Simplicity 1724210SM

SWITCH, Rocker, Chute Rotator

$54.99

$

Usually ships in 2-12 days

0

30

Simplicity 1722735SM

HARNESS ASSEMBLY, Spout Rotator, 24" Long

$

$

Not available

31

Simplicity 1716987SM

HARNESS ASSEMBLY, Power Outlet, 9" Long

$91.99

$

Usually ships in 2-12 days

0

32

Simplicity 1723117SM

HARNESS ASSEMBLY, Chute Rotator, 50" Long

$52.99

$

Usually ships in 2-12 days

0

33

Simplicity 1960685SM

NUT-KEPS Conical Washer 1/4-20, Black
(Superseded to 703061)

$3.49

$

In Stock, only 3 left!

0

34

Simplicity 1724604SM

PINION

$101.99

$

Usually ships in 2-12 days

0

35

Simplicity 1717591ASM

ROD & BAR ASSEMBLY

$27.99

$

In Stock, only 1 left!

0

36

Simplicity 1917356SM

LOCKWASHER, 5/16, Black
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

37

Simplicity 1960684SM

NUT, Keps Conical Washer, 5/16-18, Black
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

38

Simplicity 1723930A

COVER, Pinion
(Superseded to 1723930ASM)

$12.99

$

Usually ships in 2-12 days

0

39

Simplicity 1925003SM

CAPSCREW, Hex Washer Head, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

40

Simplicity 1715885SM

MOTOR, Electric
(Superseded to 709509)

$439.99

$

In Stock, Qty 13

0

41

Simplicity 2172279ASM

FLANGE, Bearing

$14.99

$

Usually ships in 2-12 days

0

42

Simplicity 2173934SM

BEARING, Cartridge
(Superseded to 1733105SM)

$57.99

$

In Stock, only 2 left!

0

43

Simplicity 2172278ASM

FLANGE, Bearing

$11.99

$

In Stock, only 2 left!

0

44

Simplicity 1923325SM

CAPSCREW, Hex Head, 5/16-18 x 7/8, Black
(Superseded to 703408)

$4.99

$

In Stock, Qty 20+

0

45

Simplicity 1960687SM

NUT, ESNA Flange, 3/8-16, Black
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

48

Simplicity 1725747ASM

SKID PLATE ASSEMBLY
(Superseded to 1725747BMYP)

$92.99

$

In Stock, Qty 5

0

49

Simplicity 1960702SM

CARRIAGE BOLT, 3/8-16 x 1, Black
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

50

Simplicity 1723986ASM

BLADE, Scraper, 42"

$68.99

$

In Stock, only 1 left!

0

51

Simplicity 1935048SM

NUT, Hex Flange Lock, 5/16, Black
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

52

Simplicity 1723974A

HOUSING & IMPELLER ASSEMBLY, 42"

$

$

Not available

64

Simplicity 1724641SM

SPRING, Anchor

$

$

Not available

65

Simplicity 1723412SM

SPRING, Extension

$58.99

$

In Stock, only 1 left!

0

66

Simplicity 1921333SM

CAPSCREW, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

67

Simplicity 1723499SM

SPRING, Retainer

$8.49

$

In Stock, only 3 left!

0

68

Simplicity 1722357SM

CAPSCREW 5/16-18 x 4 1/2

$17.99

$

Usually ships in 2-12 days

0

69

Simplicity 1724635SM

SPRING, Anchor Assembly

$7.49

$

Usually ships in 2-12 days

0

70

Simplicity 1933468SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

71

Simplicity 1935255SM

PAL-NUT

$3.49

$

In Stock, Qty 7

0

74

Simplicity 2860664SM

CAPSCREW, SEMS GD PT 1/4-20 7/8

$5.99

$

In Stock, only 2 left!

0

75

Simplicity 1715799SM

HANDLE "T"

$

$

Not available

76

Simplicity 1930547SM

SCREW, Set, Hex #10-24 x 3/8

$4.49

$

Usually ships in 2-12 days

0

77

Simplicity 1706201SM

HANDLE "T"

Note: (Handle with round inside barrel)

$

$

Not available

78

Simplicity 1960399SM

SCREW, Round Head

$3.49

$

Usually ships in 2-12 days

0
