1694267 - Simplicity Quad Bagger Dump Cart Quad Bagger Dump Cart Parts Diagram

Quad Bagger Dump Cart

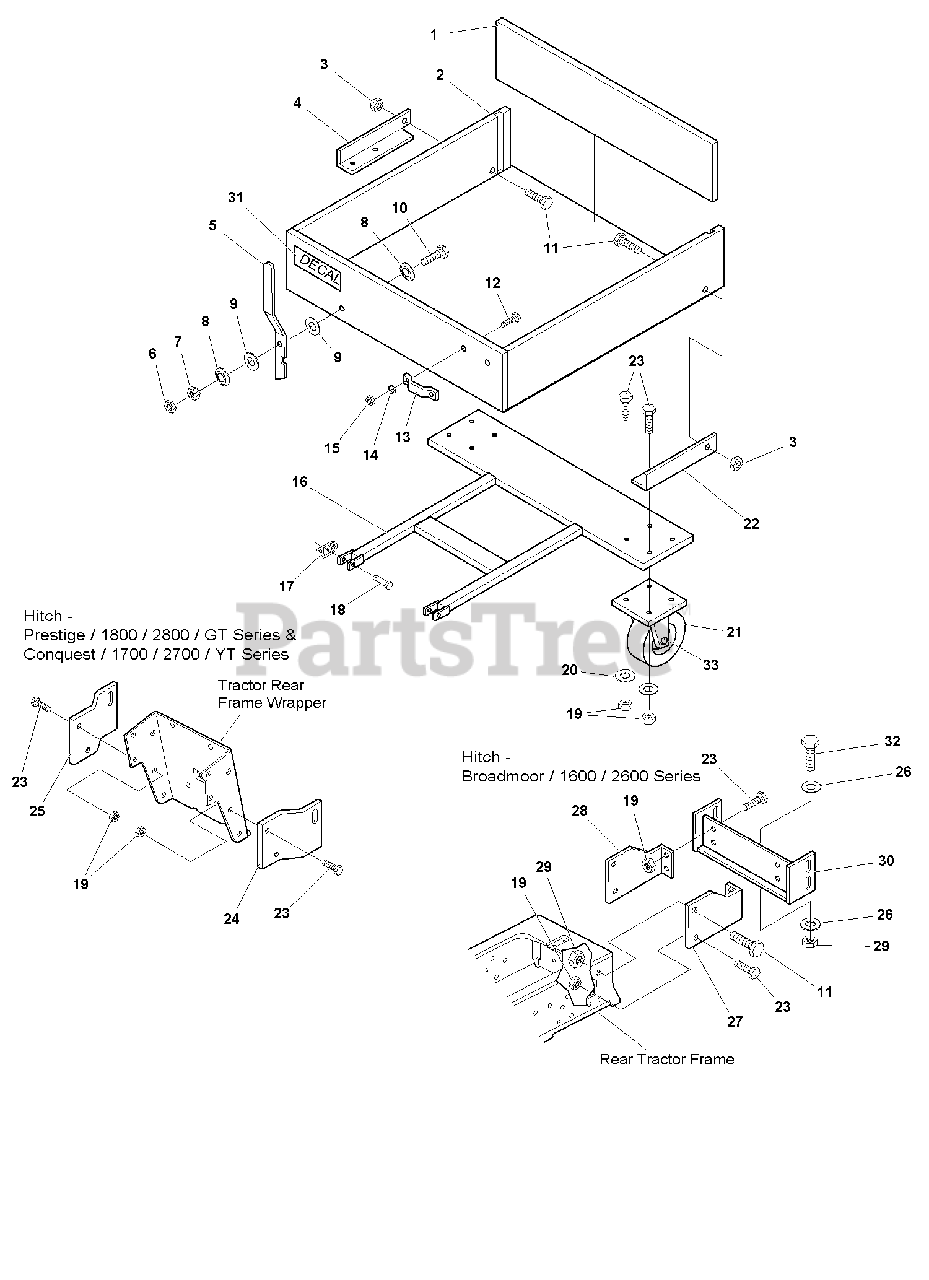

Quad Bagger Dump Cart Parts Diagram

  • Title

1

Simplicity 1708239SM

TAILGATE

$

$

Not available

2

Simplicity 1703338SM

BOX, Cart

$

$

Not available

3

Simplicity 1930644SM

LOCKNUT, Two-Way, 1/2-13

$3.49

$

In Stock, only 3 left!

0

4

Simplicity 1703335SM

BRACKET, Hinge, RH

$40.99

$

Usually ships in 2-12 days

0

5

Simplicity 1700765SM

HANDLE, Latch

$53.99

$

Usually ships in 2-12 days

0

6

Simplicity 1920161SM

NUT, Jam, 5/16-18

$4.49

$

In Stock, Qty 10

0

7

Simplicity 1917372SM

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 2177649SM

WASHER, Compression, 5/16

$9.49

$

In Stock, Qty 5

0

9

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 18

0

10

Simplicity 1921977SM

CAPSCREW, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 15

0

11

Simplicity 1923114SM

CAPSCREW, Hex Head, 1/2-13 x 1

$3.99

$

In Stock, only 2 left!

0

12

Simplicity 1921958SM

CAPSCREW, Hex Head, 1/4-20 x 1/2

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 1700768SM

HANDLE, Lift

$10.99

$

Usually ships in 2-12 days

0

14

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 1 left!

0

15

Simplicity 1916622SM

NUT, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

16

Simplicity 1703336SM

FRAME

$

$

Not available

17

Simplicity 2176012SM

SAFETY CLIP
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 2102004SM

PIN, Round Head, 1/2 x 1-1/2

$9.49

$

In Stock, only 3 left!

0

19

Simplicity 1930645SM

LOCKNUT, Center Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

20

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

21

Simplicity 1676892SM

WHEEL ASSEMBLY, (Includes Item # 31)

$307.99

$

Usually ships in 2-12 days

0

22

Simplicity 1703334SM

BRACKET, Hinge, LH

$39.99

$

Usually ships in 2-12 days

0

23

Simplicity 1921210SM

CAPSCREW, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

24

Simplicity 1723888SM

BRACKET, Hitch, LH
(Superseded to 1723888ASM)

$90.99

$

Usually ships in 2-12 days

0

25

Simplicity 1723887SM

BRACKET, Hitch, RH
(Superseded to 1723887ASM)

$90.99

$

Usually ships in 2-12 days

0

26

Simplicity 1918431SM

WASHER, 1/2
(Superseded to 704011)

$4.49

$

In Stock, only 1 left!

0

27

Simplicity 1723884SM

ADAPTER, Hitch, LH
(Superseded to 1723884ASM)

$47.99

$

Usually ships in 2-12 days

0

28

Simplicity 1723885SM

ADAPTER, Hitch, RH
(Superseded to 1723885ASM)

$52.99

$

Usually ships in 2-12 days

0

29

Simplicity 1922134SM

LOCKNUT, Center Lock, 1/2-13
(Superseded to 703894)

$3.49

$

In Stock, Qty 10

0

30

Simplicity 1723883ASM

HITCH

$103.99

$

Usually ships in 2-12 days

0

31

DECAL, No Riders, Max. Weight 300 Lbs.

$

$

Not available

32

Simplicity 1921176SM

CAPSCREW, Hex Head, 1/2-13 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

33

Simplicity 1712288SM

BEARING, Wheel

$42.99

$

Usually ships in 2-12 days

0
