1694287 - Simplicity 34" Mower Deck 34" Mower Deck - Frame, Caster & Shield Parts Diagram

34" Mower Deck

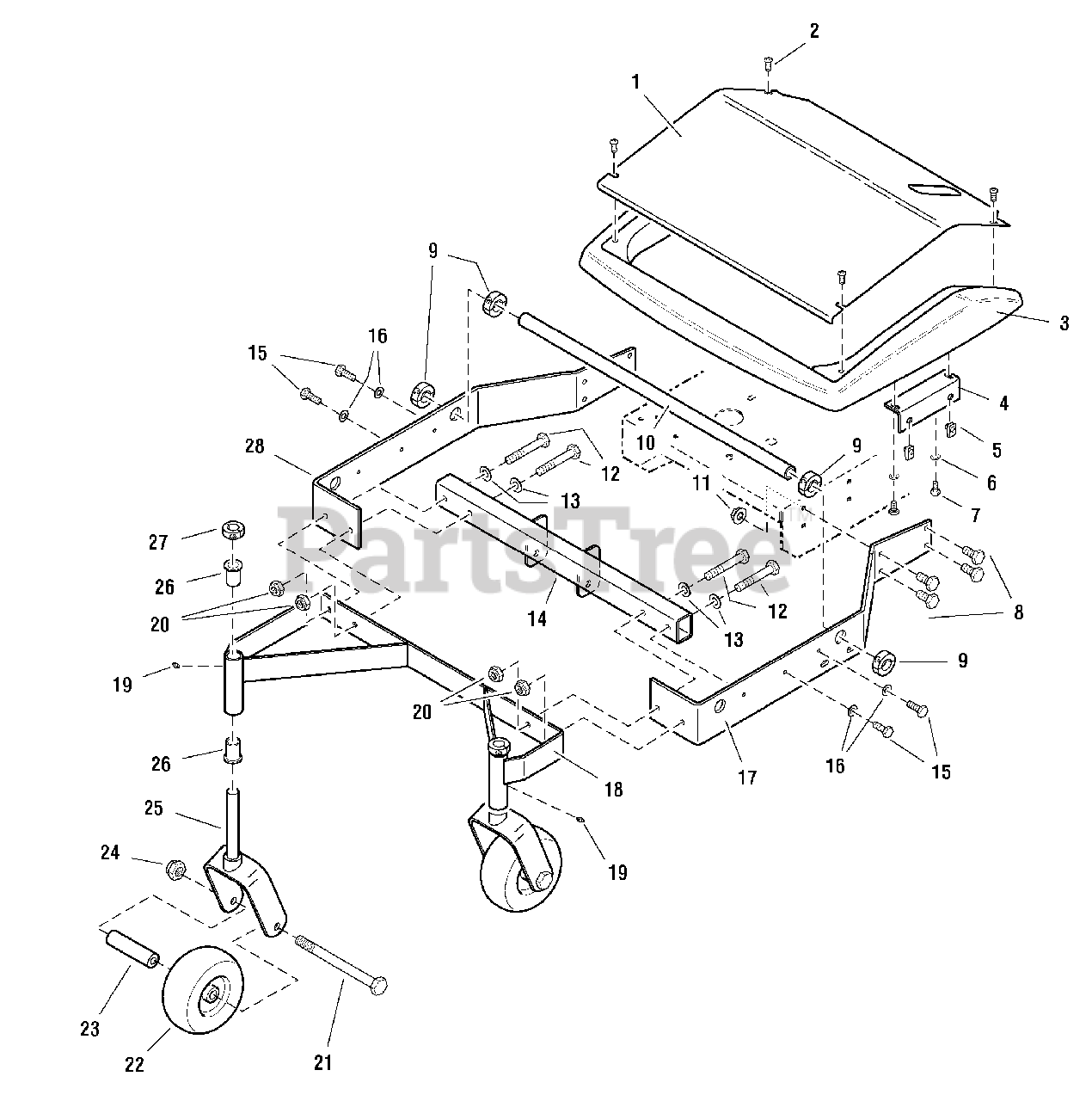

34" Mower Deck - Frame, Caster & Shield Parts Diagram

  • Title

1

Simplicity 5048181CSM

SHIELD INSERT

$100.99

$

Usually ships in 2-12 days

0

2

Simplicity 5025299X4SM

SCREW, Allen Head, 1/4-20 x 1/2

$4.99

$

In Stock, only 4 left!

0

3

Simplicity 5048150SM

GUARD, Mower Deck

$142.99

$

Usually ships in 2-12 days

0

4

Simplicity 5048353CSM

SHIELD MOUNT BRACKET

$

$

Not available

5

Simplicity 5022308SM

BODY CLIP, 5/16-18

$5.99

$

In Stock, Qty 9

0

6

Simplicity 5025169SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

7

Simplicity 5025010X6SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 5025013X8SM

CAPSCREW, Hex Head, 3/8-16 x 1

$3.99

$

In Stock, only 4 left!

0

9

Simplicity 5048549SM

COLLAR, Double Split, 1

$17.99

$

Usually ships in 2-12 days

0

10

Simplicity 5047678CSM

SHAFT

$37.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025128SM

NUT, Hex Serrated Flange, 3/8-16

$3.49

$

In Stock, only 1 left!

0

12

Simplicity 5025013X20SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/2
(Superseded to 703873)

$4.49

$

In Stock, Qty 6

0

13

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 5048196CSM

HITCH TUBE

$68.99

$

Usually ships in 2-12 days

0

15

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 5047648CSM

FRAME RAIL - LH

$

$

Not available

18

Simplicity 5047825CSM

CASTER MOUNT FRAME

$323.99

$

Usually ships in 2-12 days

0

19

Simplicity 5020095SM

GREASE FITTING, 1/4-28

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 5025096SM

NUT, Hex Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 7

0

21

Simplicity 5025017X44SM

CAPSCREW, Hex Head, 1/2-13 x 5-1/2

$7.99

$

In Stock, only 1 left!

0

22

Simplicity 1722951SM

CASTER TIRE

$137.99

$

Usually ships in 2-12 days

0

23

Simplicity 5041657SM

SPACER

$13.99

$

In Stock, only 2 left!

0

24

Simplicity 5025056SM

NUT, Hex Nylon Lock, 1/2-13
(Superseded to 7091325YP)

$4.99

$

In Stock, Qty 13

0

25

Simplicity 5047929CSM

CASTER YOKE

$92.99

$

Usually ships in 2-12 days

0

26

Simplicity 5020823SM

BUSHING, Flange

$10.99

$

In Stock, only 2 left!

0

27

Simplicity 5010114SM

COLLAR, Split, 3/4

$19.99

$

Usually ships in 2-12 days

0

28

Simplicity 5047649CSM

FRAME RAIL - RH

$32.99

$

Usually ships in 2-12 days

0
