1694364 - Simplicity 54" Mower Deck 54" Mower Deck - Drive Group Parts Diagram

54" Mower Deck

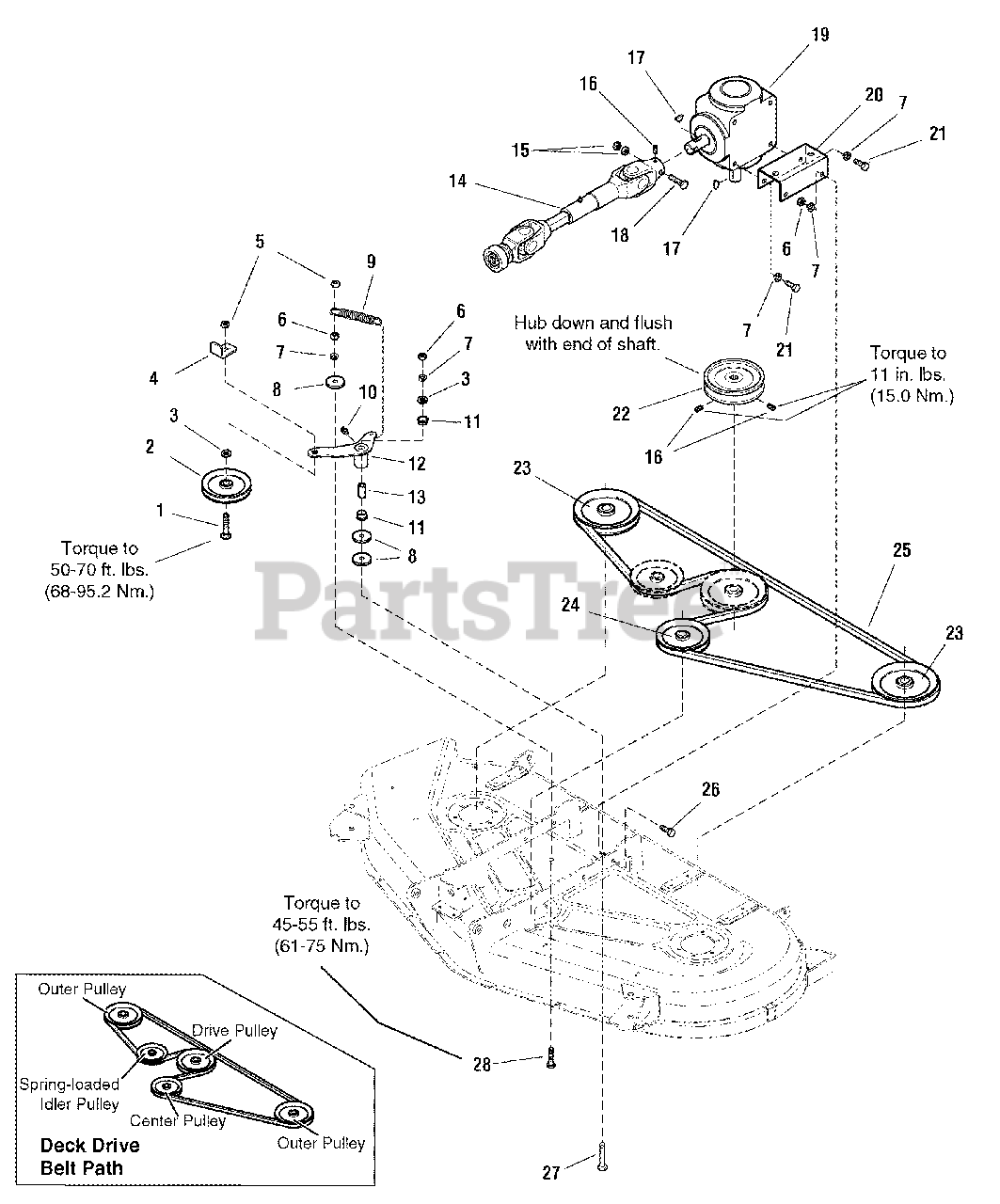

54" Mower Deck - Drive Group Parts Diagram

  • Title

1

Simplicity 1960032SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$5.49

$

In Stock, Qty 7

0

2

Simplicity 1715494SM

PULLEY, Idler, Spring-loaded

$55.99

$

In Stock, only 1 left!

0

3

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 1720986SM

STOP, Idler
(Superseded to 1720986ASM)

$14.99

$

Usually ships in 2-12 days

0

5

Simplicity 1930645SM

NUT, Hex, Center Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

6

Simplicity 1916950SM

NUT, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, only 2 left!

0

7

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, only 3 left!

0

8

Simplicity 1924356SM

WASHER
(Superseded to 703591)

$5.49

$

In Stock, Qty 12

0

9

Simplicity 1674671SM

SPRING, Extension

$25.99

$

Usually ships in 2-12 days

0

10

Simplicity 2812808SM

FITTING, Lube

$4.99

$

In Stock, Qty 20+

0

11

Simplicity 1676148SM

BUSHING

$5.99

$

In Stock, Qty 20+

0

12

Simplicity 1725754ASM

ASSEMBLY, Lever & Hub, Idler

$136.99

$

Usually ships in 2-12 days

0

13

Simplicity 1657242SM

SPACER

$10.99

$

In Stock, Qty 14

0

14

Simplicity 1716482SM

DRIVE SHAFT, Complete (See Drive Shaft Service Parts )

$1085.99

$

In Stock, only 1 left!

0

15

Simplicity 1923358SM

NUT, Hex, Center Lock, 1/4-20
(Superseded to 703954)

$5.49

$

In Stock, Qty 11

0

16

Simplicity 1928721SM

SET SCREW, Square Head, 5/16-18 x 1/2, G8

$4.99

$

In Stock, Qty 13

0

17

Simplicity 2822138SM

KEY, HI PRO 1/4 x 7/8

$10.99

$

In Stock, only 1 left!

0

18

Simplicity 1921159SM

CAPSCREW, Hex Head, 1/4-20 x 2-1/4
(Superseded to 5025010X18SM)

$3.49

$

In Stock, only 3 left!

0

19

Simplicity 1719794SM

GEAR BOX, 54" Mower Deck (See Gear Box Service Parts )

$747.99

$

Usually ships in 2-12 days

0

20

Simplicity 1720581SM

BRACKET, U, 5-1/2 x 2
(Superseded to 1720581ASM)

$78.99

$

Usually ships in 2-12 days

0

21

Simplicity 1921965SM

CAPSCREW, Hex Head, 3/8-16 x 3/4,
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

22

Simplicity 1720705SM

PULLEY, Gear Box

$369.99

$

In Stock, only 1 left!

0

23

Simplicity 1720182ASM

PULLEY, Side Arbor

$57.99

$

In Stock, Qty 5

0

24

Simplicity 1679161ASM

PULLEY, Center Arbor
(Superseded to 1679161SM)

$74.99

$

In Stock, only 1 left!

0

25

Simplicity 1720402SM

BELT, V

$94.99

$

In Stock, only 2 left!

0

26

Simplicity 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 2 left!

0

27

Simplicity 1921973SM

CAPSCREW, Hex Head, 3/8-16 x 2-3/4,
(Superseded to 703874)

$4.49

$

In Stock, Qty 6

0

28

Simplicity 1921969SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 3 left!

0
