1694387 - Simplicity 60" Snow Blade & Hitch Hitch Group Parts Diagram

60" Snow Blade & Hitch

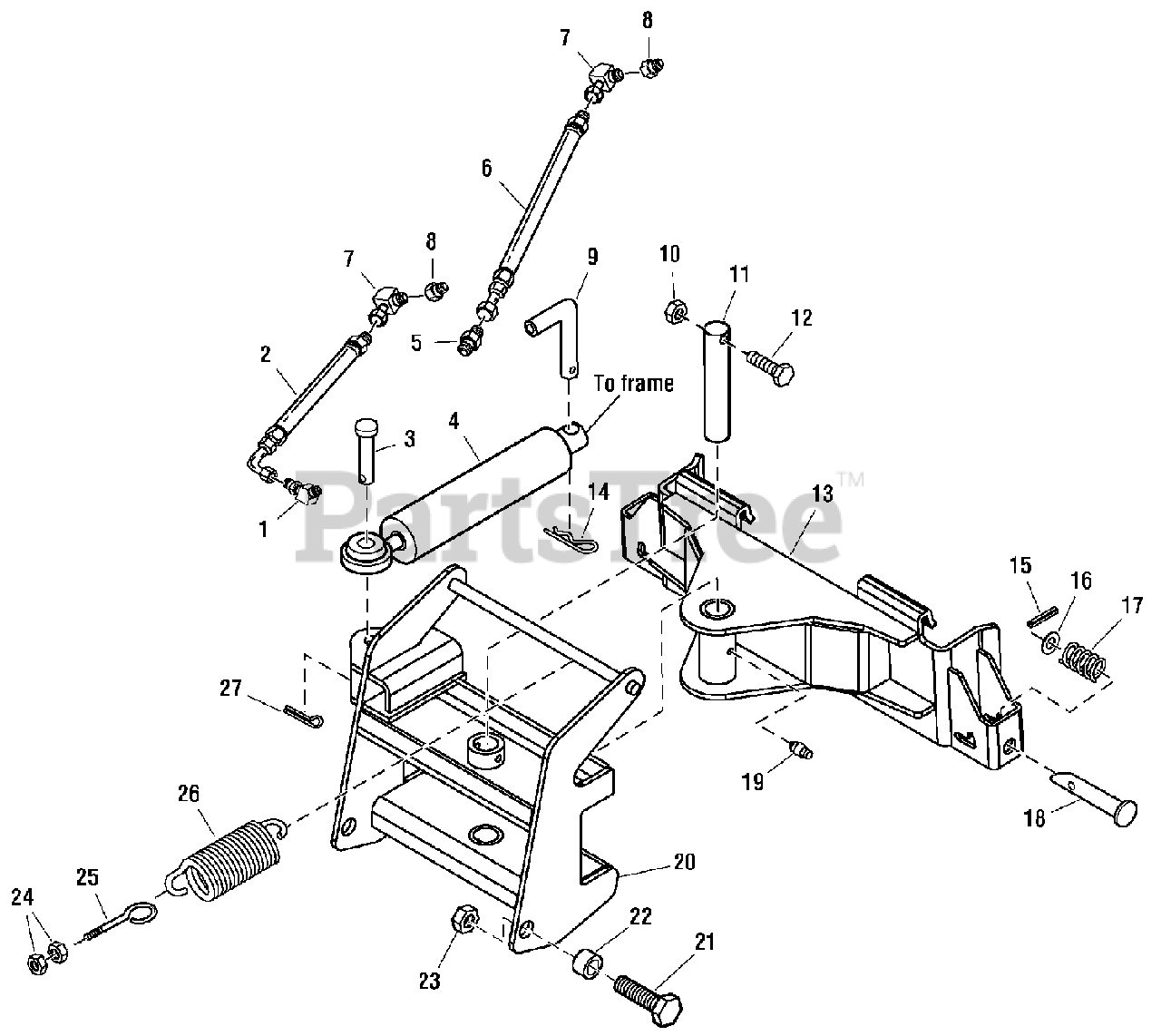

Hitch Group Parts Diagram

  • Title

1

Simplicity 2172320SM

FITTING, Elbow, 1/8NPTx 1/2-20

$22.99

$

Usually ships in 2-12 days

0

2

Simplicity 1725318SM

HOSE ASSEMBLY, 30" Long

$100.99

$

Usually ships in 2-12 days

0

3

Simplicity 1725049SM

PIN, Clevis

$8.99

$

Usually ships in 2-12 days

0

4

Simplicity 1725359SM

CYLINDER, Hydraulic

$438.99

$

Usually ships in 2-12 days

0

5

Simplicity 2819171SM

FITTING, Male, 1/8NPT x 7/16-20

$5.99

$

Usually ships in 2-12 days

0

6

Simplicity 1725319SM

HOSE ASSEMBLY

$71.99

$

Usually ships in 2-12 days

0

7

Simplicity 1725520SM

FITTING, Elbow, Swivel, 1/4-18

$14.99

$

Usually ships in 2-12 days

0

8

Simplicity 2173359SM

NOSE PIECE ASSEMBLY

$43.99

$

Usually ships in 2-12 days

0

9

Simplicity 1725322SM

PIN, Hitch

$26.99

$

Usually ships in 2-12 days

0

10

Simplicity 1920397SM

NUT, Hex Lock ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 1725001SM

SHAFT

$66.99

$

Usually ships in 2-12 days

0

12

Simplicity 1921963SM

CAPSCREW, Hex Head, 1/4-20 x 2

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1724988ASM

HITCH ASSEMBLY

$478.99

$

Usually ships in 2-12 days

0

14

Simplicity 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 5

0

15

Simplicity 2816171

PIN, Roll
(Superseded to 1960587SM)

$3.49

$

In Stock, only 1 left!

0

16

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1709660SM

SPRING, Compression

$8.99

$

Usually ships in 2-12 days

0

18

Simplicity 1709659SM

PIN, Flat Head, Drilled

$23.99

$

Usually ships in 2-12 days

0

19

Simplicity 2821133SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

20

Simplicity 1724995ASM

FRAME ASSEMBLY

$445.99

$

Usually ships in 2-12 days

0

21

Simplicity 1920328SM

CAPSCREW, Hex Head, 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

In Stock, only 1 left!

0

22

Simplicity 1725601SM

SPACER

$19.99

$

Usually ships in 2-12 days

0

23

Simplicity 1922134SM

NUT, Hex Centerlock, 1/2-13
(Superseded to 703894)

$3.49

$

In Stock, Qty 10

0

24

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 2107121SM

EYEBOLT

$14.99

$

Usually ships in 2-12 days

0

26

Simplicity 2101126SM

SPRING, Extension

$46.99

$

In Stock, only 1 left!

0

27

Simplicity 1918452SM

PIN, Cotter
(Superseded to 703795)

$5.99

$

Usually ships in 2-12 days

0
