1694389-01 - Snapper Clean Sweep Triple Grass Catcher Triple Catcher Group Parts Diagram

Clean Sweep Triple Grass Catcher

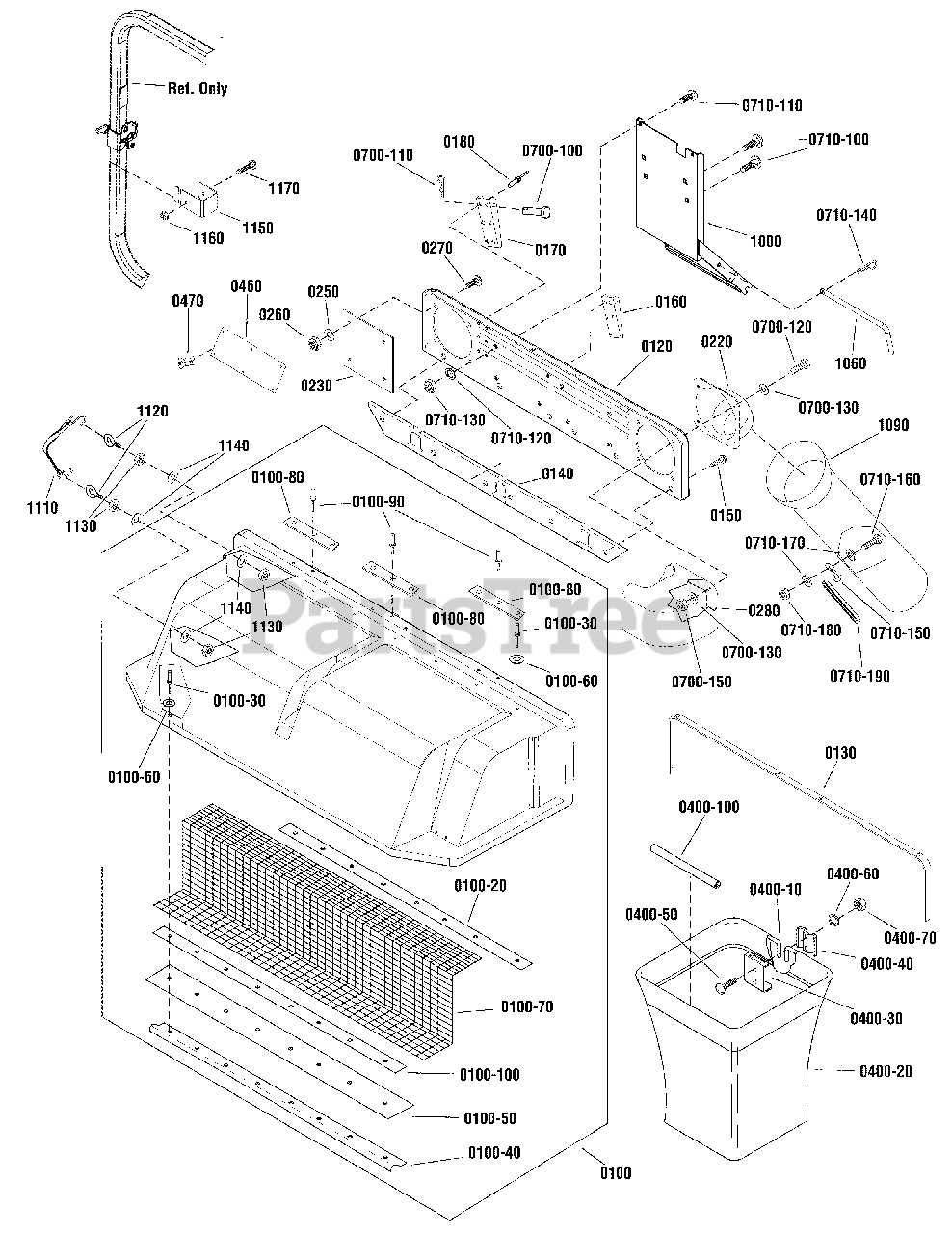

Triple Catcher Group Parts Diagram

  • Title

0100

Snapper 1717025

COVER & SCREEN ASSEMBLY (Includes Ref. No.0100-10 thru 0100-100)
(Superseded to 3046862YP)

$740.99

$

Usually ships in 2-12 days

0

--

Snapper 1717026

*COVER, GRASS CATCHER
(Superseded to 3046862YP)

$740.99

$

Usually ships in 2-12 days

0

0100-20

Snapper 1716970A

CLAMP
(Superseded to 1716970ASM)

$42.99

$

Usually ships in 2-12 days

0

0100-30

Snapper 2825160

RIVET
(Superseded to 2825160SM)

$4.49

$

In Stock, Qty 8

0

0100-40

Snapper 1716972A

ANGLE, Screen
(Superseded to 1716972ASM)

$42.99

$

In Stock, only 2 left!

0

0100-50

Snapper 1716968

SEAL
(Superseded to 1716968SM)

$32.99

$

Usually ships in 2-12 days

0

0100-60

Snapper 1910531

WASHER
(Superseded to 1910531SM)

$3.99

$

Usually ships in 2-12 days

0

0100-70

Snapper 1717041

SCREEN
(Superseded to 1717041SM)

$43.99

$

Usually ships in 2-12 days

0

0100-80

Snapper 1717067A

PLATE ASSSEMBLY
(Superseded to 1717067ASM)

$30.99

$

Usually ships in 2-12 days

0

0100-90

Snapper 1960241

RIVET
(Superseded to 1960241SM)

$5.49

$

Usually ships in 2-12 days

0

0100-100

Snapper 1717524A

CLAMP, Seal
(Superseded to 1717524ASM)

$13.99

$

In Stock, only 2 left!

0

0120

Snapper 1716966

PLATE ASSEMBLY
(Superseded to 1716966ASM)

$225.99

$

Usually ships in 2-12 days

0

0130

Snapper 1717082

SEAL
(Superseded to 1717082SM)

$70.99

$

Usually ships in 2-12 days

0

0140

Snapper 1716973

BRACKET ASSEMBLY
(Superseded to 1716973ASM)

$370.99

$

Usually ships in 2-12 days

0

0150

Snapper 1925003

CAPSCREW, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0160

Snapper 1720945

BRACKET,Hinge
(Superseded to 1720945ASM)

$12.99

$

Usually ships in 2-12 days

0

0170

Snapper 1720875

BRACKET,Hinge
(Superseded to 1720875ASM)

$16.99

$

Usually ships in 2-12 days

0

0180

Snapper 1928707

RIVET
(Superseded to 703981)

$4.49

$

Usually ships in 2-12 days

0

0220

Snapper 1717038

DUCT INLET
(Superseded to 1717038SM)

$125.99

$

Usually ships in 2-12 days

0

0230

Snapper 1725969

COVER
(Superseded to 1725969SM)

$29.99

$

Usually ships in 2-12 days

0

0250

Snapper 1919326

WASHER, 5/16"
(Superseded to 703332)

$4.49

$

In Stock, Qty 18

0

0260

Snapper 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 14

0

0270

Snapper 1921332

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

0280

Snapper 1717039

DEFLECTOR
(Superseded to 1717039SM)

$96.99

$

Usually ships in 2-12 days

0

0400-10

Snapper 1703855A

HOOP, Basket Frame
(Superseded to 1703855ASM)

$139.99

$

In Stock, only 1 left!

0

0400-20

Snapper 1703764

BAG, Grass
(Superseded to 5023290)

$205.99

$

Usually ships in 2-12 days

0

0400-30

Snapper 1703807A

HANGER
(Superseded to 1703807ASM)

$21.99

$

Usually ships in 2-12 days

0

0400-40

Snapper 1672023A

CLAMP
(Superseded to 1672023ASM)

$11.99

$

Usually ships in 2-12 days

0

0400-50

Snapper 1931333

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0400-60

Snapper 1917356

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0400-70

Snapper 1917372

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0400-100

Snapper 1675707

EDGING
(Superseded to 1675707SM)

$6.49

$

In Stock, Qty 5

0

0460

Snapper 1704405

DECAL, Warning
(Superseded to 1732820SM)

$77.99

$

In Stock, only 1 left!

0

0470

Snapper 1667248

CLIP, Canoe
(Superseded to 1667248SM)

$3.49

$

Usually ships in 2-12 days

0

0700

Snapper 1660518

HARDWARE BAG (Not a serviceable part)

$

$

Not available

0700-100

Snapper 1672344

PIN, Rolled 3/8 x 2-3/4
(Superseded to 1672344SM)

$6.49

$

In Stock, Qty 8

0

0700-110

Snapper 1960074

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0700-120

Snapper 1921333

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0700-130

Snapper 1919326

WASHER, 5/16"
(Superseded to 703332)

$4.49

$

In Stock, Qty 18

0

0700-150

Snapper 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 14

0

0710

Snapper 1660764

HARDWARE BAG (Not a serviceable part)

$

$

Not available

0710-100

Snapper 1960223

CARRIAGE BOLT, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, only 1 left!

0

0710-110

Snapper 1931333

CARRIAGE BOLT, 5/16-15 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0710-120

Snapper 1917356

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0710-130

Snapper 1917372

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0710-140

Snapper 1960033

HAIR PIN
(Superseded to 1960033SM)

$3.49

$

In Stock, Qty 5

0

0710-150

Snapper 1672689

HOOK, "S"
(Superseded to 1672689SM)

$31.99

$

Usually ships in 2-12 days

0

0710-160

Snapper 1924009

CAPSCREW, Hex Head 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

In Stock, only 1 left!

0

0710-170

Snapper 1921319

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 18

0

0710-180

Snapper 1920397

LOCKNUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0710-190

Snapper 2172744

STRAP, Rubber
(Superseded to 2172744SM)

$18.99

$

In Stock, only 3 left!

0

1000

Snapper 1725579

SUPPORT ASSSEMBLY
(Superseded to 1725579ASM)

$444.99

$

Usually ships in 2-12 days

0

1060

Snapper 1717085

ROD, 5/8"
(Superseded to 1717085SM)

$50.99

$

In Stock, only 2 left!

0

1090

Snapper 1719807

CHUTE, Grass Catcher
(Superseded to 1719807SM)

$152.99

$

Usually ships in 2-12 days

0

1110

Snapper 313789GS

**STRAP, Tiedown

$14.99

$

Usually ships in 2-12 days

0

1120

Snapper 5022205SM

**BOLT, Eye, 1/4-20 x 2 1/4

$7.49

$

Usually ships in 2-12 days

0

1130

Snapper 704321

**NUT, Jam, 1/4-20, GR5

$3.49

$

Usually ships in 2-12 days

0

1140

Snapper 703136

**WASHER, Flat, 1/4

$3.99

$

Usually ships in 2-12 days

0

1150

Snapper 770534

**CLAMP, Catcher

$37.99

$

Usually ships in 2-12 days

0

1160

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 14

0

1170

Snapper 703857

**BOLT, Carriage, 5/16-18 x 2 3/4

$6.49

$

Usually ships in 2-12 days

0
