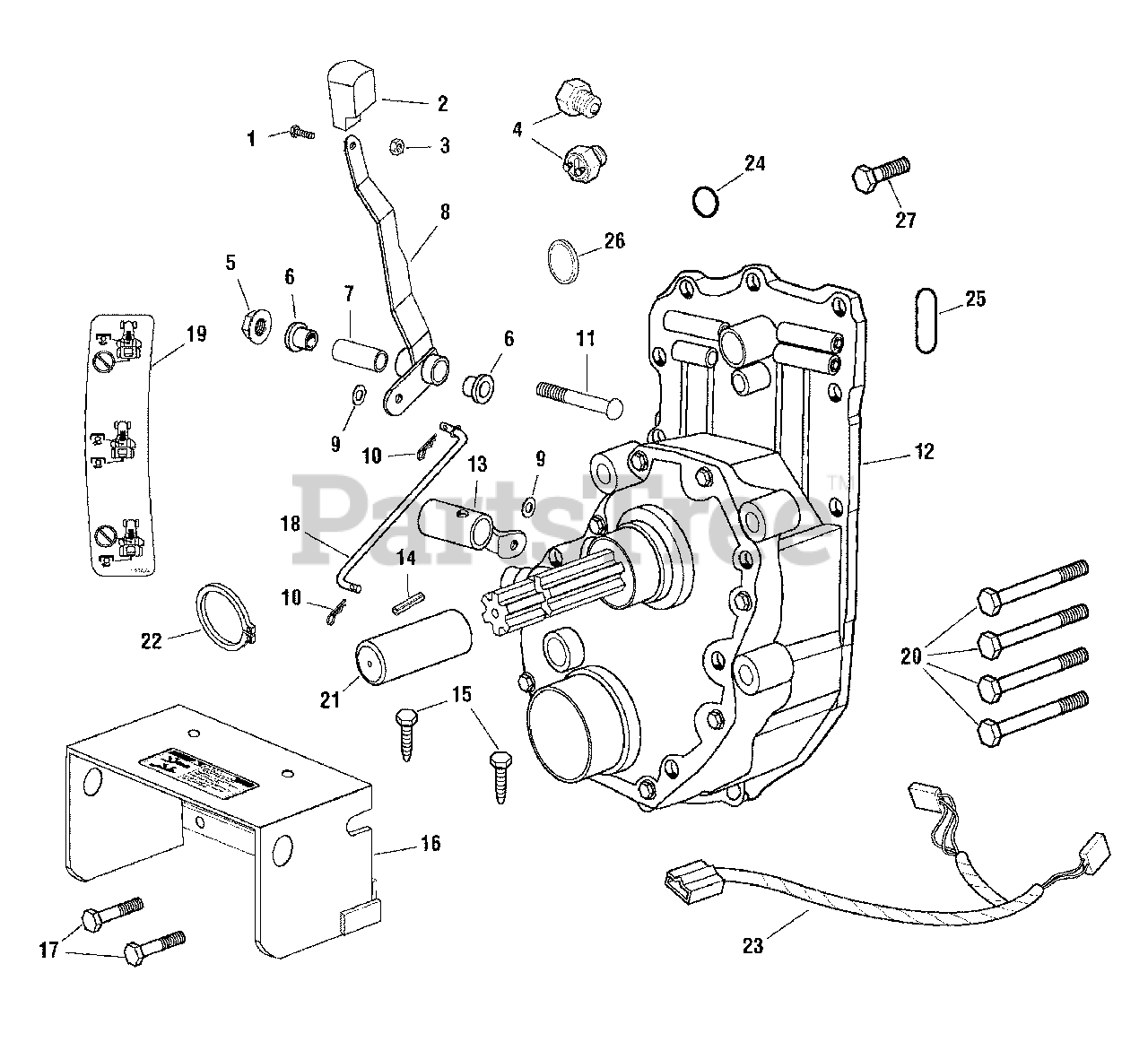

1694399 - Simplicity 540 RPM PTO for Tractor Tuff Torq PTO Group - 540 RPM (1694399) Parts Diagram

540 RPM PTO for Tractor

Tuff Torq PTO Group - 540 RPM (1694399) Parts Diagram

  • Title

1

Simplicity 1960666SM

CAPSCREW, Hex Head, 1/4 - 20 x 7/8

$4.49

$

Usually ships in 2-12 days

0

2

Simplicity 1726043SM

HANDLE, 540 PTO

$28.99

$

In Stock, only 1 left!

0

3

Simplicity 1920397SM

NUT, Nylock, 1/4 - 20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1654634SM

SWITCH, Ball

$46.99

$

Usually ships in 2-12 days

0

5

Simplicity 1960680SM

NUT, Hex Washer, 3/8 -16

$6.49

$

In Stock, only 1 left!

0

6

Simplicity 1676148SM

BUSHING

$5.99

$

In Stock, Qty 10

0

7

Simplicity 1669105SM

SPACER

$13.99

$

In Stock, only 4 left!

0

8

Simplicity 1724225SM

HANDLE ASSEMBLY
(Superseded to 1724225ASM)

$75.99

$

Usually ships in 2-12 days

0

9

Simplicity 1919326SM

WASHER

$4.49

$

In Stock, Qty 18

0

10

Simplicity 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, Qty 10

0

11

Simplicity 1960615SM

BOLT, Carriage, 3/8 - 16 x 2-1/2

$5.49

$

Usually ships in 2-12 days

0

12

Simplicity 1725790SM

PTO, 540 RPM, Tuff Torq

$1766.99

$

Usually ships in 2-12 days

0

13

Simplicity 1724216SM

ARM & HUB ASSEMBLY
(Superseded to 1724216AYP)

$40.99

$

Usually ships in 2-12 days

0

14

Simplicity 1725010SM

ROLL PIN

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 1664847SM

CAPSCREW, Hex Washer Head, 5/16 - 18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1725944SM

SHIELD & DECAL ASSEMBLY

$125.99

$

Usually ships in 2-12 days

0

17

Simplicity 1960677SM

CAPSCREW, Hex Head, M12 - 1-3/4 x 25mm

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 1724229SM

ROD

$32.99

$

Usually ships in 2-12 days

0

19

Simplicity 1725574SM

DECAL, 540 PTO Lever Control

$19.99

$

Usually ships in 2-12 days

0

20

Simplicity 1726291SM

CAPSCREW, 8mm x 90mm

$6.99

$

Usually ships in 2-12 days

0

21

Simplicity 1726474SM

COVER, 540 PTO

$7.99

$

In Stock, only 1 left!

0

22

Simplicity 1726249SM

RING, Snap

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 1724963SM

WIRE HARNESS

$21.99

$

Usually ships in 2-12 days

0

24

Simplicity 1726283SM

O-RING

$3.99

$

Usually ships in 2-12 days

0

25

Simplicity 1726106SM

O-RING

$6.99

$

Usually ships in 2-12 days

0

26

Simplicity 1726169SM

SOLENOID GASKET

$3.99

$

Usually ships in 2-12 days

0

27

Simplicity 1718122SM

CAPSCREW, 8mm x 30mm

$

$

Not available

--

Simplicity 1694399YP

KIT, 540 PTO

$

$

Not available
