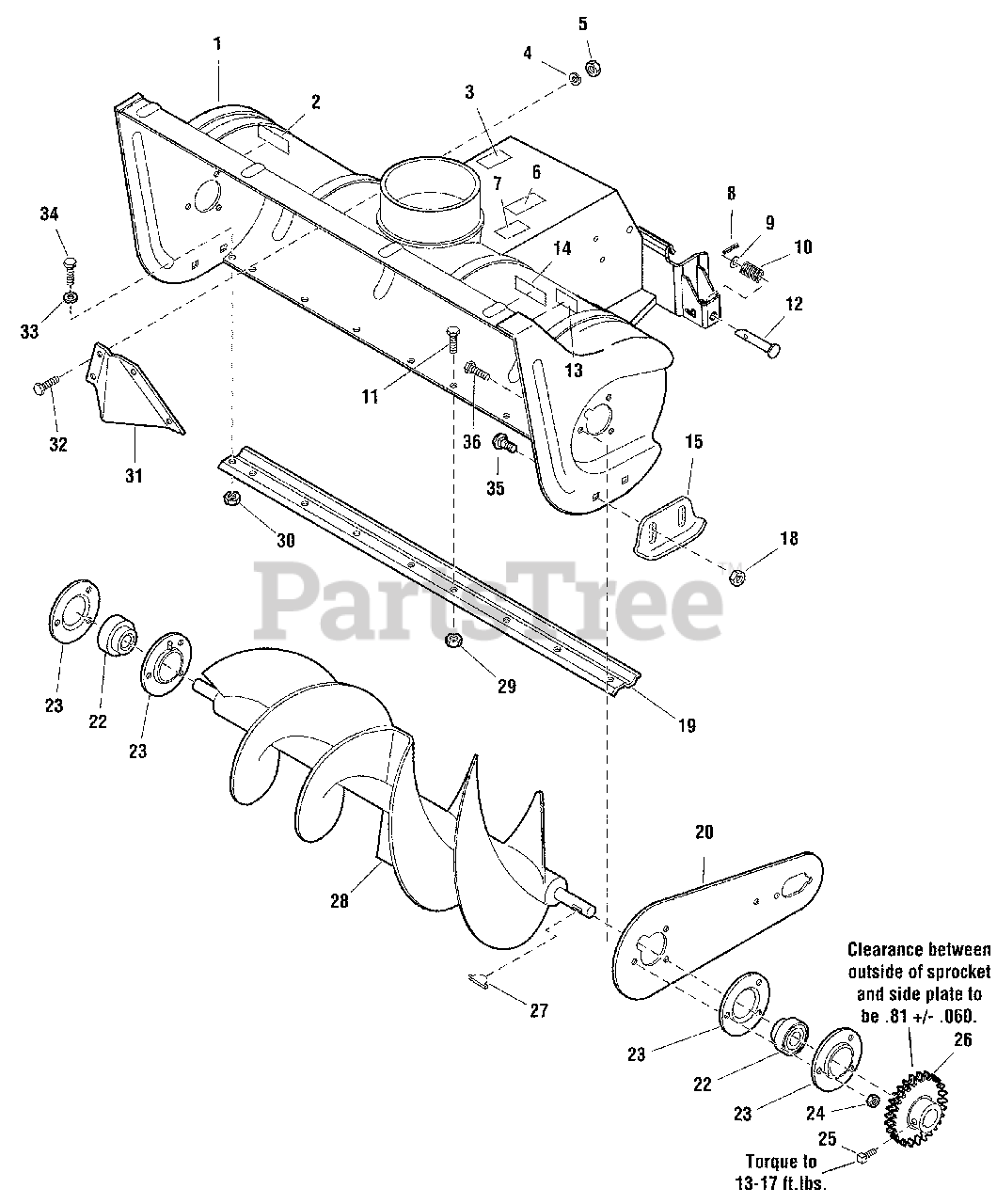

1694403 - Simplicity 46" Snow Thrower Attachment Body & Rotor Group Parts Diagram

46" Snow Thrower Attachment

Body & Rotor Group Parts Diagram

  • Title

1

Simplicity 1725174ASM

BODY & FRAME ASSEMBLY

$

$

Not available

2

Simplicity 1716540SM

DECAL, Caution, Rear Wheel Weights Required

$14.99

$

In Stock, only 1 left!

0

3

Simplicity 1722674SM

DECAL, Caution, Spring Tension

$14.99

$

Usually ships in 2-12 days

0

4

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

DECAL, OPEI, Not Serviced

$

$

Not available

7

DECAL, Model Number & Serial Number, Not Serviced

$

$

Not available

8

Simplicity 2816171

PIN, Spring
(Superseded to 1960587SM)

$3.49

$

In Stock, only 1 left!

0

9

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1709660SM

SPRING, Compression

$8.99

$

Usually ships in 2-12 days

0

11

Simplicity 1921959SM

CAPSCREW, Hex Head, 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1709659SM

PIN, Flat Head Drilled

$23.99

$

Usually ships in 2-12 days

0

13

Simplicity 1716532SM

DECAL, Danger Auger

$12.99

$

Usually ships in 2-12 days

0

14

Simplicity 1716531SM

DECAL, Caution

$19.99

$

In Stock, only 1 left!

0

15

Simplicity 1713424ASM

SKID & WEAR ASSEMBLY

$54.99

$

Usually ships in 2-12 days

0

18

Simplicity 1960687SM

NUT, ESNA Hex Flange, 3/8-16
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1717472ASM

BLADE, Scraper, 46"

$213.99

$

In Stock, only 1 left!

0

20

Simplicity 1676632A

PLATE, Side
(Superseded to 1676632ASM)

$44.99

$

Usually ships in 2-12 days

0

22

Simplicity 2173934SM

BEARING, Cartridge
(Superseded to 1733105SM)

$57.99

$

In Stock, only 2 left!

0

23

Simplicity 2172278ASM

FLANGE, Bearing

$11.99

$

In Stock, only 2 left!

0

24

Simplicity 1935048SM

NUT, Hex Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1677029SM

SCREW, Set, Hex Socket Head, Cup Point, 5/16-18 x 3/8

$3.49

$

In Stock, only 1 left!

0

26

Simplicity 1676721SM

SPROCKET ASSEMBLY

$

$

Not available

27

Simplicity 2805126SM

KEY

$4.99

$

Usually ships in 2-12 days

0

28

Simplicity 1721842ASM

ROTOR ASSEMBLY, 46"

$1567.99

$

Usually ships in 2-12 days

0

29

Simplicity 1923358SM

NUT, Hex Centerlock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

30

Simplicity 1923362SM

NUT, Hex Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

31

Simplicity 2106774ASM

DEFLECTOR

$29.99

$

Usually ships in 2-12 days

0

32

Simplicity 1925205SM

CAPSCREW, Hex Head, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

33

Simplicity 1919326SM

WASHER

$4.49

$

In Stock, Qty 18

0

34

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

35

Simplicity 1960711SM

CARRIAGE BOLT, Round Head Square Neck 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

36

Simplicity 1923325SM

CAPSCREW, Hex Head, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 20+

0
