1694404 - Simplicity 47" Snow Thrower Attachment Housing & Chain Case Group Parts Diagram

47" Snow Thrower Attachment

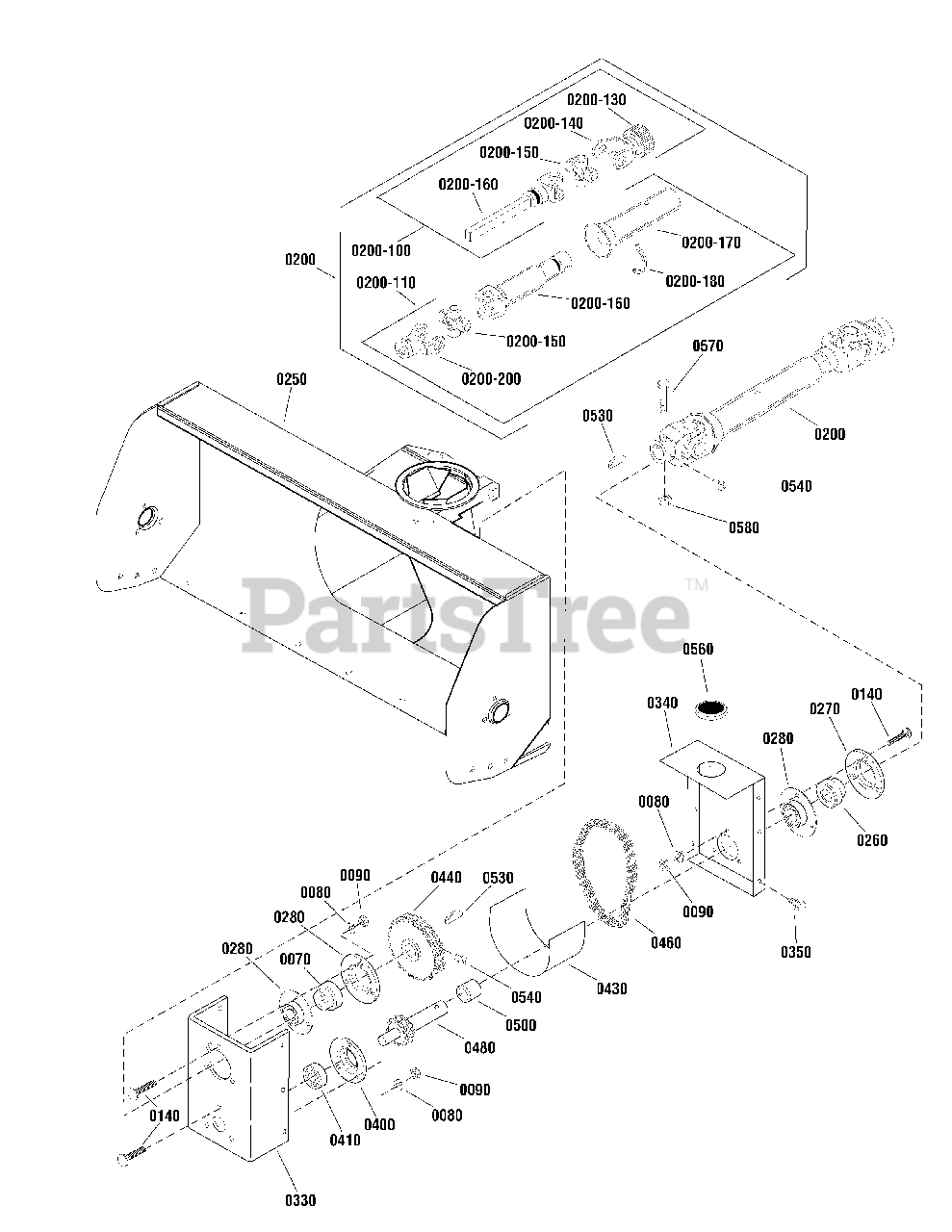

Housing & Chain Case Group Parts Diagram

  • Title

0070

Simplicity 1709624

BEARING
(Superseded to 1709624SM)

$60.99

$

In Stock, only 2 left!

0

0080

Simplicity 1917356

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0090

Simplicity 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0140

Simplicity 1931334

CARRIAGE BOLT, 5/16-18 x 7/8
(Superseded to 704065)

$4.49

$

In Stock, Qty 12

0

0200

Simplicity 1717484

SHAFT ASSEMBLY (Includes Ref. Nos. 1-3, 5-7)
(Superseded to 1717484SM)

$638.99

$

Usually ships in 2-12 days

0

0200-100

Simplicity 1718838

JOINT & SHAFT ASSEMBLY (Includes Ref. Nos. 1, 2, 3, & 38)
(Superseded to 1718838SM)

$426.99

$

Usually ships in 2-12 days

0

0200-110

Simplicity 1709348

DRIVE SHAFT JOINT&TUBE ASSEMBLY
(Superseded to 1709348SM)

$364.99

$

Usually ships in 2-12 days

0

0200-130

Simplicity 1718475

SPRING LOCK KIT
(Superseded to 1718475SM)

$46.99

$

Usually ships in 2-12 days

0

0200-140

Simplicity 1709350

YOKE ASSEMBLY, Spring Lock
(Superseded to 1709350SM)

$

$

Not available

0200-150

Simplicity 1679003

CROSS & BEARING KIT
(Superseded to 1679003SM)

$80.99

$

Usually ships in 2-12 days

0

0200-160

Simplicity 1718837

YOKE & SHAFT ASSEMBLY
(Superseded to 1718837SM)

$136.99

$

Usually ships in 2-12 days

0

0200-170

Simplicity 1709355

DRIVE SHAFT INNER GUARD
(Superseded to 1709355SM)

$146.99

$

Usually ships in 2-12 days

0

0200-180

Simplicity 1709352

DRIVE SHAFT NYLON REPAIR KIT
(Superseded to 1709352SM)

$13.99

$

Usually ships in 2-12 days

0

0200-200

Simplicity 1716877

YOKE
(Superseded to 1716877SM)

$76.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1725459A

HOUSING ASSEMBLY

$

$

Not available

0260

Simplicity 2173934

BEARING, Cartridge
(Superseded to 1733105SM)

$57.99

$

In Stock, only 2 left!

0

0270

Simplicity 2172279A

FLANGE W/ GREASE FITTING
(Superseded to 2172279ASM)

$14.99

$

Usually ships in 2-12 days

0

0280

Simplicity 2172278A

FLANGE
(Superseded to 2172278ASM)

$11.99

$

In Stock, only 2 left!

0

0330

Simplicity 1725460A

BACKPLATE

$

$

Not available

0340

Simplicity 1725461A

COVER
(Superseded to 1725461ASM)

$37.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1664847

SCREW, Hex Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0400

Simplicity 1665696

FLANGE, Bearing
(Superseded to 1725764SM)

$29.99

$

Usually ships in 2-12 days

0

0410

Simplicity 2108202

BEARING
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

0430

Simplicity 1725462A

COVER
(Superseded to 1725462ASM)

$18.99

$

Usually ships in 2-12 days

0

0440

Simplicity 1721763

SPROCKETS & HUB ASSEMBLY
(Superseded to 1721763SM)

$323.99

$

Usually ships in 2-12 days

0

0460

Simplicity 1721766

CHAIN, Roller, #40 x 20
(Superseded to 1721766SM)

$75.99

$

Usually ships in 2-12 days

0

0480

Simplicity 1721767

SHAFT & SPROCKETS ASSEMBLY
(Superseded to 1721767SM)

$

$

Not available

0500

Simplicity 1721769

SPACER
(Superseded to 1721769SM)

$33.99

$

Usually ships in 2-12 days

0

0530

Simplicity 2822138

KEY
(Superseded to 2822138SM)

$9.99

$

In Stock, only 2 left!

0

0540

Simplicity 1930544

SCREW, Set, Hex, Cup Point, 5/16 x 3/8
(Superseded to 704033)

$4.49

$

Usually ships in 2-12 days

0

0560

Simplicity 1674020

PLUG
(Superseded to 1674020SM)

$4.49

$

In Stock, Qty 7

0

0570

Simplicity 1960506

CAPSCREW, Hex Head, 1/4-20 x 1-7/8
(Superseded to 704034)

$5.49

$

In Stock, only 1 left!

0

0580

Simplicity 1923358

NUT, Hex Center Lock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0
