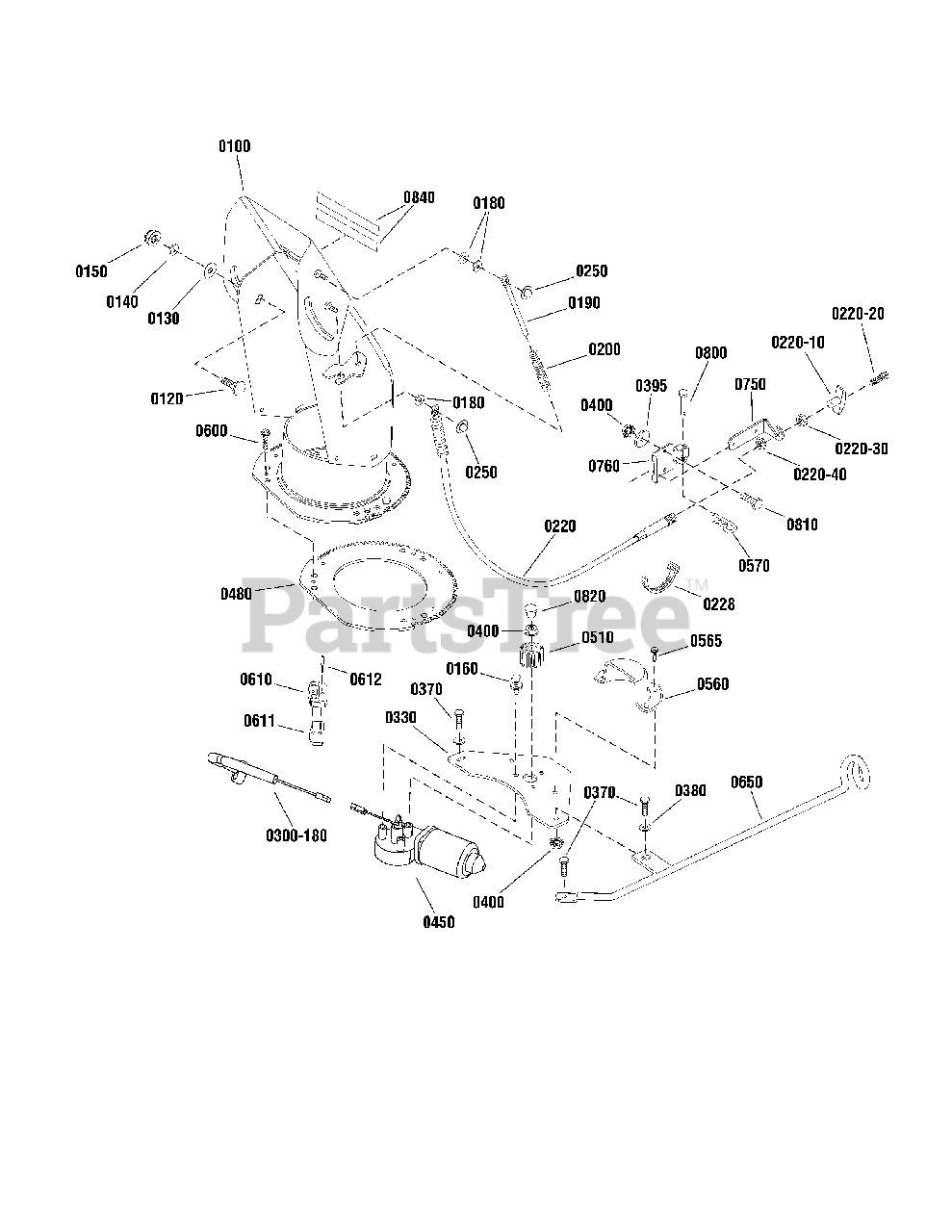

1694404 - Simplicity 47" Snow Thrower Attachment Spout Group Parts Diagram

47" Snow Thrower Attachment

Spout Group Parts Diagram

  • Title

0100

Simplicity 1733907ASM

CHUTE & DEFLECTOR ASSEMBLY
(Superseded to 1736485AYP)

$438.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0130

Simplicity 2860210SM

WASHER, 5/16

$4.49

$

In Stock, Qty 5

0

0140

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 18

0

0150

Simplicity 1919438SM

LOCKNUT, Hex, ESNA, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 8

0

0160

Simplicity 2860664SM

SCREW, Hex, Sems Washer 1/4-20

$5.99

$

In Stock, only 2 left!

0

0180

Simplicity 1702219SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

0190

Simplicity 1611945SM

ROD

$13.99

$

In Stock, only 1 left!

0

0200

Simplicity 1611939SM

SPRING, Compression

$10.99

$

In Stock, only 1 left!

0

0220

Simplicity 1717482SM

CABLE & KNOB ASSEMBLY

Note: (Incl. Ref. Num. 0220-10 thru 0220-40)

$162.99

$

Usually ships in 2-12 days

0

0220-10

Simplicity 1715799SM

HANDLE

$

$

Not available

0220-20

Simplicity 1930547SM

SCREW, Hex, 10-24

$4.49

$

Usually ships in 2-12 days

0

0220-30

Simplicity 1715801SM

NUT, Cap
(Superseded to 1718771SM)

$186.99

$

In Stock, only 1 left!

0

0220-40

Simplicity 1922014SM

NUT, Hex Jam, 5/8-18
(Superseded to 703904)

$4.99

$

In Stock, Qty 11

0

0228

Simplicity 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

0250

Simplicity 1960126SM

NUT PUSH, Capped, 1/4
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

0300-180

Simplicity 1717483SM

HARNESS ASSEMBLY

$50.99

$

Usually ships in 2-12 days

0

0330

Simplicity 1725464ASM

PLATE, Motor Mounting

$

$

Not available

0370

Simplicity 1924009SM

CAPSCREW, Hex Head, 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

In Stock, only 1 left!

0

0380

Simplicity 1921319SM

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

0395

Simplicity 1960151SM

WASHER
(Superseded to 703136)

$3.99

$

Usually ships in 2-12 days

0

0400

Simplicity 1960685SM

NUT, Hex Keps. 1/4-20 Conical
(Superseded to 703061)

$3.49

$

In Stock, only 3 left!

0

0450

Simplicity 1715885SM

MOTOR, Electric
(Superseded to 709509)

$439.99

$

In Stock, Qty 13

0

0480

Simplicity 1717477ASM

GEAR, Chute

$50.99

$

Usually ships in 2-12 days

0

0510

Simplicity 1724604SM

PINION, 15 Teeth

$101.99

$

Usually ships in 2-12 days

0

0560

Simplicity 1717481SM

COVER

$47.99

$

Usually ships in 2-12 days

0

0565

Simplicity 1925003SM

SCREW, Hex Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0570

Simplicity 1960221SM

CLIP, Hair Pin
(Superseded to 704039)

$4.49

$

In Stock, only 2 left!

0

0600

Simplicity 1960683SM

SCREW, Hex Washer Head, Taptite Washer, #10-24 x 7/8
(Superseded to 772083)

$3.49

$

Usually ships in 2-12 days

0

0610

Simplicity 1666613SM

HOLD DOWN

$3.49

$

Usually ships in 2-12 days

0

0611

Simplicity 1725454SM

PLATE, Hold Down
(Superseded to 1725454AYP)

$13.99

$

In Stock, Qty 6

0

0612

Simplicity 1673450SM

RIVET, Pop

$3.49

$

In Stock, Qty 5

0

0650

Simplicity 1721617ASM

ROD & TAB ASSEMBLY

$74.99

$

Usually ships in 2-12 days

0

0750

Simplicity 1726411ASM

BRACKET, Chute Cable

$

$

Not available

0760

Simplicity 1721590ASM

BRACKET, Cable Mounting

$27.99

$

In Stock, only 1 left!

0

0800

Simplicity 1668344SM

PIN, Flat Head, Drilled
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0810

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

0820

Simplicity 1724553SM

CAP, Plug

$4.49

$

In Stock, only 1 left!

0

0840

Simplicity 1733600SM

DECAL, Hinge

$11.99

$

Usually ships in 2-12 days
