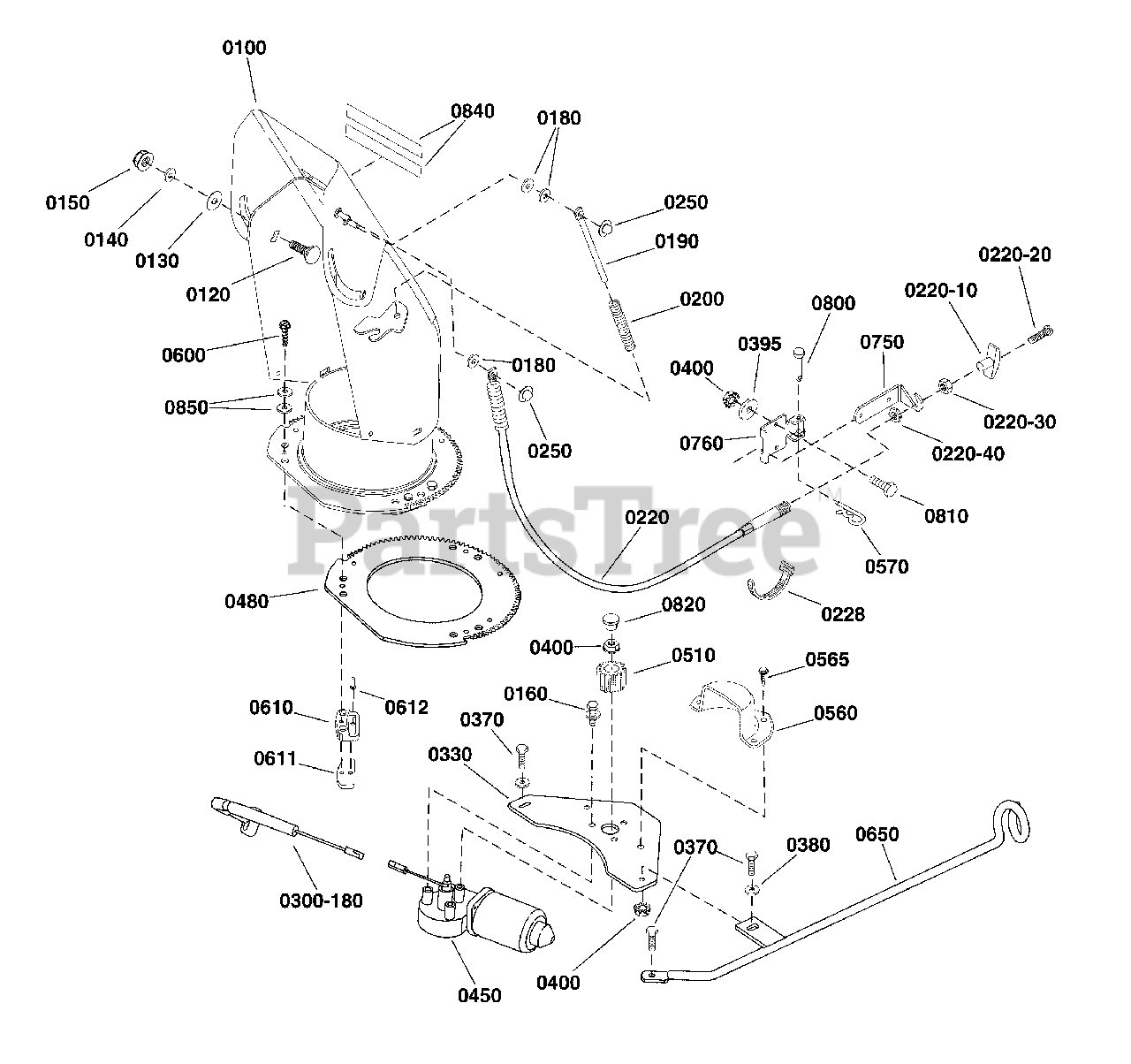

1694404 - Snapper 47" Snow Thrower Attachment Spout Group Parts Diagram

47" Snow Thrower Attachment

Spout Group Parts Diagram

  • Title

0100

Snapper 1733907ASM

CHUTE & DEFLECTOR ASSEMBLY
(Superseded to 1736485AYP)

$438.99

$

Usually ships in 2-12 days

0

0120

Snapper 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0130

Snapper 2860210SM

WASHER, Nylon, 3/8

$4.49

$

In Stock, Qty 5

0

0140

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 18

0

0150

Snapper 1919438SM

NUT, Hex Lock, Nylon Insert, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

0160

Snapper 2860664SM

SCREW, Conical Washer, 1/4-20 x 7/8 Dog Point

$5.99

$

In Stock, only 2 left!

0

0180

Snapper 1702219SM

SPACER, 17/64 ID x 3/8 OD

$8.49

$

Usually ships in 2-12 days

0

0190

Snapper 1611945SM

ROD, 5/16" Diameter, Spring Guide

$13.99

$

In Stock, only 1 left!

0

0200

Snapper 1611939SM

SPRING, Compression

$10.99

$

In Stock, only 1 left!

0

0220

Snapper 1717482SM

CABLE & KNOB ASSEMBLY

Note: (Incl. Ref. Num. 0220-10 thru 0220-40)

$162.99

$

Usually ships in 2-12 days

0

0220-10

Snapper 1715799SM

HANDLE "T"

$

$

Not available

0220-20

Snapper 1930547SM

SCREW, Hex Skt. Hd. Taptite, 1/4-2 x 3/8

$4.49

$

Usually ships in 2-12 days

0

0220-30

Snapper 1715801SM

NUT, Cap
(Superseded to 1718771SM)

$186.99

$

In Stock, only 1 left!

0

0220-40

Snapper 1922014SM

NUT, Hex Jam, 5/8-18
(Superseded to 703904)

$4.99

$

In Stock, Qty 11

0

0228

Snapper 1701011SM

TIE, Self Locking, 15" Long

$5.49

$

In Stock, only 2 left!

0

0250

Snapper 1960126SM

PUSHNUT (Used on Mfg. No. 1690775, 1690776, 1690777, 1690778, 1690779, 1690903, 1691023)
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

0300-180

Snapper 1717483SM

HARNESS ASSEMBLY

$50.99

$

Usually ships in 2-12 days

0

0330

Snapper 1725464ASM

PLATE, Motor Mounting

$

$

Not available

0370

Snapper 1924009SM

CAPSCREW, Hex Head, 1/4 - 20 x 7/8
(Superseded to 703819)

$4.49

$

In Stock, only 1 left!

0

0380

Snapper 1921319SM

WASHER, 1/4, x 5/8 OD
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

0395

Snapper 1960151SM

WASHER, Plain, 1/4 x 1-1/4 x 5/64 (European model only)
(Superseded to 703136)

$3.99

$

Usually ships in 2-12 days

0

0400

Snapper 1960685SM

NUT, Hex, KEPS, Conical, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, only 3 left!

0

0450

Snapper 1715885SM

MOTOR, Electric Cutting Height Adjust
(Superseded to 709509)

$439.99

$

In Stock, Qty 12

0

0480

Snapper 1717477ASM

GEAR, Chute, 10 OD 6.65 ID .105 Thick

$50.99

$

Usually ships in 2-12 days

0

0510

Snapper 1724604SM

PINION, 1-3/20 LG

$101.99

$

Usually ships in 2-12 days

0

0560

Snapper 1717481SM

COVER, Pinion

$47.99

$

Usually ships in 2-12 days

0

0565

Snapper 1925003SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0570

Snapper 1960221SM

CLIP, Hair Pin
(Superseded to 704039)

$4.49

$

In Stock, only 1 left!

0

0600

Snapper 772083

SCREW, Pan Head Torx #10-24 x 1

$3.49

$

Usually ships in 2-12 days

0

0610

Snapper 1666613SM

HOLD DOWN, Chute, Black Nylon

$3.49

$

Usually ships in 2-12 days

0

0611

Snapper 1725454SM

PLATE, Hold Down
(Superseded to 1725454AYP)

$13.99

$

In Stock, Qty 6

0

0612

Snapper 1673450SM

RIVET, Pop

$3.49

$

In Stock, Qty 5

0

0650

Snapper 1721617ASM

ROD & TAB ASSEMBLY

$74.99

$

Usually ships in 2-12 days

0

0750

Snapper 1726411ASM

BRACKET, Chute Cable Snow, .179 Thick

$

$

Not available

0760

Snapper 1721590ASM

BRACKET, Cable Mounting

$27.99

$

In Stock, only 1 left!

0

0800

Snapper 1668344SM

PIN, Shear, 1/4 ID. X 1-3/4 Long
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0810

Snapper 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4, G5

$4.49

$

In Stock, Qty 8

0

0820

Snapper 1724553SM

CAPLUG, Black Poly, 3/4 Hole

$4.49

$

In Stock, only 1 left!

0

0840

Snapper 1733600SM

DECAL, Black Strip

$11.99

$

Usually ships in 2-12 days

0

0850

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 17
