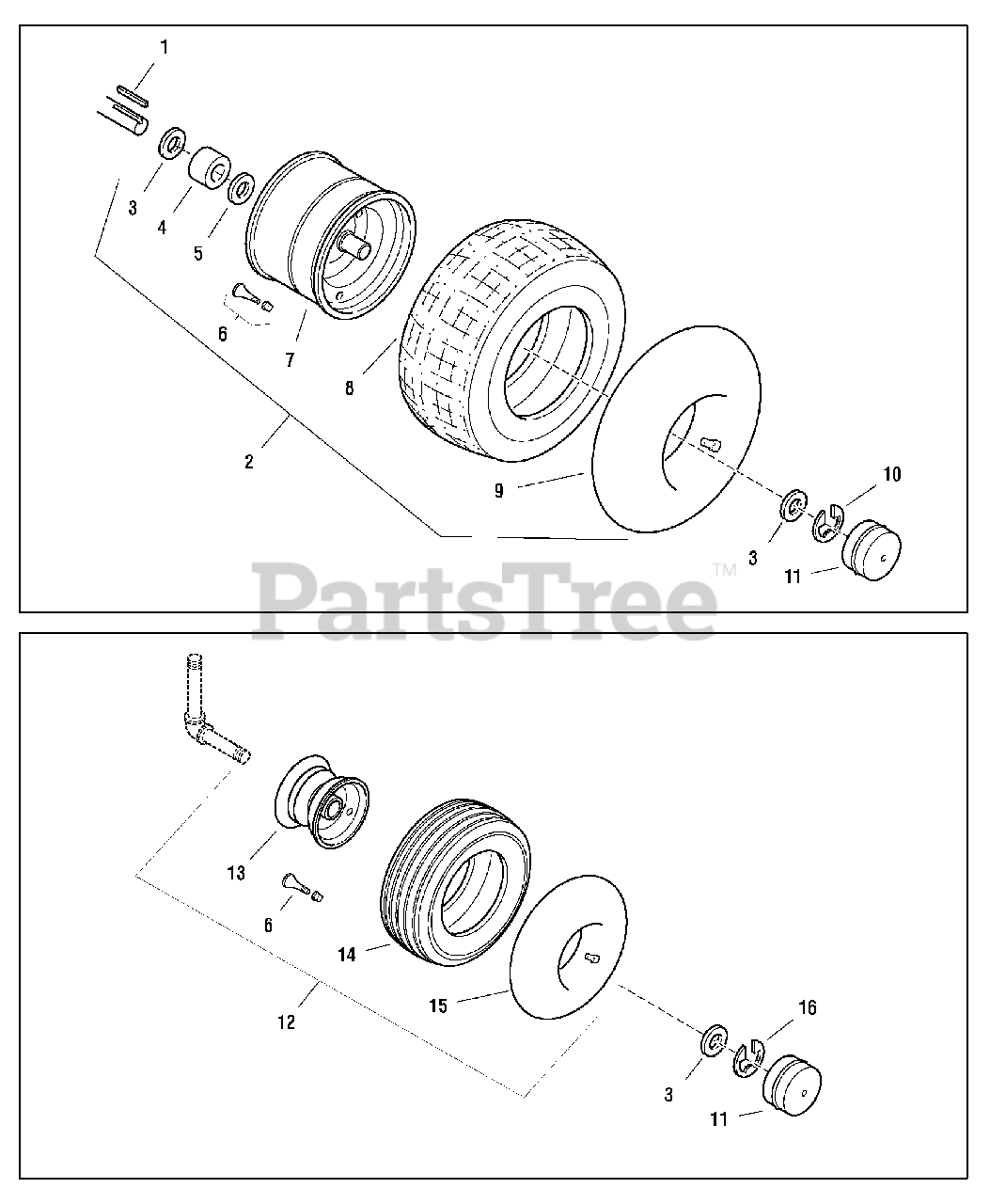

1694463 - Simplicity Coronet Rear-Engine Riding Mower, 16hp Wheels & Tires Group Parts Diagram

Coronet Rear-Engine Riding Mower, 16hp

Wheels & Tires Group Parts Diagram

  • Title

1

Simplicity 1729279SM

KEY, Square, 3/16 x 3/16 x 1-1/2 long
(Superseded to 703889)

$4.49

$

In Stock, Qty 11

0

2

Simplicity 1723171SM

REAR WHEEL & TIRE ASSEMBLY, Hoosier, (Includes Ref. Nos. 3, 4, 7 & 8)

$

$

Not available

3

Simplicity 2860202SM

WASHER, 3/4

$4.49

$

In Stock, Qty 10

0

4

Simplicity 1717451SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

5

Simplicity 1960114SM

WASHER
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

7

Simplicity 1723400SM

REAR WHEEL ASSEMBLY, Metallic Gray

$

$

Not available

8

Simplicity 1723399SM

TIRE, Rear Wheel, 16 X 6.50-8

$87.99

$

Usually ships in 2-12 days

0

9

Simplicity 2164247SM

TUBE, Rear Wheel

$43.99

$

In Stock, only 1 left!

0

10

Simplicity 2827794SM

E RING

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1722675SM

HUB CAP, Silver

$4.49

$

In Stock, only 2 left!

0

12

Simplicity 1723170SM

FRONT WHEEL & TIRE ASSEMBLY, Hoosier, 13 x 5.00-6, Metallic Gray (Includes Ref. Nos. 4, 15, 18 & 19)

$120.99

$

In Stock, only 1 left!

0

13

Simplicity 1723402SM

FRONT WHEEL ASSEMBLY 13 x 5.00-6, Metallic Gray (Includes Ref. No. 16)

$

$

Not available

14

Simplicity 1723401SM

TIRE, Front Wheel, 13 x 5.00-6

$

$

Not available

15

Simplicity 1664090SM

TUBE, Front Wheel, 4.10/3.50 x 6

$28.99

$

In Stock, only 1 left!

0

16

Simplicity 1611710SM

KLIP RING

$4.49

$

In Stock, Qty 20+

0
