1694494 - Simplicity Pacer 34" Walk-Behind Mower Engine Group - PTO (FI0001) Parts Diagram

Pacer 34" Walk-Behind Mower

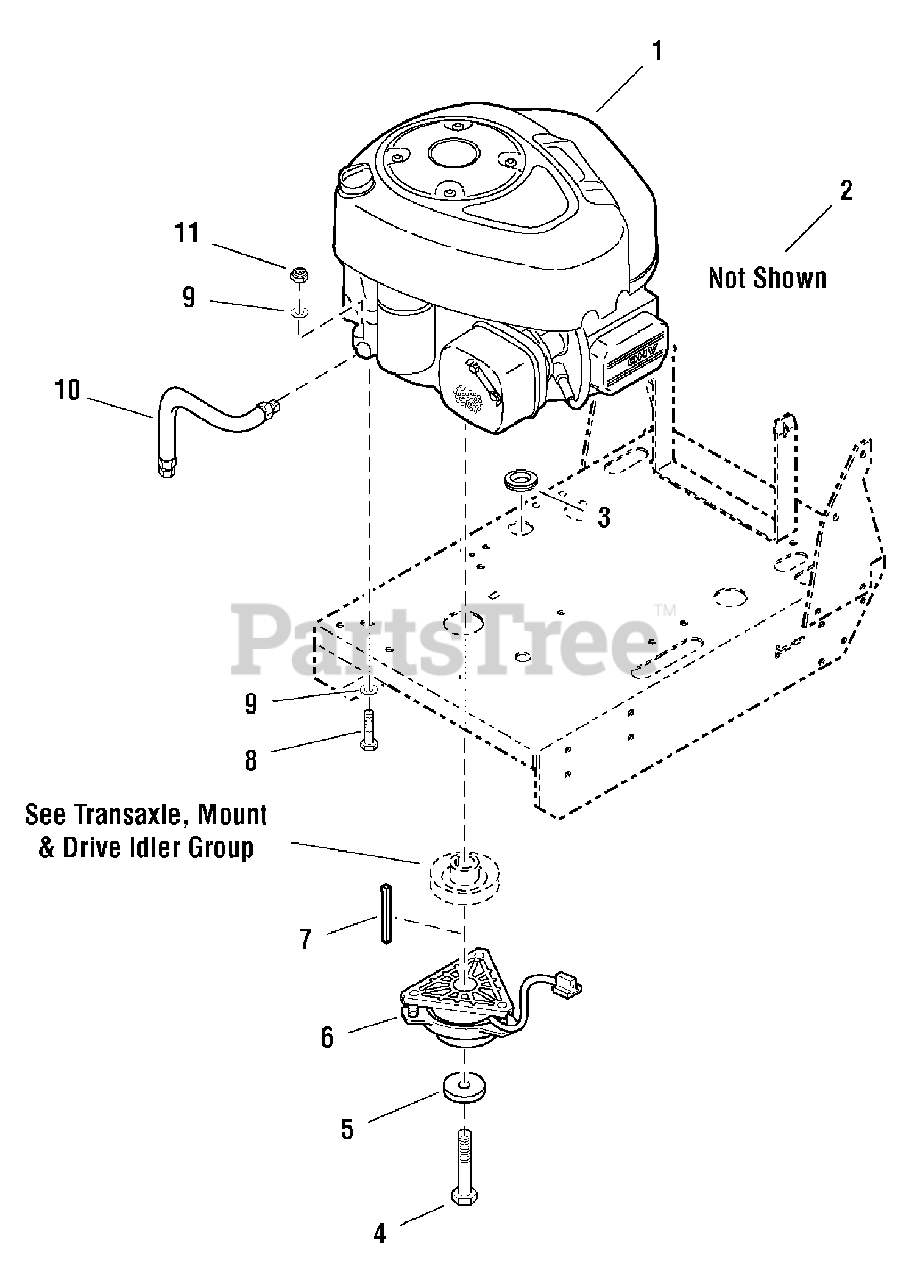

Engine Group - PTO (FI0001) Parts Diagram

  • Title

1

ENGINE, 13HP Briggs & Stratton, Model 28

$

$

Not available

2

Simplicity 5021178X3SM

FUEL FILTER

$

$

Not available

OIL FILTER

$

$

Not available

FOAM PRE-CLEANER

$

$

Not available

AIR FILTER

$

$

Not available

SPARK PLUG

$

$

Not available

MUFFLER

$

$

Not available

EXHAUST MANIFOLD

$

$

Not available

EXHAUST DEFLECTOR

$

$

Not available

EXHAUST MANIFOLD GASKET

$

$

Not available

3

Simplicity 5021379SM

GROMMET

$6.99

$

Usually ships in 2-12 days

0

4

Simplicity 5047632SM

CRANKSHAFT BOLT, 7/16 x 2-3/4

$5.99

$

Usually ships in 2-12 days

0

5

Simplicity 5042132SM

CLUTCH RETAINER
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

6

Simplicity 1686880SM

ELECTRIC CLUTCH
(Superseded to 1687746YP)

$376.99

$

Usually ships in 2-12 days

0

7

Simplicity 5050407X3SM

KEY, 1/4 Sq. x 2
(Superseded to 5050407X16SM)

$4.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025011X20

CAPSCREW, Hex Head, 5/16-18 x 2-1/2
(Superseded to 5025011X20FS)

$3.49

$

In Stock, only 1 left!

0

9

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 5048681SM

OIL DRAIN HOSE

$18.99

$

In Stock, only 1 left!

0

11

Simplicity 5025057SM

NUT, Hex Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 12

0
