1694494 - Simplicity Pacer 34" Walk-Behind Mower Transaxle SERVICE PARTS (5022905) Parts Diagram

Pacer 34" Walk-Behind Mower

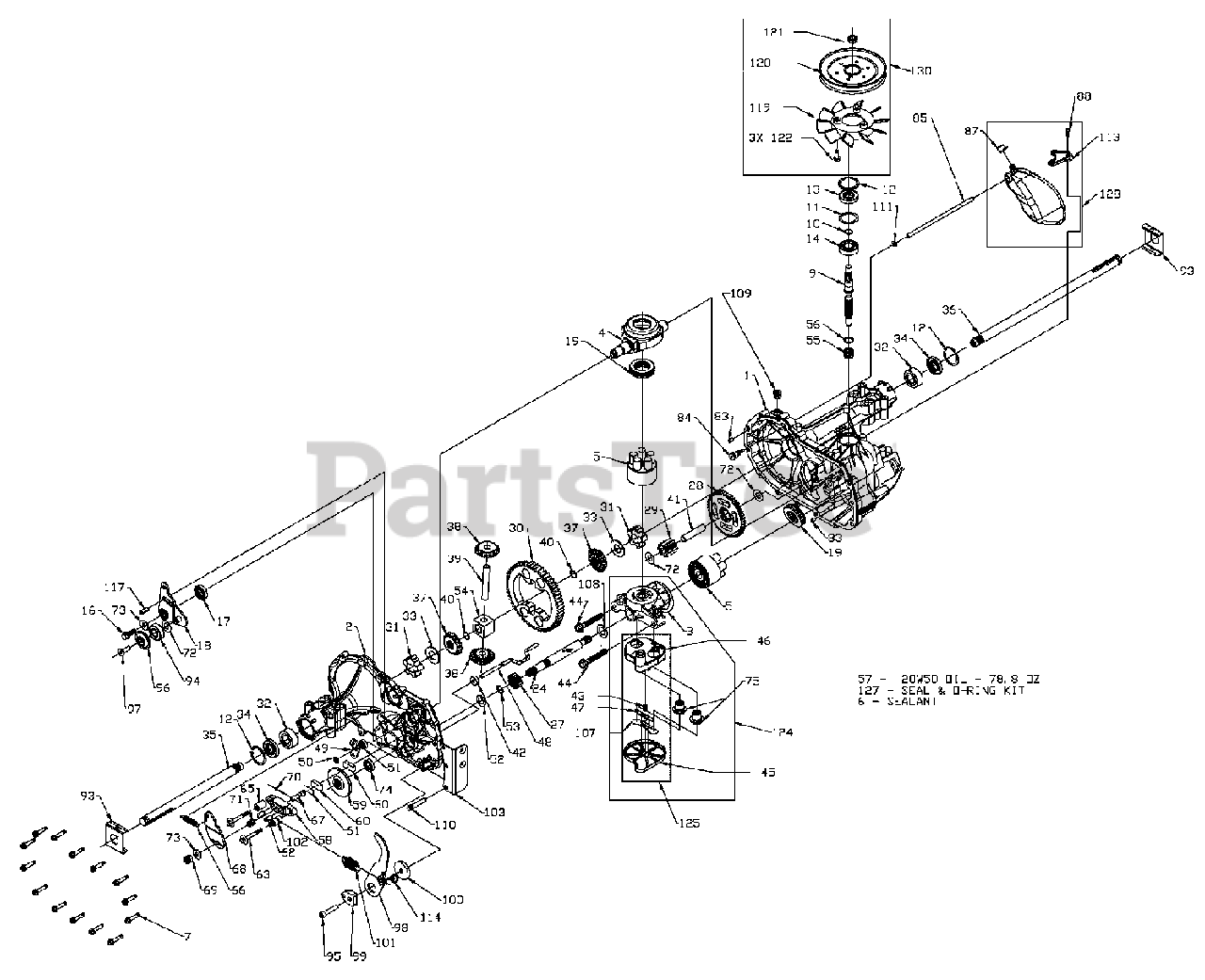

Transaxle SERVICE PARTS (5022905) Parts Diagram

  • Title

6

Simplicity 5229051

SEALANT

$

$

Not available

9

Simplicity 5022905X2

SHAFT, INPUT
(Superseded to 5022905X2SM)

$142.99

$

Usually ships in 2-12 days

0

10

Simplicity 5022905X3

RING - RETAINING

$

$

Not available

11

Simplicity 5022905X4

SPACER

$

$

Not available

12

Simplicity 5022905X5

RING - RETAINING
(Superseded to 5101026X4)

$12.99

$

Usually ships in 2-12 days

0

13

Simplicity 502290516

LIP SEAL

$

$

Not available

14

Simplicity 5022905X6

BALL BEARING

$

$

Not available

32

Simplicity 5022905X7SM

OUTBOARD SLEEVE BEARING

$15.99

$

Usually ships in 2-12 days

0

34

Simplicity 5022905X17SM

LIP SEAL

$14.99

$

Usually ships in 2-12 days

0

35

Simplicity 5022905X8

AXLE SHAFT - RH
(Superseded to 5022905X8SM)

$87.99

$

Usually ships in 2-12 days

0

36

Simplicity 5022905X9

AXLE SHAFT - LH
(Superseded to 5022905X9SM)

$100.99

$

Usually ships in 2-12 days

0

55

Simplicity 5022905X10

SPRING - HELICAL COMPRESSION
(Superseded to 5022905X10SM)

$3.99

$

Usually ships in 2-12 days

0

56

Simplicity 5022905X11

WASHER
(Superseded to 5022905X11SM)

$3.99

$

Usually ships in 2-12 days

0

57

Simplicity 502290512

20W-50 OIL

$

$

Not available

101

Simplicity 5022967SM

HYDRO RETURN SPRING

$16.99

$

Usually ships in 2-12 days

0

119

Simplicity 5022905X13SM

FAN, 6", 10 BLADE

$24.99

$

Usually ships in 2-12 days

0

128

Simplicity 5022905X14SM

EXPANSION TANK KIT

$38.99

$

Usually ships in 2-12 days

0

130

Simplicity 5022905X15SM

FAN/PULLEY KIT (includes Ref. 119)

$122.99

$

Usually ships in 2-12 days

0
