1694497 - Simplicity 60" Turbo Collector for Legacy XL 60" Turbo - Mounting Group Parts Diagram

60" Turbo Collector for Legacy XL

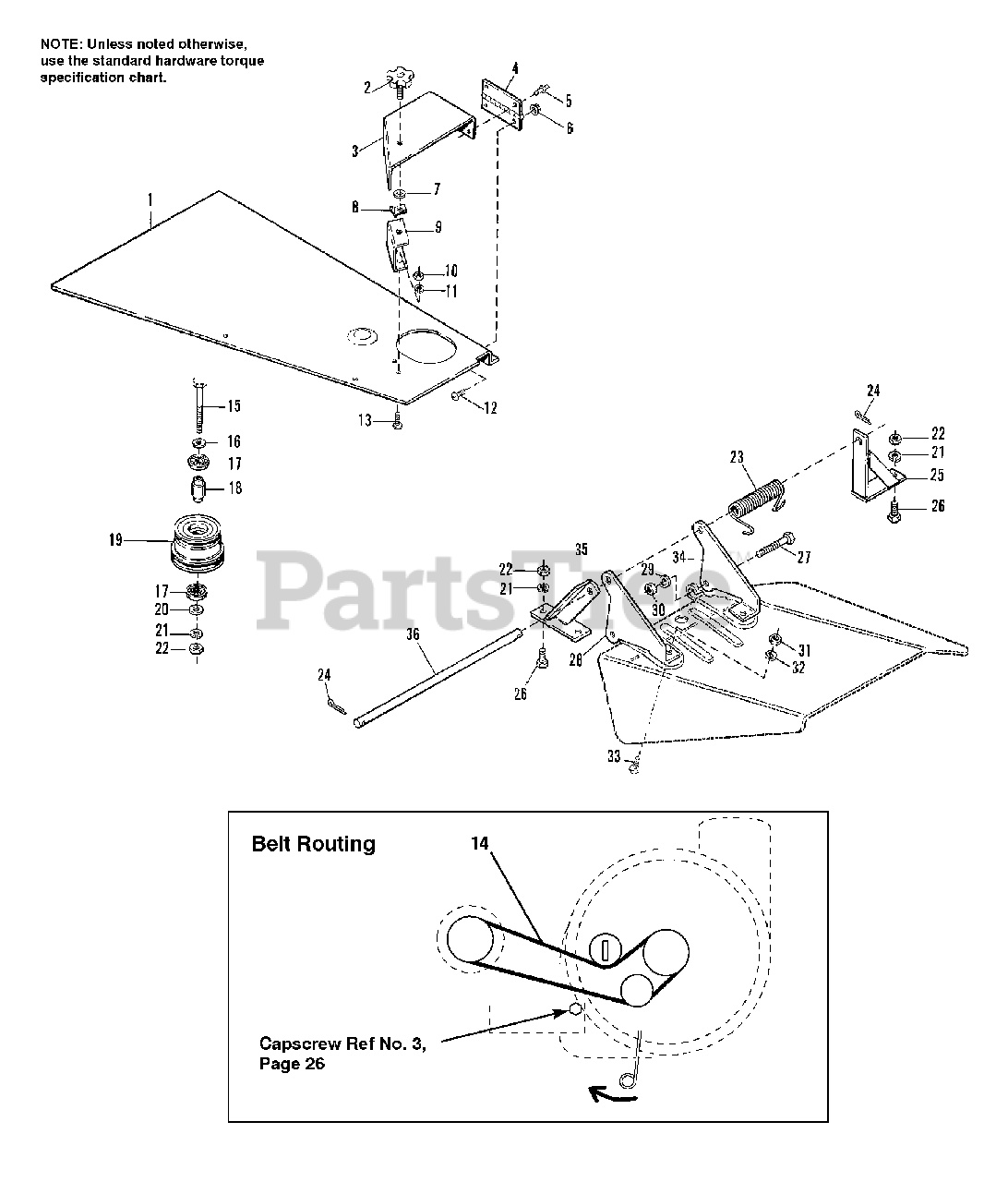

60" Turbo - Mounting Group Parts Diagram

  • Title

1

Simplicity 1725742ASM

COVER, LH Mower

$58.99

$

Usually ships in 2-12 days

0

2

Simplicity 1700669SM

KNOB, Plastic

$19.99

$

Usually ships in 2-12 days

0

3

Simplicity 1700639ASM

COVER ASSEMBLY
(Superseded to 1700728SM)

Note: (Incl. Ref. Nos. 4 & 5)

$

$

Not available

4

Simplicity 1700649SM

HINGE

$25.99

$

Usually ships in 2-12 days

0

5

Simplicity 2828707SM

POP-RIVET, 3/16 x 5/16

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 1928919SM

NUT, Hex Flange, #10-32

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 1933988SM

NUT, Push, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, Qty 7

0

9

Simplicity 1700654ASM

BRACKET, Belt Cover

$15.99

$

Usually ships in 2-12 days

0

10

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

11

Simplicity 1916964SM

WASHER, Lock, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

12

Simplicity 1922121SM

SCREW, Rd Hd Machine, #10-32 x 3/8

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 1921958SM

CAPSCREW, Hex Hd, 1/4-20 x 1/2

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 1679915SM

V-BELT
(Superseded to 1734009SM)

$47.99

$

In Stock, only 1 left!

0

15

Simplicity 1922918SM

CAPSCREW, Hex Hd, 3/8-16 x 3-1/4
(Superseded to 703874)

$4.49

$

In Stock, only 1 left!

0

16

Simplicity 2157424SM

WASHER, 3/8

Note: Special

$7.49

$

In Stock, Qty 5

0

17

Simplicity 1705897SM

BEARING

$8.49

$

In Stock, Qty 20+

0

18

Simplicity 1700651SM

SPACER, Pulley

$24.99

$

Usually ships in 2-12 days

0

19

Simplicity 1700650SM

PULLEY

$222.99

$

In Stock, only 1 left!

0

20

Simplicity 1700652SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

21

Simplicity 1916965SM

WASHER, Lock, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

22

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 12

0

23

Simplicity 1700852SM

SPRING, Torsion

$43.99

$

Usually ships in 2-12 days

0

24

Simplicity 1918447SM

PIN, Cotter, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1700832ASM

HINGE ASSEMBLY, Rear

$35.99

$

Usually ships in 2-12 days

0

26

Simplicity 1921210SM

CAPSCREW, Hex Hd, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

27

Simplicity 1926110SM

CAPSCREW, Hex Hd, 7/16-14 x 2-3/4

$6.49

$

Usually ships in 2-12 days

0

28

Simplicity 1700801ASM

BRACKET, LH Pivot

$43.99

$

Usually ships in 2-12 days

0

29

Simplicity 1918199SM

WASHER, Lock, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

30

Simplicity 1918213SM

NUT, Hex, 7/16-14

$4.99

$

In Stock, only 2 left!

0

31

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 1917356SM

WASHER, Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 1923325SM

CAPSCREW, Hex Hd, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 20+

0

34

Simplicity 1700802ASM

BRACKET, RH Pivot

$55.99

$

Usually ships in 2-12 days

0

35

Simplicity 1725923ASM

HINGE ASSEMBLY, Front

$133.99

$

Usually ships in 2-12 days

0

36

Simplicity 1700853SM

ROD, Pivot

$14.99

$

Usually ships in 2-12 days

0
