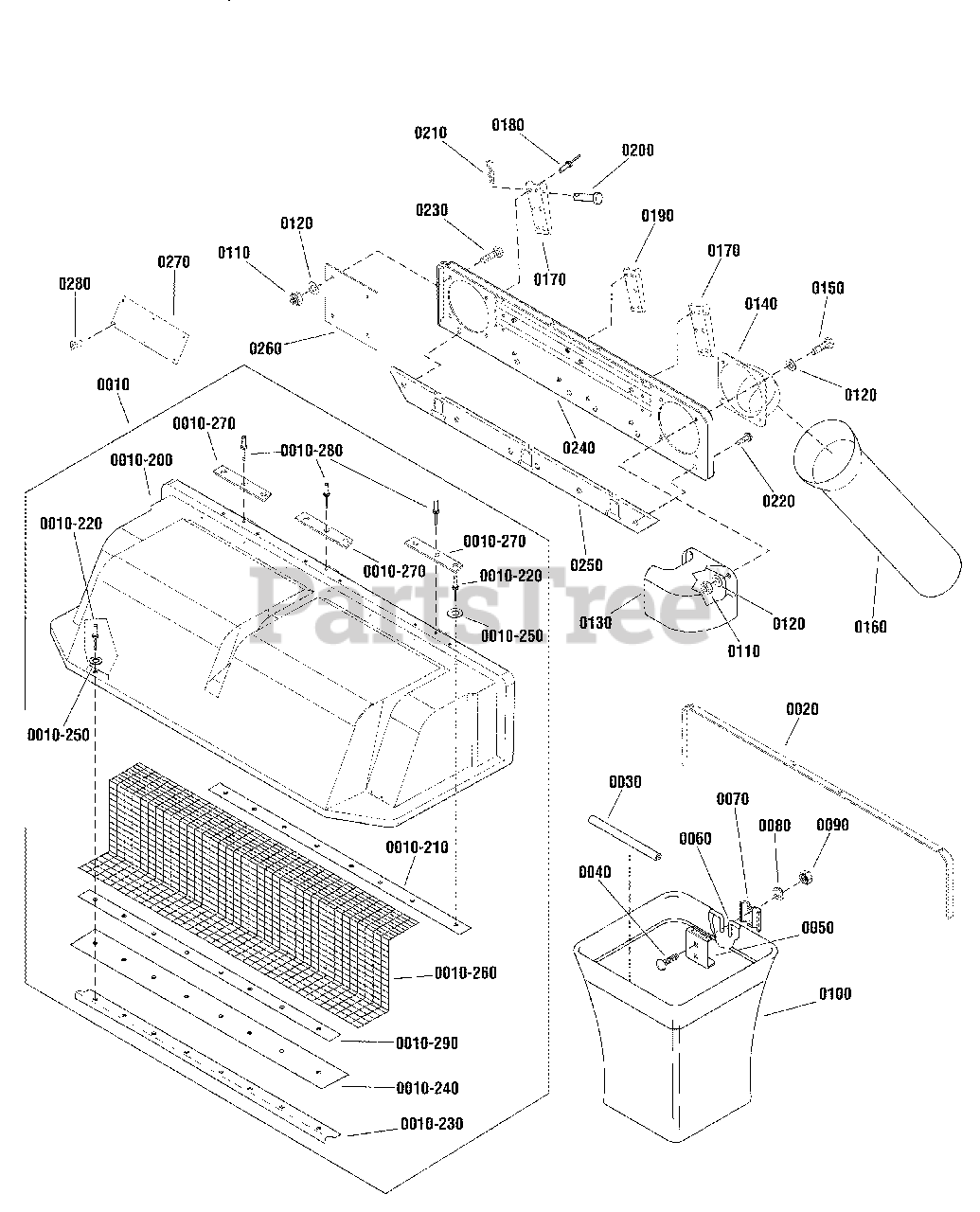

1694499 - Snapper Clean Sweep Turbo Triple Grass Catcher Cover & Bag Group Parts Diagram

Clean Sweep Turbo Triple Grass Catcher

Cover & Bag Group Parts Diagram

  • Title

0010

Snapper 1717025

COVER & SCREEN ASSEMBLY
(Superseded to 3046862YP)

$740.99

$

Usually ships in 2-12 days

0

0010-200

Snapper 1717026

COVER, Grass catcher
(Superseded to 3046862YP)

$740.99

$

Usually ships in 2-12 days

0

0010-210

Snapper 1716970A

CLAMP, Screen
(Superseded to 1716970ASM)

$42.99

$

Usually ships in 2-12 days

0

0010-220

Snapper 2825160

POP RIVET
(Superseded to 2825160SM)

$4.49

$

In Stock, Qty 8

0

0010-230

Snapper 1716972A

ANGLE, Screen
(Superseded to 1716972ASM)

$42.99

$

In Stock, only 2 left!

0

0010-240

Snapper 1716968

SEAL, Rubber
(Superseded to 1716968SM)

$32.99

$

Usually ships in 2-12 days

0

0010-250

Snapper 1910531

WASHER, Rivet 3/16
(Superseded to 1910531SM)

$3.99

$

Usually ships in 2-12 days

0

0010-260

Snapper 1717041

SCREEN, Black Poly
(Superseded to 1717041SM)

$43.99

$

Usually ships in 2-12 days

0

0010-270

Snapper 1717067A

PLATE & TUBE ASSEMBLY
(Superseded to 1717067ASM)

$30.99

$

Usually ships in 2-12 days

0

0010-280

Snapper 1960241

POP RIVET
(Superseded to 1960241SM)

$5.49

$

Usually ships in 2-12 days

0

0010-290

Snapper 1717524A

CLAMP, Seal
(Superseded to 1717524ASM)

$13.99

$

In Stock, only 2 left!

0

0020

Snapper 1717082

SEAL, Black Plastic
(Superseded to 1717082SM)

$70.99

$

Usually ships in 2-12 days

0

0030

Snapper 1675707

EDGING, 13 1/2
(Superseded to 1675707SM)

$6.49

$

In Stock, Qty 5

0

0040

Snapper 1931333

BOLT, Round Head Short Neck 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0050

Snapper 1703807A

HANGER, Grass Bag
(Superseded to 1703807ASM)

$21.99

$

Usually ships in 2-12 days

0

0060

Snapper 1703855A

HOOP, 1/2
(Superseded to 1703855ASM)

$139.99

$

In Stock, only 1 left!

0

0070

Snapper 1672023A

CLAMP, 10 ga.
(Superseded to 1672023ASM)

$11.99

$

Usually ships in 2-12 days

0

0080

Snapper 1917356

LOCKWASHER Spring 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0090

Snapper 1917372

NUT, Hex 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0100

Snapper 1703764

BAG, Grass
(Superseded to 5023290)

$205.99

$

Usually ships in 2-12 days

0

0110

Snapper 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 14

0

0120

Snapper 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 18

0

0130

Snapper 1717039

DEFLECTOR
(Superseded to 1717039SM)

$96.99

$

Usually ships in 2-12 days

0

0140

Snapper 1717038

DUCT, Inlet
(Superseded to 1717038SM)

$125.99

$

Usually ships in 2-12 days

0

0150

Snapper 1921333

CAPSCREW, Hex Head 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0160

Snapper 1719807

CHUTE, Upper
(Superseded to 1719807SM)

$152.99

$

Usually ships in 2-12 days

0

0170

Snapper 1720875A

BRACKET, Hinge
(Superseded to 1720875ASM)

$16.99

$

Usually ships in 2-12 days

0

0180

Snapper 1928707

POP RIVET
(Superseded to 703981)

$4.49

$

Usually ships in 2-12 days

0

0190

Snapper 1720945A

BRACKET, Hinge
(Superseded to 1720945ASM)

$12.99

$

Usually ships in 2-12 days

0

0200

Snapper 1672344

PIN, Round Head 3/8 x 2 3/4
(Superseded to 1672344SM)

$6.49

$

In Stock, Qty 8

0

0210

Snapper 1960074

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0220

Snapper 1925003

SCREW, Hex WasherHead, Taptite 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0230

Snapper 1921332

CAPSCREW, Hex Head 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

0240

Snapper 1716966A

PLATE & BRACE ASSEMBLY
(Superseded to 1716966ASM)

$225.99

$

Usually ships in 2-12 days

0

0250

Snapper 1716973A

CHANNEL & BRACKET ASSEMBLY
(Superseded to 1716973ASM)

$370.99

$

Usually ships in 2-12 days

0

0260

Snapper 1725969

COVER, Inlet
(Superseded to 1725969SM)

$29.99

$

Usually ships in 2-12 days

0

0270

Snapper 1732820

DECAL, warning
(Superseded to 1732820SM)

$77.99

$

In Stock, only 1 left!

0

0280

Snapper 1667248

CLIP, canoe
(Superseded to 1667248SM)

$3.49

$

Usually ships in 2-12 days
