1694537 - Simplicity 30" Mower Deck 30" Mower Deck - Housing & Height Adjustment Parts Diagram

30" Mower Deck

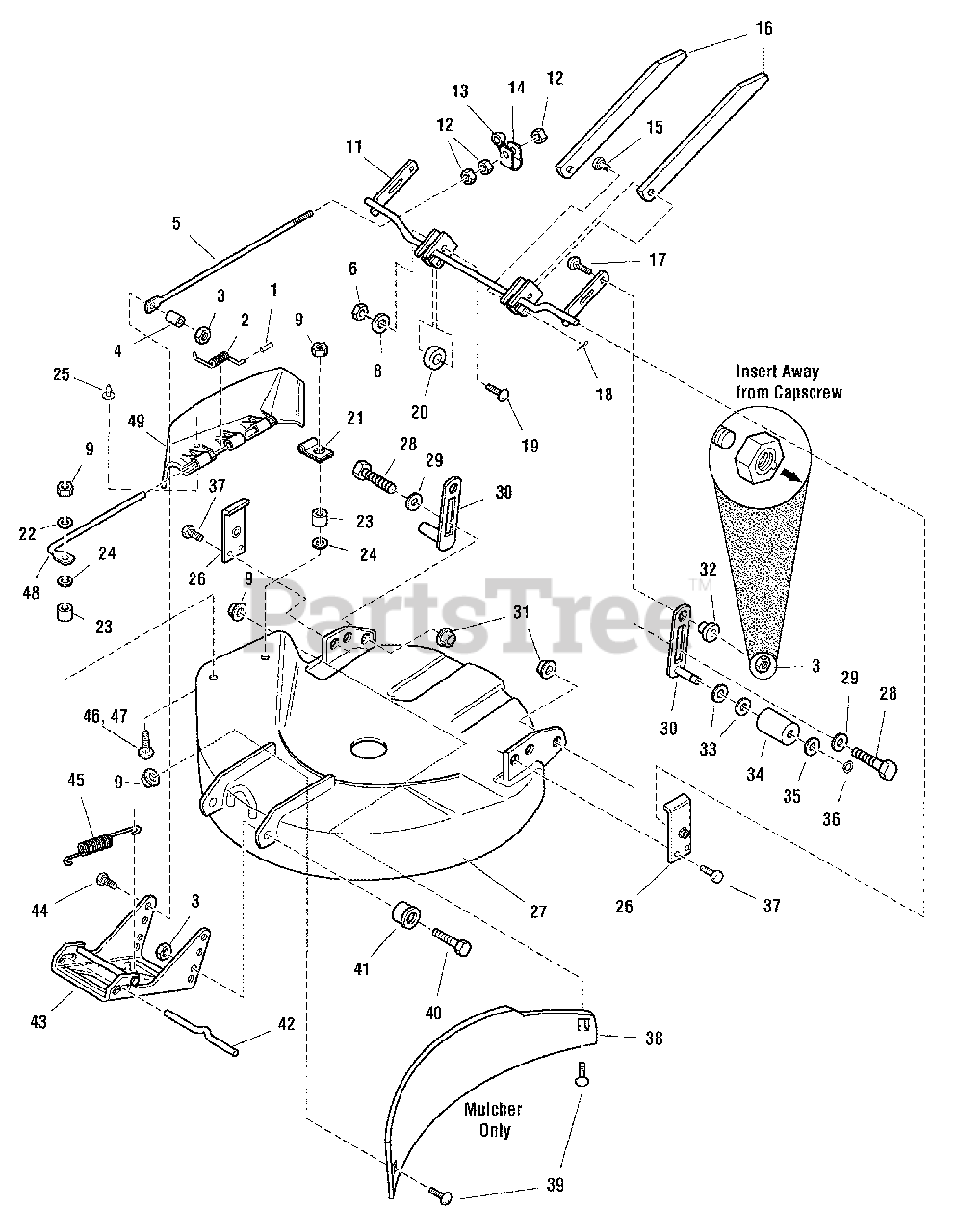

30" Mower Deck - Housing & Height Adjustment Parts Diagram

  • Title

1

Simplicity 1723323SM

CAP, Spring End

$4.99

$

In Stock, only 4 left!

0

2

Simplicity 7101082SM

SPRING, Torsion
(Superseded to 1759750YP)

$8.49

$

Usually ships in 2-12 days

0

3

Simplicity 2860681SM

NUT, Hex, ALUM Lock, 3/8

$4.49

$

In Stock, Qty 11

0

4

Simplicity 1611705SM

SPACER

$4.49

$

In Stock, only 2 left!

0

5

Simplicity 1707300SM

ROD, Adjustment

$20.99

$

Usually ships in 2-12 days

0

6

Simplicity 1927557SM

NUT, Hex Flange Whiz Lock, 5/16-18

$4.99

$

In Stock, Qty 10

0

8

Simplicity 1919326SM

WASHER

$4.49

$

In Stock, Qty 13

0

9

Simplicity 1920397SM

NUT, Hex ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 1707540ASM

ARM ASSEMBLY, Mower

$86.99

$

Usually ships in 2-12 days

0

12

Simplicity 1913744SM

JAMNUT, Hex, 3/8-16

$4.99

$

Usually ships in 2-12 days

0

13

Simplicity 1671260SM

SPACER
(Superseded to 703450)

$8.49

$

Usually ships in 2-12 days

0

14

Simplicity 1707280ASM

TRUNNION

$5.49

$

Usually ships in 2-12 days

0

15

Simplicity 1655651SM

PIN, Locking
(Superseded to 1733568SM)

$6.99

$

In Stock, Qty 5

0

16

Simplicity 1709209ASM

BAR, Mower Transport

$

$

Not available

17

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2

$4.49

$

In Stock, Qty 8

0

18

Simplicity 1960074SM

PIN, Retaining
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 1960223SM

CARRIAGE BOLT, 5/15-18 x 1-1/4
(Superseded to 703446)

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 1704716SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

21

Simplicity 1704873SM

CLAMP

$4.49

$

In Stock, only 4 left!

0

22

Simplicity 1921319SM

WASHER, Plain (1 Required for Export)
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

23

Simplicity 1700692SM

SPACER (Export)

$45.99

$

Usually ships in 2-12 days

0

24

Simplicity 1960518SM

PUSHNUT, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 13

0

25

Simplicity 1718611SM

PLUG, Hole

$5.99

$

Usually ships in 2-12 days

0

26

Simplicity 1708250ASM

PLATE, Pivot Support

$9.99

$

Usually ships in 2-12 days

0

27

Simplicity 1685670SM

HOUSING ASSEMBLY, 30" (Orange)

$706.99

$

Usually ships in 2-12 days

0

27

Simplicity 1687157SM

HOUSING ASSEMBLY, 30" (Red)

$360.99

$

Usually ships in 2-12 days

0

27

Simplicity 1687135SM

HOUSING ASSEMBLY, 30" (Black)

$

$

Not available

28

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

29

Simplicity 1924361SM

WASHER, Flat
(Superseded to 703451)

$4.49

$

In Stock, Qty 11

0

30

Simplicity 1708519ASM

SUPPORT ASSEMBLY, Roller

$176.99

$

Usually ships in 2-12 days

0

31

Simplicity 1928352SM

NUT, Hex, Flange, Whizlock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 9

0

32

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 11

0

33

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 16

0

34

Simplicity 1668487SM

ROLLER

$9.99

$

In Stock, Qty 20+

0

35

Simplicity 1960020SM

WASHER, 21/32 x 1-1/8 x 1/16

$4.49

$

In Stock, Qty 20+

0

36

Simplicity 2153124SM

RING, Retaining

$5.99

$

In Stock, Qty 20+

0

37

Simplicity 1664847SM

CAPSCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

39

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 1709282ASM

PLATE, Discharge (30" Mulcher)

$365.99

$

In Stock, only 1 left!

0

40

Simplicity 1921968SM

CAPSCREW, Hex, 3/8-16 x 1 3/8

$4.49

$

In Stock, Qty 5

0

41

Simplicity 1732443SM

SPACER

$5.99

$

In Stock, only 4 left!

0

42

Simplicity 1715759SM

ROD, Latch, Hitch

$7.99

$

In Stock, Qty 5

0

43

Simplicity 1707432ASM

HITCH ASSEMBLY

$149.99

$

Usually ships in 2-12 days

0

44

Simplicity 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

45

Simplicity 2156302SM

SPRING

$6.49

$

In Stock, Qty 10

0

46

Simplicity 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, Qty 5

0

47

Simplicity 1931320SM

CARRIAGE BOLT, 1/4-20 x 1-1/4 (Export)
(Superseded to 703178)

$3.99

$

In Stock, only 2 left!

0

48

Simplicity 1664947SM

ROD, Deflector

$43.99

$

In Stock, only 1 left!

0

49

Simplicity 1705449SM

DEFLECTOR, Plastic

$122.99

$

In Stock, Qty 10

0
