1694545 - Simplicity Hitch & Tube Group Hitch and Tube Group Parts Diagram

Hitch & Tube Group

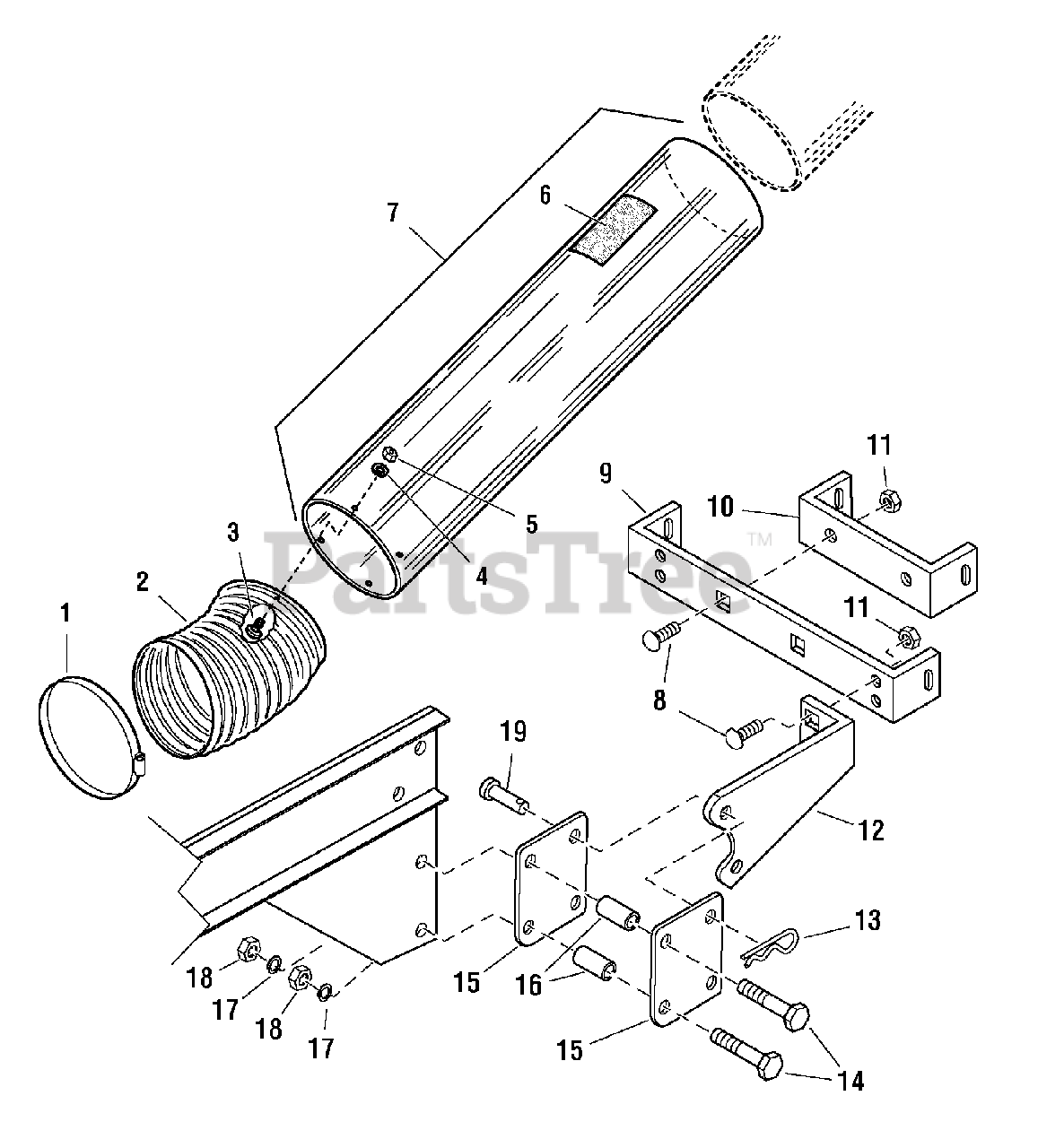

Hitch and Tube Group Parts Diagram

  • Title

1

Simplicity 1679896SM

CLAMP, Hose 6", Band Type

$11.99

$

In Stock, only 1 left!

0

2

Simplicity 1679895SM

HOSE, Vac Col, 6 x 12

$164.99

$

Usually ships in 2-12 days

0

3

Simplicity 1930531SM

SCREW, Truss Head Phillips, #10-32 x 1/2

$4.49

$

Usually ships in 2-12 days

0

4

Simplicity 1910531SM

WASHER, #10-32

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1928919SM

NUT, Hex Washer Assembly, #10-32

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 1675766SM

DECAL, Cleaning Instructions

$

$

Not available

7

Simplicity 1700773SM

TUBE & DECAL ASSEMBLY (Includes Ref. No. 6)
(Superseded to 1700774YP)

$231.99

$

Usually ships in 2-12 days

0

8

Simplicity 1960268SM

CARRIAGE BOLT, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 14

0

9

Simplicity 1724807SM

HITCH, Cross Bar
(Superseded to 1724807ASM)

$49.99

$

Usually ships in 2-12 days

0

10

Simplicity 1725599SM

HITCH, Inner
(Superseded to 1725599ASM)

$47.99

$

Usually ships in 2-12 days

0

11

Simplicity 1919438SM

NUT, Hex, Nylock, 3/8-16
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

12

Simplicity 1725600SM

SIDE PLATE
(Superseded to 1725600ASM)

$18.99

$

Usually ships in 2-12 days

0

13

Simplicity 1960033SM

PIN, Hair

$3.49

$

In Stock, Qty 5

0

14

Simplicity 1960462SM

CAPSCREW, Hex, 1/2-13 x 2-1/2
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

15

Simplicity 1724826ASM

INNER SUPPORT

$16.99

$

In Stock, only 1 left!

0

16

Simplicity 1723163SM

SPACER

$7.99

$

Usually ships in 2-12 days

0

17

Simplicity 1916966SM

WASHER, Lock, 1/2
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 1916951SM

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

19

Simplicity 1725049SM

PIN, Clevis

$8.99

$

Usually ships in 2-12 days

0
