1694581 - Simplicity Walk-Behind Leaf Blower, 6.5hp Briggs & Stratton Illustrated Parts List (smlbc_s1) Parts Diagram

Walk-Behind Leaf Blower, 6.5hp Briggs & Stratton

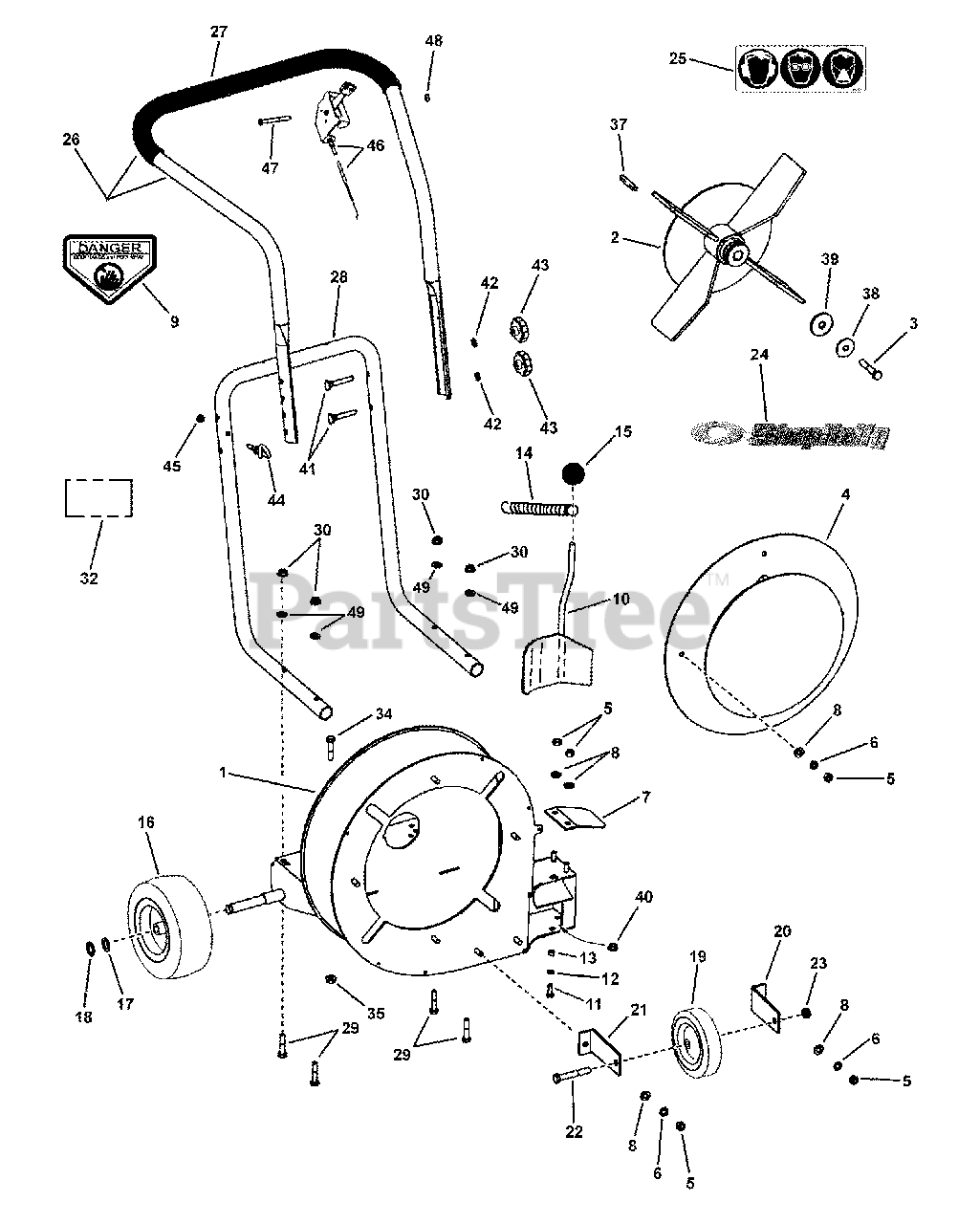

Illustrated Parts List (smlbc_s1) Parts Diagram

  • Title

1

Simplicity 3010003SM

BASE & HOUSING ASSEMBLY, 52 Classic

$

$

Not available

2

Simplicity 3021506SM

IMPELLER ASSEMBLY, Steel 4 Blade 15.00 O.D.
(Superseded to 7043287YP)

$456.99

$

Usually ships in 2-12 days

0

3

Simplicity 7090167SM

CAPSCREW, 3/8-24 x 2 Hex Head, GR5

$

$

Not available

4

Simplicity 3020234SM

INTAKE BAFFLE ASSEMBLY

$

$

Not available

5

Simplicity 7091511SM

NUT, 5/16-18 Hex, GR5 or B

$3.49

$

In Stock, only 4 left!

0

6

Simplicity 7091315SM

WASHER, 5/16 Split Lock
(Superseded to 5025170SM)

$4.49

$

In Stock, only 3 left!

0

7

Simplicity 3024507SM

DEFLECTOR, Side Air

$

$

Not available

8

Simplicity 7090188SM

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 7013010SM

DECAL, Danger, Cut Finger

$9.99

$

In Stock, Qty 6

0

10

Simplicity 3024508SM

DOOR FRONT/SIDE DISCHARGE ASSEMBLY

$

$

Not available

11

Simplicity 7091495SM

CAPSCREW, 1/4-20 x 3/4 Hex Head, GR5
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 7027223SM

WASHER, .263 x .375 x .062 Split Lock

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 3031014SM

BUSHING, Steel Sleeve .250 ID x .375 OD x .25 Long

$11.99

$

Usually ships in 2-12 days

0

14

Simplicity 3071782SM

SPRING, Extension (was 3024502)

$

$

Not available

15

Simplicity 7012659SM

KNOB, #230 Dimco

$

$

Not available

16

Simplicity 3033001SM

WHEEL & TIRE ASSEMBLY, Sawtooth 4.10/3.50-4 Kenda

$

$

Not available

--

Simplicity 3033151SM

BALL BEARING, 5/8 x 1-3/8 (not shown, included with Ref. No. 16 each wheel assembly has 2 bearings)

$

$

Not available

17

Simplicity 7091628SM

WASHER, .64 x .99 x .05 Flat

$4.49

$

In Stock, only 2 left!

0

18

Simplicity 7012763SM

RING, External Retaining (TRU1500-62)

$4.49

$

In Stock, only 4 left!

0

19

Simplicity 3033017SM

WHEEL, 6.00 x 1.50 Semi-Pneumatic

$

$

Not available

20

Simplicity 3033101SM

BRACKET, Caster - RH

$17.99

$

Usually ships in 2-12 days

0

21

Simplicity 3033102SM

BRACKET, Caster - LH

$17.99

$

Usually ships in 2-12 days

0

22

Simplicity 7091501SM

CAPSCREW, 3/8-16 x 2-1/2 Hex Head, GR5
(Superseded to 84007037)

$2.99

$

In Stock, only 2 left!

0

23

Simplicity 7091585SM

NUT, 3/8-16 Hex Center Lock, GR5 or B
(Superseded to 703347)

$4.99

$

In Stock, Qty 8

0

--

Simplicity 3033003SM

ASSEMBLY, Front Caster (Includes Ref. No. 19 thru 23)

$

$

Not available

24

Simplicity 1722551SM

DECAL, Simplicity Logo

$12.99

$

In Stock, only 2 left!

0

25

Simplicity 7075893SM

DECAL, Personal Protection

$

$

Not available

26

Simplicity 3023270SM

ASSEMBLY, Upper Handle & Grip - Narrow (p/n 3033876 + grip)

$132.99

$

Usually ships in 2-12 days

0

27

Simplicity 7074422SM

GRIP, 1.0 x 21-1/2 Foam

$

$

Not available

28

Simplicity 7033877SM

HANDLE, Lower Folding- Narrow- Blower

$101.99

$

Usually ships in 2-12 days

0

29

Simplicity 1922127SM

CAPSCREW, 5/16-18 x 1-3/4 Hex Head, GR5
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 16

0

30

Simplicity 5025057SM

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

31

ENGINE, 6 HP Briggs & Stratton Intek (not shown) Model 126312, Type 0163-E2

$

$

Not available

32

DECAL, 5.5 HP Briggs & Stratton

$

$

Not available

33

Simplicity 7033874SM

DECAL, Thrown Objects, Large (not shown)

$

$

Not available

34

Simplicity 1921221SM

CAPSCREW, 5/16-18 x 1-1/2 Hex Head, GR5 (Engine Mounting Hardware)
(Superseded to 703906)

$4.99

$

In Stock, only 3 left!

0

35

Simplicity 1931277SM

NUT, 5/16-18 Hex Flange Lock, GR5 (Engine Mounting Hardware)
(Superseded to 703409)

$5.99

$

In Stock, Qty 17

0

36

Simplicity 7090517SM

WASHER, 3/8 Flat (not shown, Left Front Engine Mounting Bolt)

$4.49

$

In Stock, Qty 8

0

37

Simplicity 7010210SM

KEY, 1/4 Square x 2
(Superseded to 703890)

$5.49

$

In Stock, only 1 left!

0

38

Simplicity 7012063SM

WASHER, .411/.406 I.D. Cone
(Superseded to 703963)

$6.99

$

In Stock, only 3 left!

0

39

Simplicity 7091962SM

WASHER, .468 x 1.625 x .25 Flat

$8.49

$

Usually ships in 2-12 days

0

40

Simplicity 3031220SM

BUSHING, Flanged .375 x .500 x .25 (.625 x .063 Flange)

$

$

Not available

41

Simplicity 7091740SM

CARRIAGE BOLT, 5/16-18 x 2, GR2

$3.49

$

In Stock, Qty 11

0

42

Simplicity 7090391SM

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

43

Simplicity 3071776SM

KNOB, Folding Handle

$2.99

$

Usually ships in 2-12 days

0

44

Simplicity 7046465SM

GUIDE, Rope

$

$

Not available

45

Simplicity 7090372SM

NUT, 1/4-20 Hex Center Lock, GR5 or B
(Superseded to 703954)

$5.49

$

In Stock, Qty 11

0

46

Simplicity 3071800SM

THROTTLE CONTROL, Briggs & Stratton

$55.99

$

Usually ships in 2-12 days

0

47

Simplicity 1921963SM

CAPSCREW, 1/4-20 x 2 Hex Head, GR5
(Superseded to 5025010X16FS)

$3.99

$

Usually ships in 2-12 days

0

48

Simplicity 7076978SM

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

49

Simplicity 1717312SM

WASHER, 5/16 Curved

$

$

Not available

50

Simplicity 7033686SM

DECAL, Warning- Leaf Blower (not shown)

$

$

Not available
