1694692 - Simplicity Hitch & Tube Group Hitch and Tube Group Parts Diagram

Hitch & Tube Group

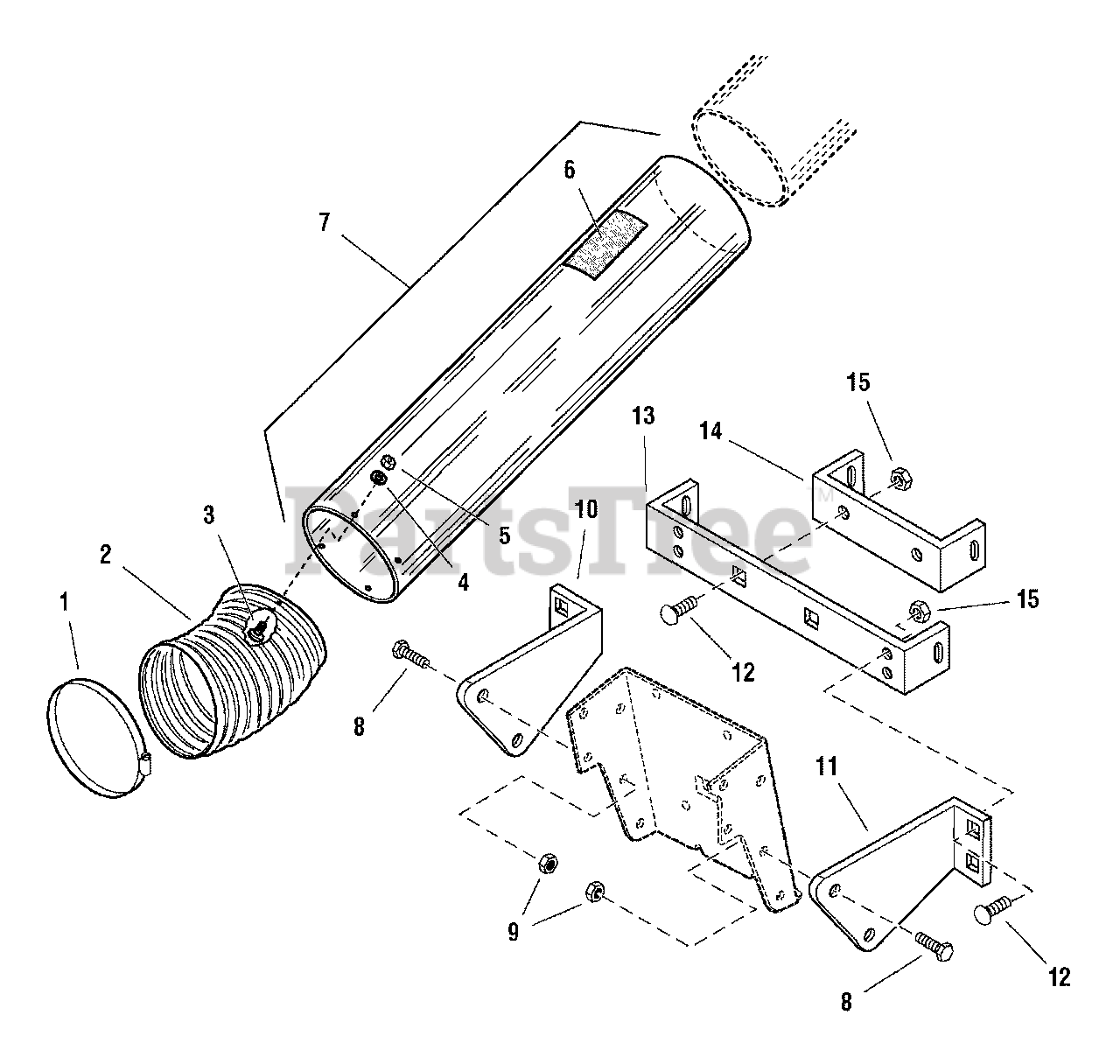

Hitch and Tube Group Parts Diagram

  • Title

1

Simplicity 1679896SM

CLAMP, Hose 6", Band Type

$11.99

$

Usually ships in 2-12 days

0

2

Simplicity 1679895SM

HOSE, Vac Col, 6 x 12

$174.99

$

Usually ships in 2-12 days

0

3

Simplicity 1930531SM

SCREW, Truss Head Phillips, #10-32 x 1/2

$4.49

$

In Stock, only 2 left!

0

4

Simplicity 1910531SM

WASHER, #10-32

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1928919SM

NUT, Hex Washer Assembly, #10-32

$3.99

$

In Stock, Qty 13

0

6

Simplicity 1675766SM

DECAL, Cleaning Instructions

$

$

Not available

7

Simplicity 1700773SM

TUBE & DECAL ASSEMBLY (Includes Ref. No. 6)
(Superseded to 1700774YP)

$245.99

$

Usually ships in 2-12 days

0

8

Simplicity 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 1 left!

0

9

Simplicity 1930645SM

NUT, Hex Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

10

Simplicity 1727133ASM

BRACKET, LH

$

$

Not available

11

Simplicity 1727132ASM

BRACKET, RH

$45.99

$

Usually ships in 2-12 days

0

12

Simplicity 1960268SM

CARRIAGE BOLT, 3/8-16 x 1-1/4

$4.49

$

In Stock, only 3 left!

0

13

Simplicity 1724807SM

CROSS BAR
(Superseded to 1724807ASM)

$

$

Not available

14

Simplicity 1725599SM

HITCH, Inner
(Superseded to 1725599ASM)

$

$

Not available

15

Simplicity 1919439SM

NUT, Nylock, 3/18-16
(Superseded to 703117)

$3.99

$

In Stock, Qty 20+

0
