1694768 - Simplicity Citation Zero-Turn Mower, 23hp Briggs & Stratton Main Frame & Front Caster Group (197FRM0) Parts Diagram

Citation Zero-Turn Mower, 23hp Briggs & Stratton

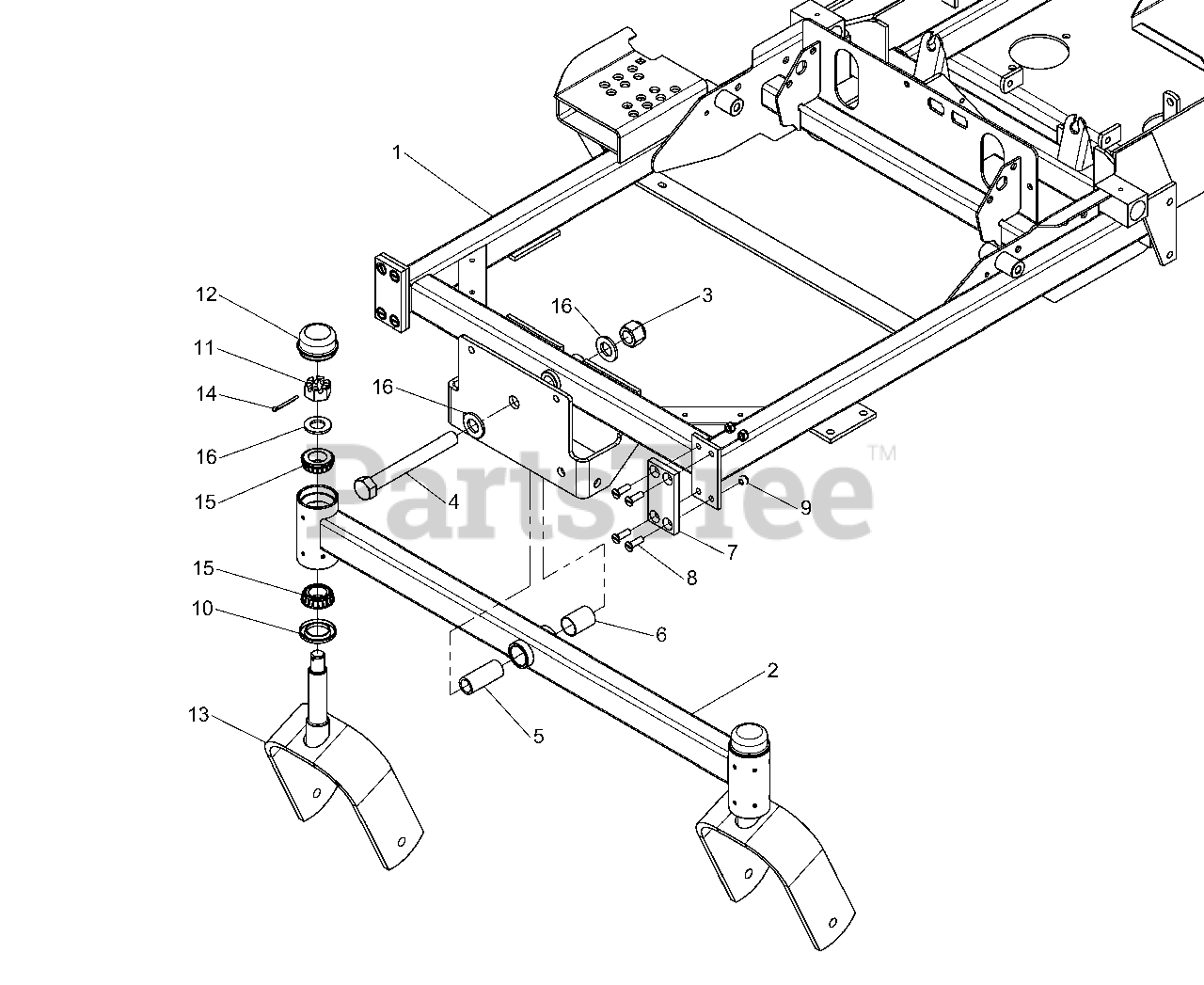

Main Frame & Front Caster Group (197FRM0) Parts Diagram

  • Title

1

Simplicity 5049958C

MAIN FRAME ASSEMBLY (Early Models)

$

$

Not available

1

Simplicity 5400257C

MAIN FRAME ASSEMBLY (Later Models with ROPS)

$

$

Not available

2

Simplicity 5061365CSM

PIVOTING FRONT END ASSEMBLY

$259.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025284SM

NUT, 3/4-16 Hex Nylon Lock

$3.49

$

In Stock, only 2 left!

0

4

Simplicity 5025265X52SM

BOLT, 3/4-16 X 6-1/2"

$16.99

$

In Stock, Qty 18

0

5

Simplicity 5047489SM

SPACER, .75 X 1.00 X 2.38

$37.99

$

In Stock, only 2 left!

0

6

Simplicity 5022852SM

PIVOT BEARING

$34.99

$

In Stock, Qty 20+

0

7

Simplicity 5045990SM

FRICTION PLATE

$21.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025594

SCREW, 5/16-18 X 1 PHILLIPS HD, BZ
(Superseded to 5025594YP)

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 5025057SM

NUT 5/16-18 Hex Nylon Lock
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 5021072SM

GREASE SEAL

$7.99

$

In Stock, Qty 20+

0

11

Simplicity 5025104SM

NUT, 3/4-16 Hex Slotted
(Superseded to 1960387SM)

$6.49

$

In Stock, only 2 left!

0

12

Simplicity 5021073SM

CAP

$7.99

$

In Stock, Qty 20+

0

13

Simplicity 5047049CSM

CASTER YOKE
(Superseded to 5600098SM)

$187.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025203X10SM

COTTER PIN, 1/4" x 1-1/4"

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 5020884SM

BEARING, Tapered Roller

$26.99

$

In Stock, Qty 20+

0

16

Simplicity 5025160SM

WASHER, 3/4" SAE

$4.49

$

In Stock, Qty 7

0

17

Simplicity 5100328

PIVOT BEARING

$

$

Not available
