1694769 - Simplicity Citation Zero-Turn Mower, 21hp Briggs & Stratton Rear Suspension Group (197SUSR0) Parts Diagram

Citation Zero-Turn Mower, 21hp Briggs & Stratton

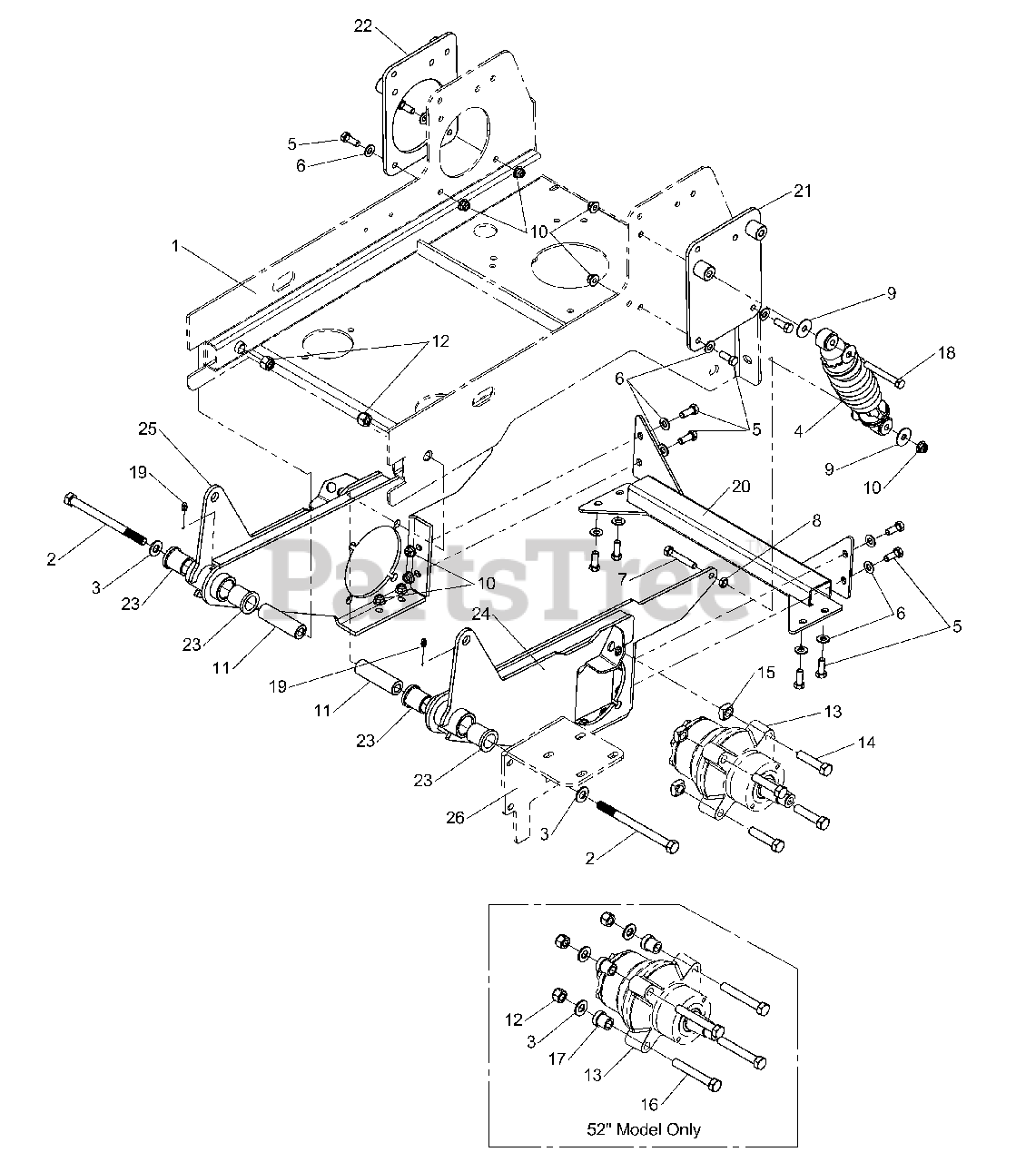

Rear Suspension Group (197SUSR0) Parts Diagram

  • Title

1

MAIN FRAME (See Main Frame Group)

$

$

Not available

2

Simplicity 5025017X52SM

BOLT, 1/2-13 X 6-1/2"

$10.99

$

In Stock, Qty 8

0

3

Simplicity 5025158SM

WASHER, 1/2" SAE

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 5023436SM

SHOCK ASSEMBLY

$223.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1"

$3.99

$

In Stock, only 1 left!

0

6

Simplicity 5025156SM

WASHER, 3/8" SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 15

0

7

Simplicity 5025058X18

BOLT, 3/8-16 X 2-1/4" TFL
(Superseded to 5025058X18YP)

$7.99

$

In Stock, only 1 left!

0

8

Simplicity 5025084SM

NUT, 3/8-16 Hex Jam

$3.49

$

In Stock, Qty 13

0

9

Simplicity 5025165SM

WASHER, 3/8" FENDER

$4.49

$

In Stock, Qty 12

0

10

Simplicity 5025394SM

NUT, 3/8-16 Hex Nylock Flange

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 5061339SM

SPACER, .52 X 1.00 X 3.42

$14.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025056SM

NUT, 1/2-13 Hex Nylon Lock
(Superseded to 7091325YP)

$4.99

$

In Stock, only 4 left!

0

13

WHEEL MOTOR

Note: (See Hydraulic Group)

$

$

Not available

14

Simplicity 5023481

BOLT, 1/2-13 X 2-1/4" w/ Loctite Patch
(Superseded to 5023481SM)

$5.99

$

Usually ships in 2-12 days

0

15

Simplicity 5025330

NUT, 1/2-13 Square
(Superseded to 5025330SM)

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 5025017X28SM

BOLT, 1/2-13 X 3-1/2"

$5.99

$

In Stock, only 4 left!

0

17

Simplicity 5061670SM

SPACER, .53 X 1.00 X 1.00
(Superseded to 5102689YP)

$5.99

$

In Stock, only 1 left!

0

18

Simplicity 5025013X24SM

BOLT, 3/8-16 X 3"

$4.49

$

In Stock, Qty 5

0

19

Simplicity 5020020SM

GREASE FITTING

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 5600186

KIT, TIE BAR (Early Models)

Note: (Includes Mounting Hardware)

$124.99

$

Usually ships in 2-12 days

0

20

Simplicity 5600190

KIT, TIE BAR (Later Models with ROPS)

Note: (Includes Mounting Hardware)

$182.99

$

In Stock, only 1 left!

0

21

Simplicity 5061750CSM

FRAME SUPPORT, LH

$

$

Not available

22

Simplicity 5061752CSM

FRAME SUPPORT, RH

$55.99

$

Usually ships in 2-12 days

0

23

Simplicity 5021541SM

BUSHING, Flange

$10.99

$

In Stock, Qty 20+

0

24

Simplicity 5049813CSM

MOTOR MOUNT, RH (Early Models)

$

$

Not available

24

Simplicity 5400020CSM

MOTOR MOUNT, RH (Later Models with ROPS)

$267.99

$

Usually ships in 2-12 days

0

25

Simplicity 5049812C

MOTOR MOUNT, LH (Early Models)

$

$

Not available

25

Simplicity 5400019C

MOTOR MOUNT, LH (Later Models with ROPS)

$

$

Not available

26

TANK MOUNT (See Fuel Tank & Mount Group)

$

$

Not available
