1694863 - Simplicity 44" Mower Deck 44" Mower Deck - Height Adjustment Group (987052) Parts Diagram

44" Mower Deck

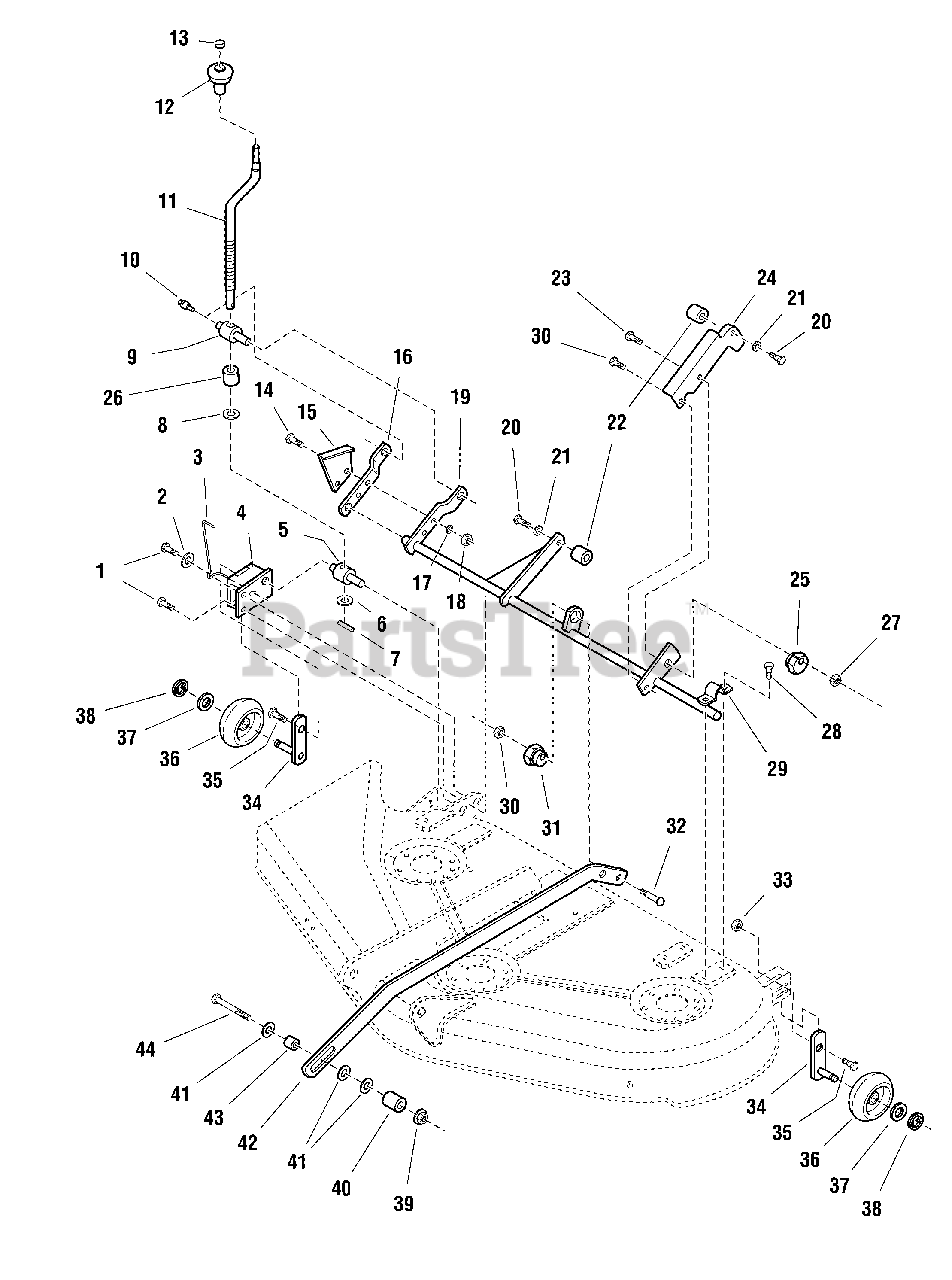

44" Mower Deck - Height Adjustment Group (987052) Parts Diagram

  • Title

1

Simplicity 1931202SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, Qty 13

0

2

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, Qty 9

0

3

Simplicity 1704114SM

ROD, Indicator Height of Cut

$16.99

$

In Stock, only 2 left!

0

4

Simplicity 1726424ASM

PLATE & BRACKET ASSEMBLY, Guage Wheel

$29.99

$

Usually ships in 2-12 days

0

5

Simplicity 1724009SM

TRUNNION, 1-1/4

$

$

Not available

6

Simplicity 1704097SM

WASHER, Detent

$4.49

$

In Stock, only 1 left!

0

7

Simplicity 2816001SM

PIN, Spring

$4.49

$

In Stock, only 1 left!

0

8

Simplicity 1960170SM

WASHER, 9/16
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

9

Simplicity 1715892SM

TRUNNION, 1-1/4

$39.99

$

Usually ships in 2-12 days

0

10

Simplicity 1704314SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

11

Simplicity 1727681SM

CRANK, Height Adjustment

$140.99

$

Usually ships in 2-12 days

0

12

Simplicity 1714084SM

KNOB, Spinner, Soft

$12.99

$

In Stock, Qty 5

0

13

Simplicity 1960093SM

NUT, Push
(Superseded to 703948)

$4.49

$

In Stock, Qty 11

0

14

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G5
(Superseded to 703570)

$4.99

$

In Stock, Qty 8

0

15

Simplicity 1704116ASM

BRACKET, Height of Cut
(Superseded to 1704116BMYP)

$11.99

$

Usually ships in 2-12 days

0

16

Simplicity 1726409ASM

ARM, Rear

$7.49

$

Usually ships in 2-12 days

0

17

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1727768ASM

ARM ASSEMBLY, Roller Bar 44"

$102.99

$

Usually ships in 2-12 days

0

20

Simplicity 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1, G5
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

21

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

22

Simplicity 1716010SM

SPACER, Support

$23.99

$

Usually ships in 2-12 days

0

23

Simplicity 1960655SM

CARRIAGE BOLT, 5/16-18 x 1-1/4, G5
(Superseded to 703446)

$4.49

$

Usually ships in 2-12 days

0

24

Simplicity 1718136ASM

ARM, Rear Adjustable

$20.99

$

Usually ships in 2-12 days

0

25

Simplicity 1714879SM

CAM, Eccentric, Hex

$7.99

$

Usually ships in 2-12 days

0

26

Simplicity 1709195SM

SPACER

$5.99

$

In Stock, Qty 13

0

27

Simplicity 2860643SM

NUT, Hex Flange Collar Lock, 5/16-18

$3.49

$

In Stock, only 4 left!

0

28

Simplicity 1664847SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 1665374SM

STRAP, Arm Assembly
(Superseded to 1761690HYP)

$7.99

$

In Stock, Qty 6

0

30

Simplicity 2860681SM

NUT, Hex Flange Lock, 3/8-16

$4.49

$

In Stock, Qty 11

0

31

Simplicity 1704082SM

CAM, Eccentric

$5.49

$

In Stock, Qty 9

0

32

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2

$4.49

$

In Stock, Qty 9

0

33

Simplicity 1930642SM

NUT, Hex Flange Toplock 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 4 left!

0

34

Simplicity 1716020ASM

SHAFT & BAR ASSEMBLY, Roller Fixed Arm

$32.99

$

Usually ships in 2-12 days

0

35

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4, G5

$4.49

$

In Stock, Qty 8

0

36

Simplicity 1714760SM

WHEEL, Roller

$6.49

$

In Stock, Qty 20+

0

37

Simplicity 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 2158399SM

E-RING, Retaining Extenstion
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

39

Simplicity 1930645SM

NUT, Hex Flange, 3/8-16, Two Way Lock
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

40

Simplicity 1674440SM

SPACER

$18.99

$

Usually ships in 2-12 days

0

41

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 6

0

42

Simplicity 1729653SM

ARM, Pitch 44"

$

$

Not available

43

Simplicity 1611705SM

SPACER

$4.49

$

In Stock, only 2 left!

0

44

Simplicity 1923701SM

CAPSCREW, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, Qty 7

0
