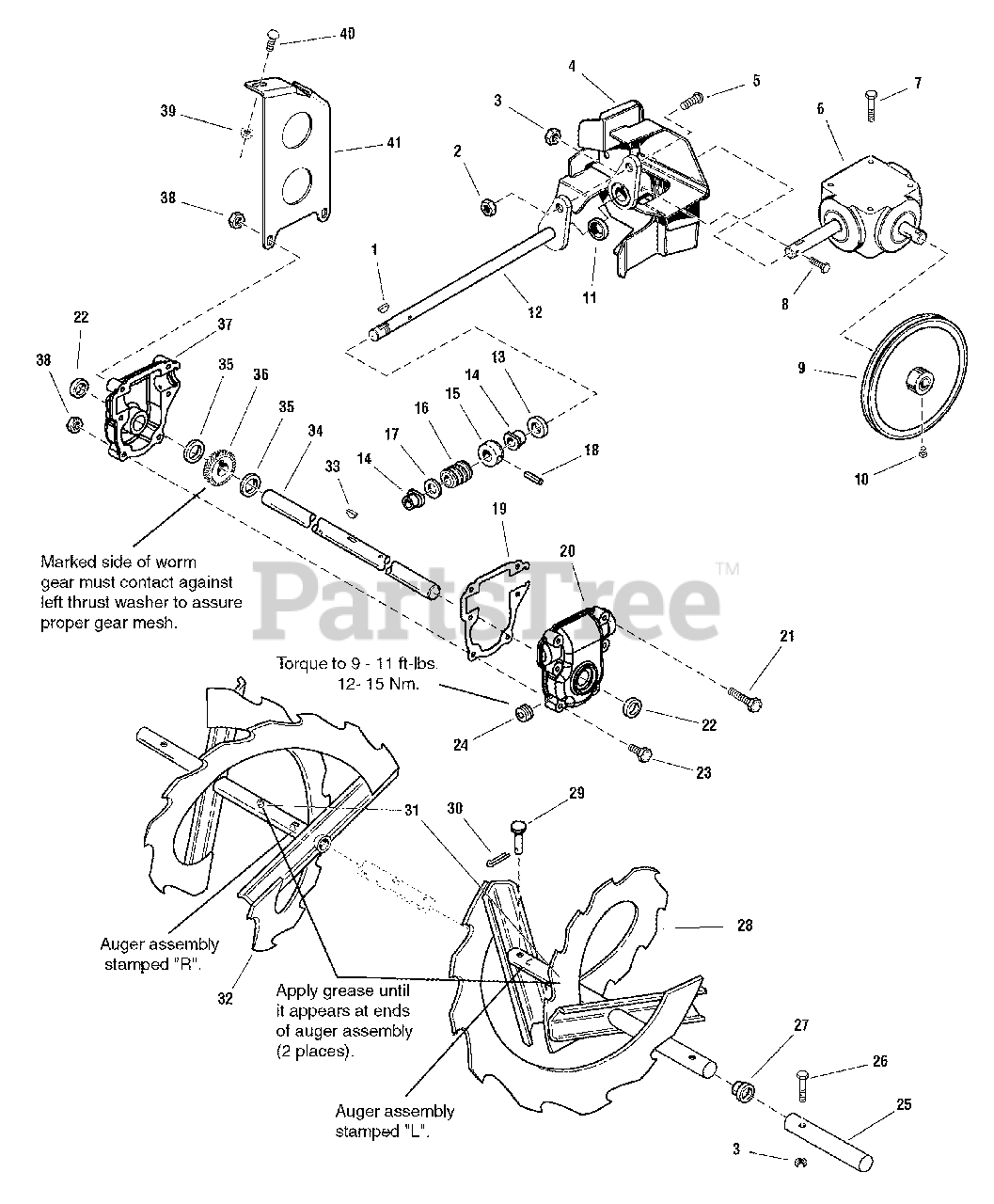

1694874 - Simplicity 42" Snow Thrower Attachment Auger Drive Group Parts Diagram

42" Snow Thrower Attachment

Auger Drive Group Parts Diagram

  • Title

1

Simplicity 2818312SM

KEY, Woodruff, 47/250 x 5/8
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

2

Simplicity 1919438SM

NUT, Hex Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 9

0

3

Simplicity 1920397SM

NUT, Hex Lock ESNA Light, 1/4-20NC-3B
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1723994ASM

IMPELLER ASSEMBLY

$301.99

$

In Stock, only 1 left!

0

5

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

6

Simplicity 1723950SM

GEARBOX ASSEMBLY

$404.99

$

Usually ships in 2-12 days

0

7

Simplicity 1933260SM

CAPSCREW, Whiz, 3/8-16 x 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 1960506SM

CAPSCREW, 1/4-20 x 1.88
(Superseded to 704034)

$5.49

$

In Stock, only 1 left!

0

9

Simplicity 1724003SM

PULLEY, Input

$87.99

$

Usually ships in 2-12 days

0

10

Simplicity 1928721SM

SCREW, Set Square Head Cup Point, 5/16-18 x 1/2 G8

$4.99

$

In Stock, Qty 12

0

11

Simplicity 1723997SM

BUSHING

$26.99

$

Usually ships in 2-12 days

0

12

Simplicity 1723995SM

SHAFT ASSEMBLY, Worm

$121.99

$

Usually ships in 2-12 days

0

13

Simplicity 1612093SM

SEAL, Oil 1/4" Thick

$10.99

$

In Stock, Qty 6

0

14

Simplicity 1612149SM

BUSHING, 377/500 ID x 1-1/10 OD x 1-1/100 LG Powerdered Metal

$51.99

$

In Stock, Qty 7

0

15

Simplicity 1612127SM

COLLAR, Thrust 3/4 LG

$30.99

$

In Stock, only 2 left!

0

16

Simplicity 1612142SM

GEAR, Worm 1-3/8 LG
(Superseded to 706853)

$

$

Not available

17

Simplicity 2168111SM

WASHER, Thrust

$6.99

$

Usually ships in 2-12 days

0

18

Simplicity 2836098SM

PIN, Drive Lock Type A 3/16 x 1-1/2

$18.99

$

In Stock, Qty 6

0

19

Simplicity 1612124SM

GASKET, Gear Case

$17.99

$

In Stock, only 1 left!

0

20

Simplicity 1612136SM

CASE, Gear L.H.

$68.99

$

Usually ships in 2-12 days

0

21

Simplicity 1923282SM

CAPSCREW, Hex Head, 1/4-20 x 2-1/2 G5
(Superseded to 703821)

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 2118118SM

SEAL, Oil, 1/4" Thick

$10.99

$

In Stock, only 1 left!

0

23

Simplicity 1960346SM

CAPSCREW, Hex Head, 1/4-20 x 2-1/4 G5

$4.99

$

Usually ships in 2-12 days

0

24

Simplicity 1668971SM

FITTING, Pipe Plug, Square Head

$4.49

$

Usually ships in 2-12 days

0

25

Simplicity 1723931SM

SHAFT, E-Coat, 5 LG

$24.99

$

Usually ships in 2-12 days

0

26

Simplicity 1921962SM

CAPSCREW, Hex Head, 1/4-20 x 1-3/4 G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

27

Simplicity 1709894SM

BUSHING, Plastic

$5.49

$

In Stock, only 1 left!

0

28

Simplicity 1731325SM

AUGER ASSEMBLY, L.H.
(Superseded to 1731325ASM)

$289.99

$

Usually ships in 2-12 days

0

29

Simplicity 1668344SM

PIN, Flat Head Drilled
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1918447SM

PIN, Cotter 47/50 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 2821133SM

FITTING, Lube 1/4 Drive, No Check Ball
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

32

Simplicity 1731326SM

AUGER ASSEMBLY, R.H.
(Superseded to 1731326ASM)

$341.99

$

Usually ships in 2-12 days

0

33

Simplicity 2830246SM

KEY, Woodruff 1/4 x 3/4
(Superseded to 704280)

$4.99

$

In Stock, Qty 10

0

34

Simplicity 1731916SM

SHAFT, 16 LG Auger 3 Holes

$106.99

$

Usually ships in 2-12 days

0

35

Simplicity 2118315SM

WASHER, Thrust

$9.99

$

In Stock, Qty 7

0

36

Simplicity 1612141SM

GEAR, Worm 7/8 LG
(Superseded to 706853)

$

$

Not available

37

Simplicity 1612137SM

CASE, Gear R.H.
(Superseded to 1687728)

$567.99

$

Usually ships in 2-12 days

0

38

Simplicity 1930642SM

NUT, Hex Flange, 1/4-20 Toplock Small
(Superseded to 703916)

$4.99

$

In Stock, only 4 left!

0

39

Simplicity 1931277SM

NUT, Hex Flange, 5/16-18, Whiz Lock Small
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

40

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

41

Simplicity 1723922ASM

SUPPORT, Gear Box 10GA

$34.99

$

Usually ships in 2-12 days

0

--

Simplicity 1686947SM

SEAL KIT, for Gear Box, Reference No. 6

$

$

Not available
