1694895 - Simplicity Pacer Walk-Behind Mower Electrical Group (S/N: 2013136020 & Below) Parts Diagram

Pacer Walk-Behind Mower

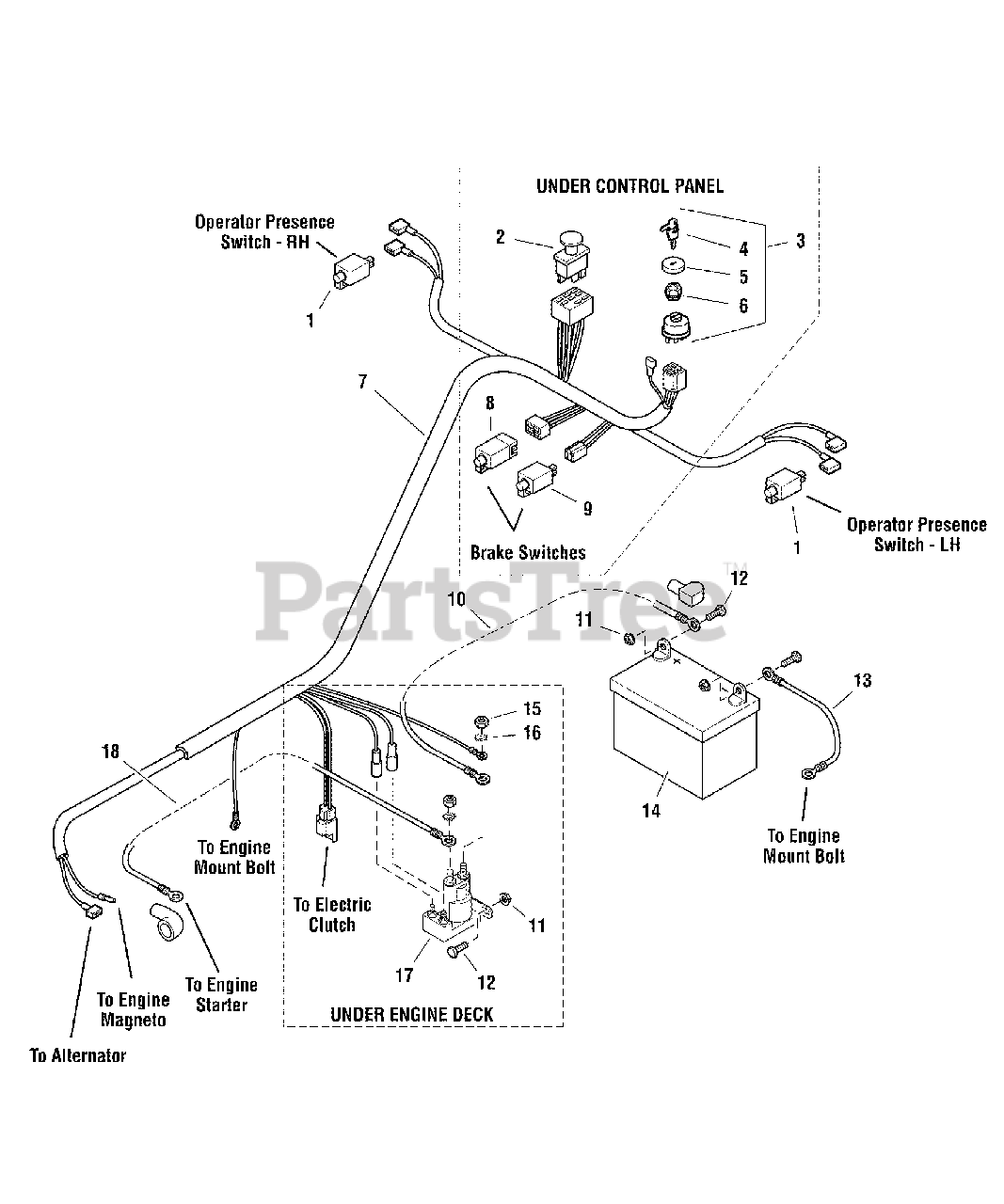

Electrical Group (S/N: 2013136020 & Below) Parts Diagram

  • Title

1

Simplicity 5021769SM

SWITCH, NC

$14.99

$

In Stock, only 1 left!

0

2

Simplicity 1722887SM

SWITCH, PTO

$33.99

$

In Stock, Qty 20+

0

3

Simplicity 1686734SM

SWITCH, Ignition, Complete

$32.99

$

In Stock, Qty 20+

0

4

Simplicity 1717163SM

KEY, Ignition, Molded Set

$8.99

$

In Stock, Qty 14

0

5

Simplicity 1704346SM

COVER

$4.49

$

In Stock, only 1 left!

0

6

Simplicity 5022791SM

PLASTIC NUT

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 5401037SM

WIRE HARNESS

$173.99

$

Usually ships in 2-12 days

0

8

Simplicity 5022438SM

SWITCH, Plunger, NO/NO

$20.99

$

Usually ships in 2-12 days

0

9

Simplicity 5021769SM

SWITCH, Plunger, NC

$14.99

$

In Stock, only 1 left!

0

10

Simplicity 5021405SM

POSITIVE (+) BATTERY CABLE, 22"

$18.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025126SM

NUT, 1/4-20 Hex Serrated Flange
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

12

Simplicity 5025010X6SM

BOLT, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 16

0

13

Simplicity 5021406SM

NEGATIVE (-) BATTERY CABLE, 22"

$16.99

$

Usually ships in 2-12 days

0

14

BATTERY, Lawn & Garden, 12V (BCIU1, 340 CCA)

$

$

Not available

15

Simplicity 2820438SM

NUT, Hex Jam, 5/16-24

$3.49

$

In Stock, only 2 left!

0

16

Simplicity 5023217SM

WASHER, Light Lock, 5/16

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 1686981SM

SOLENOID
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 6

0

18

Simplicity 5021542SM

POSITIVE (+) BATTERY CABLE, 30"

$29.99

$

In Stock, only 1 left!

0
