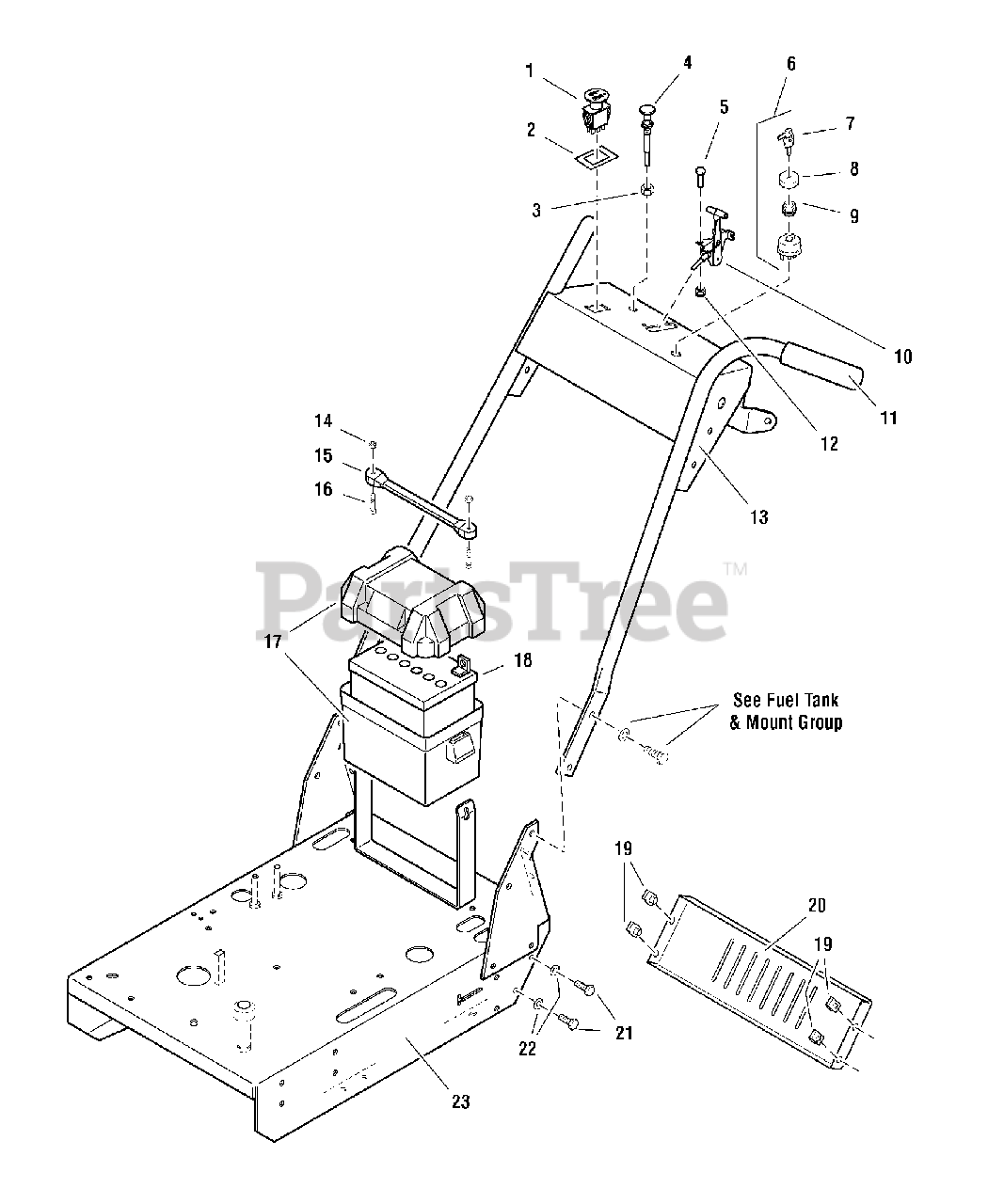

1694895 - Simplicity Pacer Walk-Behind Mower Engine Frame & Handle Bars Group - 34" Models Parts Diagram

Pacer Walk-Behind Mower

Engine Frame & Handle Bars Group - 34" Models Parts Diagram

  • Title

1

Simplicity 1722887SM

SWITCH, PTO

$33.99

$

In Stock, Qty 20+

0

2

Simplicity 5022222SM

SWITCH RETAINER RING

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 5025035SM

NUT, 3/8-24 Hex

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 5046501SM

CABLE, Choke Control, 47"

$55.99

$

In Stock, only 1 left!

0

5

Simplicity 5025010X6SM

BOLT, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 16

0

6

Simplicity 1686734SM

SWITCH, Ignition, Complete

$32.99

$

In Stock, Qty 20+

0

7

Simplicity 1717163SM

KEY, Ignition, Molded Set

$8.99

$

In Stock, Qty 13

0

8

Simplicity 1704346SM

COVER

$4.49

$

In Stock, only 1 left!

0

9

Simplicity 5022791SM

PLASTIC NUT

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 5047629SM

CABLE, Throttle Control, 46"

$62.99

$

Usually ships in 2-12 days

0

11

Simplicity 5021841SM

GRIP, Foam
(Superseded to 84003988)

$8.49

$

In Stock, only 3 left!

0

12

Simplicity 5025095SM

NUT, 1/4-20 Hex Nylon Lock

$3.49

$

In Stock, Qty 13

0

13

Simplicity 5061279CSM

HANDLE BAR ASSEMBLY

$307.99

$

Usually ships in 2-12 days

0

14

Simplicity 703412

NUT, #10-24 Hex Nylon Lock

Note: (5025271)

$4.49

$

In Stock, Qty 12

0

15

Simplicity 5021670SM

RUBBER STRAP

$13.99

$

In Stock, only 1 left!

0

16

Simplicity 5025270SM

SCREW, #10-24 x 1

$3.49

$

In Stock, only 2 left!

0

17

Simplicity 5046188SM

BATTERY BOX
(Superseded to 5100688YP)

$65.99

$

Usually ships in 2-12 days

0

18

BATTERY, Lawn & Garden, 12V (BCIU1, 340 CCA)

$

$

Not available

19

Simplicity 5022308SM

BODY CLIP, 5/16-18

$5.99

$

In Stock, Qty 9

0

20

Simplicity 5047735CSM

REAR SHIELD

$30.99

$

Usually ships in 2-12 days

0

21

Simplicity 5025011X6SM

BOLT, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 6

0

22

Simplicity 5025155SM

WASHER, 5/16" SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 5049229C

ENGINE DECK ASSEMBLY
(Superseded to 5049229CYP)

$911.99

$

Usually ships in 2-12 days

0
