1694895 - Simplicity Pacer Walk-Behind Mower Transaxle, Mount & Drive Idler Group Parts Diagram

Pacer Walk-Behind Mower

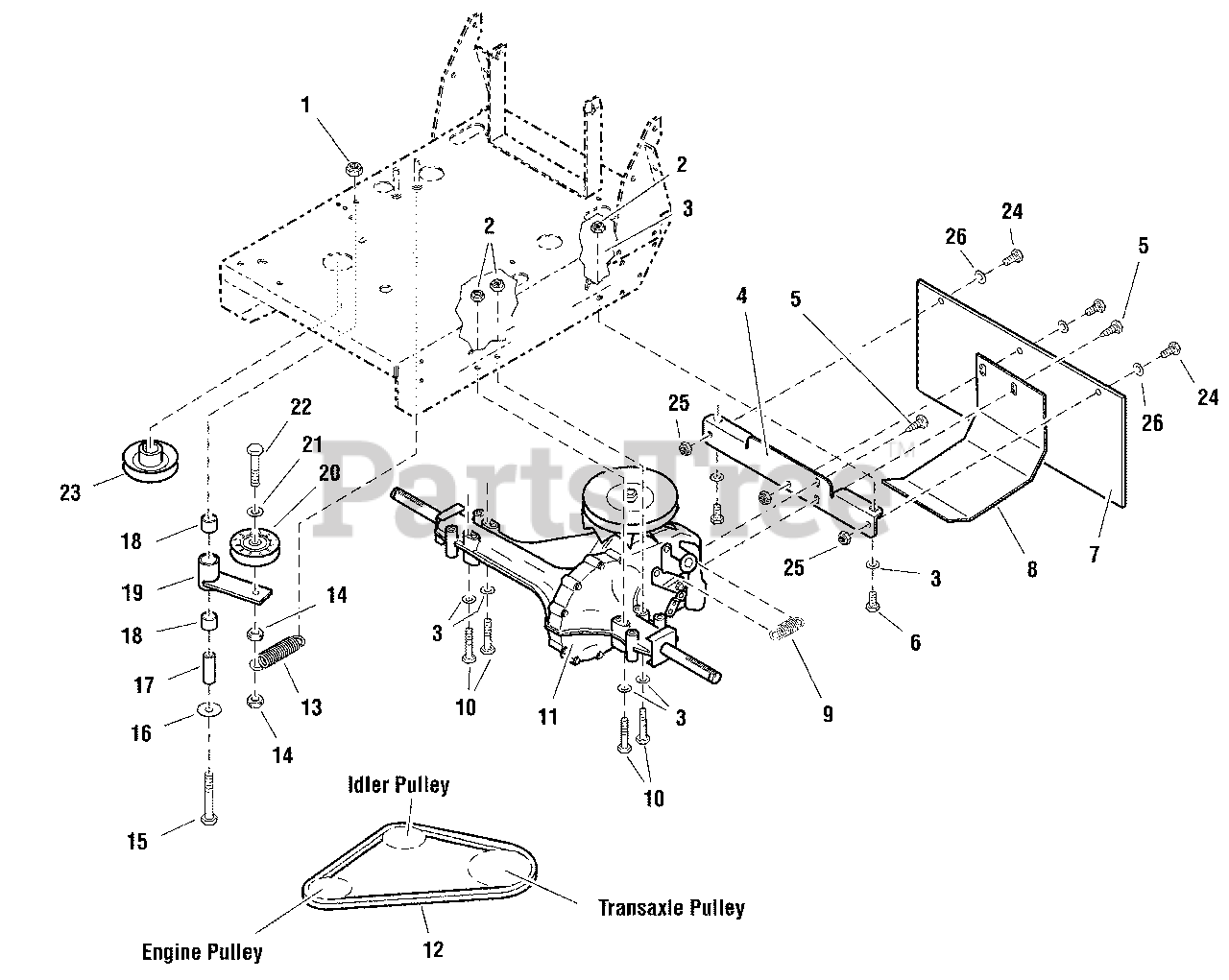

Transaxle, Mount & Drive Idler Group Parts Diagram

  • Title

1

Simplicity 5025096SM

NUT, Hex Nylon Lock, 3/8-16

Note: (34" Models)

$3.49

$

In Stock, Qty 15

0

2

Simplicity 5025057SM

NUT, Hex Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 11

0

4

Simplicity 5047582CSM

TRANSAXLE BRACE

$7.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025059X6SM

CAPSCREW, Hex Head, Self-Tapping, 5/16-18 x 3/4
(Superseded to 5025059X6FS)

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, only 3 left!

0

7

Simplicity 5047736SM

RUBBER FLAP

$54.99

$

Usually ships in 2-12 days

0

8

Simplicity 5048312CSM

SKID PLATE

$71.99

$

Usually ships in 2-12 days

0

9

Simplicity 5022967SM

HYDRO RETURN SPRING

$17.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025011X24SM

CAPSCREW, Hex Head, 5/16-18 x 3

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 5103121SM

TRANSAXLE, HYDROSTATIC
(Superseded to 5103121YP)

$1228.99

$

Usually ships in 2-12 days

0

12

Simplicity 5022968SM

BELT

$

$

Not available

13

Simplicity 5020807SM

SPRING, Extension

Note: (34" Models)

$8.99

$

In Stock, Qty 8

0

14

Simplicity 5025100SM

NUT, Hex, Side Lock, 3/8-16

Note: (34" Models)

$3.49

$

In Stock, only 4 left!

0

15

Simplicity 5025013X24SM

CAPSCREW, Hex Head, 3/8-16 x 3

Note: (34" Models)

$4.49

$

In Stock, Qty 5

0

16

Simplicity 5025165SM

WASHER, Fender, 3/8

Note: (34" Models)

$4.49

$

In Stock, Qty 16

0

17

Simplicity 5047716SM

SPACER

Note: (34" Models)

$10.99

$

Usually ships in 2-12 days

0

18

Simplicity 5020876BSM

BUSHING, Brass

Note: (34" Models)

$11.99

$

In Stock, Qty 10

0

19

Simplicity 5047717CSM

TRANSAXLE IDLER ARM

Note: (34" Models)

$14.99

$

Usually ships in 2-12 days

0

20

Simplicity 5043627SM

IDLER PULLEY ASSEMBLY

Note: (34" Models)

$46.99

$

In Stock, only 1 left!

0

21

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

Note: (34" Models)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 5025013X16SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

Note: (34" Models)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 5047626SM

TRANSAXLE DRIVE PULLEY

$

$

Not available

24

Simplicity 5025013X8SM

BOLT, 3/8 - 16 X 1

$3.99

$

In Stock, only 3 left!

0

25

Simplicity 5025394SM

BOLT, 3/8 - 16, HEX NYLON FLANGE

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

27

Simplicity 5103136SM

FAN / PULLEY KIT, TRANSAXLE
(Superseded to 5103136YP)

Note: (Not Shown - S/N:2015250408 & Above)

$66.99

$

Usually ships in 2-12 days

0
