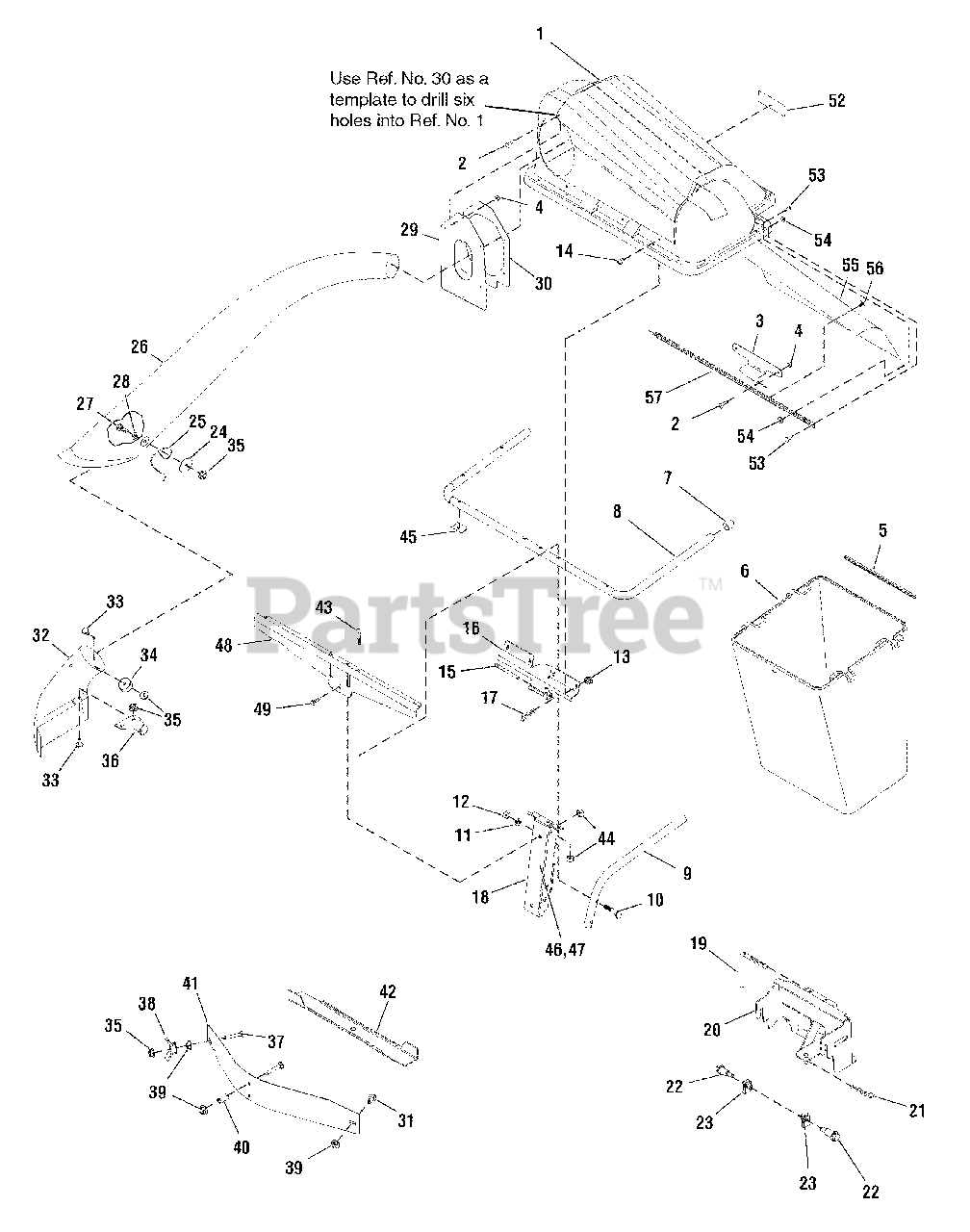

1695163 - Simplicity Clean Sweep Twin Grass Catcher for 38" Mower Twin Catcher Assembly Parts Diagram

Clean Sweep Twin Grass Catcher for 38" Mower

Twin Catcher Assembly Parts Diagram

  • Title

1

Simplicity 1732815SM

COVER ASSEMBLY, with Decal

$552.99

$

Usually ships in 2-12 days

0

2

Simplicity 1960404SM

SCREW, 10 - 24 x 3/4

$3.99

$

In Stock, only 4 left!

0

3

Simplicity 1733416ASM

LATCH

$14.99

$

Usually ships in 2-12 days

0

4

Simplicity 1933896SM

NUT, 10 - 24, ESNA Lock
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

5

Simplicity 1700864SM

EDGING, 13-1/8 Long

$5.99

$

Usually ships in 2-12 days

0

6

Simplicity 1732350SM

BAG ASSEMBLY, Twin

$210.99

$

Usually ships in 2-12 days

0

7

Simplicity 024862MA

CAP

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 1733440SM

TUBE, "U"

$69.99

$

Usually ships in 2-12 days

0

9

Simplicity 054412E701MA

TUBE, Center

$45.99

$

Usually ships in 2-12 days

0

10

Simplicity 006X93MA

SCREW, 5/16 - 24, Curve

$4.49

$

In Stock, Qty 5

0

11

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1920263SM

NUT, 5/16 - 24, Hex
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 1928372SM

NUT, 1/4 - 20, Keps Lock
(Superseded to 703914)

$3.49

$

In Stock, Qty 18

0

14

Simplicity 004X26MA

SCREW, 1/4 - 20 x 1/2

$

$

Not available

15

Simplicity 054407ZMA

PIN, Cover Hinge

$14.99

$

In Stock, only 1 left!

0

16

Simplicity 054398E701MA

HINGE, Cover

$39.99

$

Usually ships in 2-12 days

0

17

Simplicity 1960074SM

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1732867SM

CHANNEL ASSEMBLY

$139.99

$

Usually ships in 2-12 days

0

19

Simplicity 1732565SM

PIN, Channel Mount

$37.99

$

Usually ships in 2-12 days

0

20

Simplicity 1732067ASM

MOUNT ASSEMBLY, Channel

$46.99

$

Usually ships in 2-12 days

0

21

Simplicity 1960033SM

PIN, Hair, 1/8 x 2-9/16

$3.49

$

In Stock, Qty 5

0

22

Simplicity 1728976SM

BOLT, Shoulder, 5/16 - 18

$6.49

$

In Stock, only 2 left!

0

23

Simplicity 1960717SM

NUT, 5/16 - 18, Speed

$6.49

$

Usually ships in 2-12 days

0

24

Simplicity 1960185SM

WASHER

$3.99

$

Usually ships in 2-12 days

0

25

Simplicity 1704603SM

LATCH, Wire Form

$6.49

$

Usually ships in 2-12 days

0

26

Simplicity 1703769SM

TUBE, Discharge

$301.99

$

Usually ships in 2-12 days

0

27

Simplicity 1960122SM

SCREW, 5/16 - 18 x 3/4

$6.99

$

Usually ships in 2-12 days

0

28

Simplicity 1919326SM

WASHER

$4.49

$

In Stock, Qty 18

0

29

Simplicity 1732799SM

SEAL, Rubber
(Superseded to 1733741SM)

$29.99

$

Usually ships in 2-12 days

0

30

Simplicity 1732735ASM

PLATE, Seal

$40.99

$

Usually ships in 2-12 days

0

31

Simplicity 1931333SM

BOLT, Carriage, 5/16 - 18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 1732561SM

BOOT, 38"

$231.99

$

Usually ships in 2-12 days

0

33

Simplicity 1960371SM

SCREW, 5/16 - 18 x 3/4

$5.49

$

Usually ships in 2-12 days

0

34

Simplicity 1704341SM

WASHER, Special

$42.99

$

Usually ships in 2-12 days

0

35

Simplicity 1935048SM

NUT, 5/16 - 18, Centerlock Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

36

Simplicity 1704355ASM

BRACKET, Boot Mount

$12.99

$

Usually ships in 2-12 days

0

37

Simplicity 1931339SM

BOLT, Carriage, 5/16 - 18 x 2
(Superseded to 704035)

$4.49

$

In Stock, only 2 left!

0

38

Simplicity 1733689SM

WINGNUT ASSEMBLY

$

$

Not available

39

Simplicity 1927557SM

NUT, Whizlock, 5/16 - 18

$4.99

$

Usually ships in 2-12 days

0

40

Simplicity 1674669SM

SPACER

$11.99

$

In Stock, Qty 8

0

41

Simplicity 1703765ASM

BAFFLE, 38"

$91.99

$

Usually ships in 2-12 days

0

42

Simplicity 1704977SM

BLADE, 38" Hi-Lift
(Superseded to 1760200YP)

$30.99

$

In Stock, only 1 left!

0

43

Simplicity 1931338SM

BOLT, Carriage, 5/16 - 18 x 1-3/4
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

44

Simplicity 1960686SM

NUT, 5/16 - 18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

45

Simplicity 1720452SM

CLAMP, Saddle

$12.99

$

In Stock, only 1 left!

0

46

ID LABEL/SERIAL PLATE

Note: (Not Serviceable)

$

$

Not available

47

OVERLAY, Mylar

Note: (Not Serviceable)

$

$

Not available

48

Simplicity 1733432ASM

BRACE STIFFENER

$54.99

$

Usually ships in 2-12 days

0

49

Simplicity 1930591SM

CAPSCREW, 5/16 - 18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 12

0

52

Simplicity 1732819SM

DECAL, Cover Warning

$18.99

$

Usually ships in 2-12 days

0

53

Simplicity 1673320SM

RIVET, Pop, 3/16

$4.49

$

In Stock, Qty 8

0

54

Simplicity 1910531SM

WASHER, Rivet, 3/16

$3.99

$

Usually ships in 2-12 days

0

55

Simplicity 1732488SM

SCREEN, Twin Cover

$68.99

$

Usually ships in 2-12 days

0

56

Simplicity 1732490SM

FASTENERS, Push, 1/4 x 1/2

$58.99

$

Usually ships in 2-12 days

0

57

Simplicity 1734384SM

SCREEN SUPPORT, Twin

$66.99

$

Usually ships in 2-12 days

0

58

Simplicity 1733419

INSTRUCTION MANUAL

$

$

Not available
