1695164 - Snapper 38" & 42" Twin Bag Grass Catcher 38" & 42" Twin Bag Catcher Parts Diagram

38" & 42" Twin Bag Grass Catcher

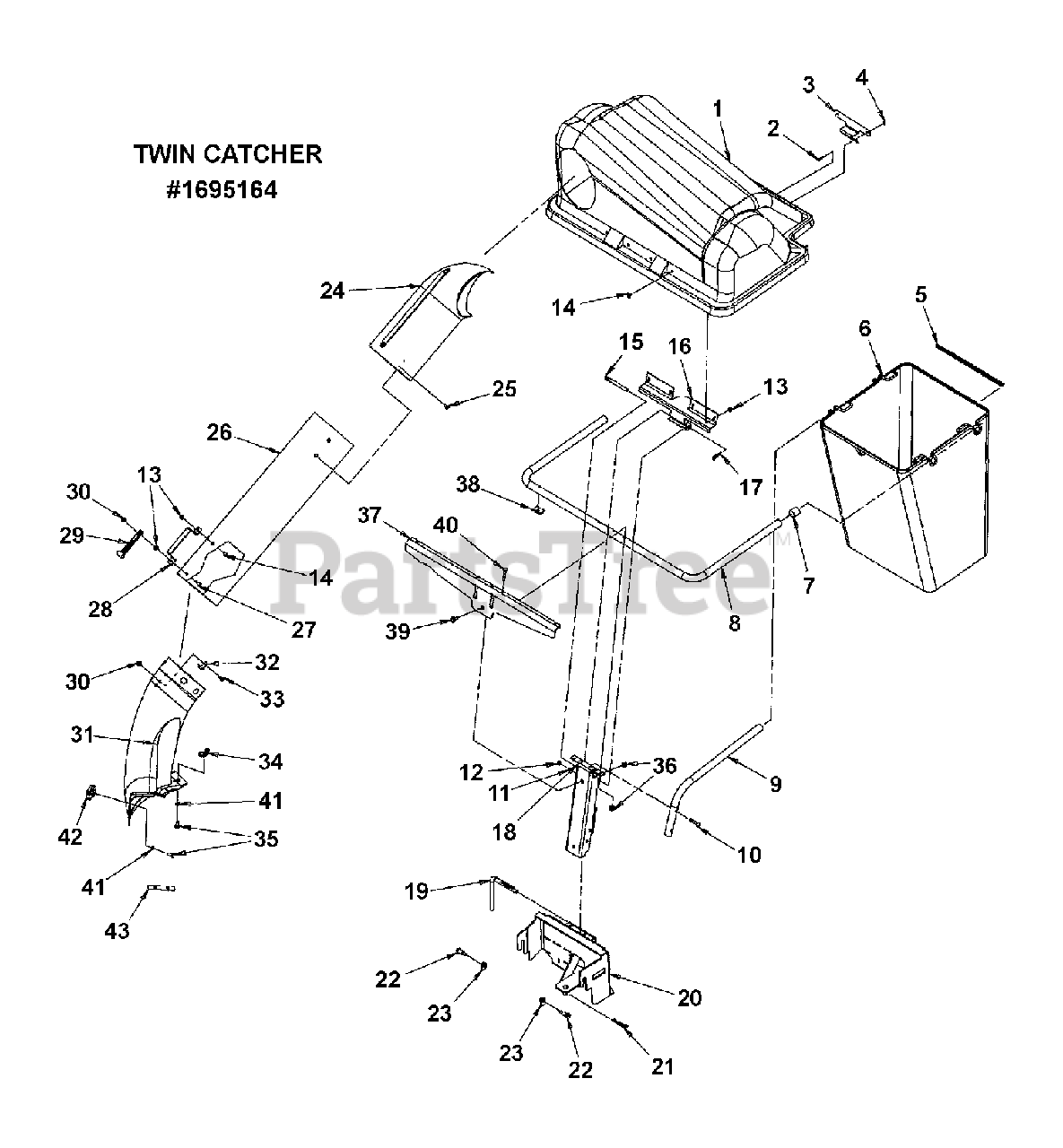

38" & 42" Twin Bag Catcher Parts Diagram

  • Title

1

Snapper 1732815

COVER, ASSY - TWIN W/DECAL
(Superseded to 1732815SM)

$552.99

$

Usually ships in 2-12 days

0

2

Snapper 1960404

SCREW, 10-24 X .75
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

3

Snapper 1733416A

LATCH
(Superseded to 1733416ASM)

$14.99

$

Usually ships in 2-12 days

0

4

Snapper 1933896

NUT, #10-24 ESNA LOCK
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

5

Snapper 1700864

EDGING, 13.12 LONG PVC
(Superseded to 1700864SM)

$5.99

$

Usually ships in 2-12 days

0

6

Snapper 1732350

BAG, ASSY - TWIN
(Superseded to 1732350SM)

$210.99

$

Usually ships in 2-12 days

0

7

Snapper 720339

CAP, (24862)
(Superseded to 024862MA)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 1733440

TUBE, U, 5-HOLE
(Superseded to 1733440SM)

$69.99

$

Usually ships in 2-12 days

0

9

Snapper 720530

TUBE, CENTER (54412)
(Superseded to 054412E701MA)

$45.99

$

Usually ships in 2-12 days

0

10

Snapper 720079

SCREW, .312-24 CURVE (6x93)
(Superseded to 006X93MA)

$4.49

$

In Stock, Qty 5

0

11

Snapper 1917356

LOCKWASHER, .312 SPRING
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Snapper 1920263

NUT, .312-24 HEX
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

13

Snapper 1928372

NUT, .25-20 KEPS LOCK
(Superseded to 703914)

$3.49

$

In Stock, Qty 18

0

14

Snapper 720074

SCREW, .25-20 x .5 SLOT 4x24
(Superseded to 004X24MA)

$4.49

$

Usually ships in 2-12 days

0

15

Snapper 720525

PIN, COVER HINGE (54407)
(Superseded to 054407ZMA)

$14.99

$

In Stock, only 1 left!

0

16

Snapper 720524

HINGE, COVER (54398)
(Superseded to 054398E701MA)

$39.99

$

Usually ships in 2-12 days

0

17

Snapper 1960074

PIN, HAIR .090
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

18

Snapper 1732867

CHANNEL, ASSY
(Superseded to 1732867SM)

$139.99

$

Usually ships in 2-12 days

0

19

Snapper 1732565

PIN, CHANNEL MOUNT
(Superseded to 1732565SM)

$37.99

$

Usually ships in 2-12 days

0

20

Snapper 1732067A

MOUNT, ASSY - CHANNEL
(Superseded to 1732067ASM)

$46.99

$

Usually ships in 2-12 days

0

21

Snapper 1960033

PIN, HAIR .125 x 2.56 LG
(Superseded to 1960033SM)

$3.49

$

In Stock, Qty 5

0

22

Snapper 1728976

BOLT, SHOULDER .312-18
(Superseded to 1728976SM)

$6.49

$

In Stock, only 2 left!

0

23

Snapper 1960717

NUT, .312-18 SPEED
(Superseded to 1960717SM)

$6.49

$

Usually ships in 2-12 days

0

24

Snapper 1732446

ELBOW, UPPER TUBE
(Superseded to 1733885SM)

$103.99

$

Usually ships in 2-12 days

0

25

Snapper 722855

SCREW, .25 x .75 PHLP 26x239
(Superseded to 26X239MA)

$4.49

$

In Stock, only 2 left!

0

26

Snapper 1734299

TUBE, CLEAR
(Superseded to 1734299SM)

$140.99

$

Usually ships in 2-12 days

0

27

Snapper 720076

SCREW, .25-20 x 1.0 (4x71)
(Superseded to 004X71MA)

$4.99

$

In Stock, only 4 left!

0

28

Snapper 720533

HANDLE, TUBE (54416)
(Superseded to 720533FS)

$17.99

$

Usually ships in 2-12 days

0

29

Snapper 2171600

STRAP, RUBBER
(Superseded to 2171600FS)

$7.49

$

Usually ships in 2-12 days

0

30

Snapper 1930642

NUT, .25-20 C TRLK FLG
(Superseded to 703916)

$4.99

$

In Stock, only 4 left!

0

31

Snapper 1734367

BOOT, 38"/42"
(Superseded to 1734367SM)

$222.99

$

Usually ships in 2-12 days

0

32

Snapper 720543

PIN, LATCH (54563)
(Superseded to 054563MA)

$23.99

$

In Stock, only 2 left!

0

33

Snapper 1960252

BOLT, CARRIAGE 25-20 x .62
(Superseded to 1960252SM)

$3.99

$

In Stock, only 2 left!

0

34

Snapper 720125

NUT, .312-18 WING (14x86)
(Superseded to 703141)

$3.49

$

In Stock, Qty 12

0

35

Snapper 1931333

BOLT, CARRIAGE .312-18 x .75
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

36

Snapper 1960686

NUT, 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

37

Snapper 1733432A

BRACE, STIFFENER
(Superseded to 1733432ASM)

$54.99

$

Usually ships in 2-12 days

0

38

Snapper 1720452

CLAMP, SADDLE
(Superseded to 1720452SM)

$12.99

$

In Stock, only 1 left!

0

39

Snapper 1930591

CAP, SCREW 5/16-18 x .75 LG
(Superseded to 80003531)

$5.49

$

In Stock, Qty 12

0

40

Snapper 1931338

BOLT, CARRIAGE .31-18 x 1.75
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

41

Snapper 1933988

NUT, PUSH .312
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

42

Snapper 1733098

KNOB, .312-18 INT 5-LOBE
(Superseded to 1733098SM)

$9.99

$

In Stock, only 2 left!

0

43

Snapper 1733180A

SHIM, MOWER DEFL BRACKET
(Superseded to 1733180ASM)

$5.99

$

Usually ships in 2-12 days

0

44

Snapper 11733420

MANUAL, INSTRUCTION

$

$

Currently unavailable
