1695171 - Snapper 38" & 42" Twin Bag Grass Catcher Twin Bag Catcher Assembly Parts Diagram

38" & 42" Twin Bag Grass Catcher

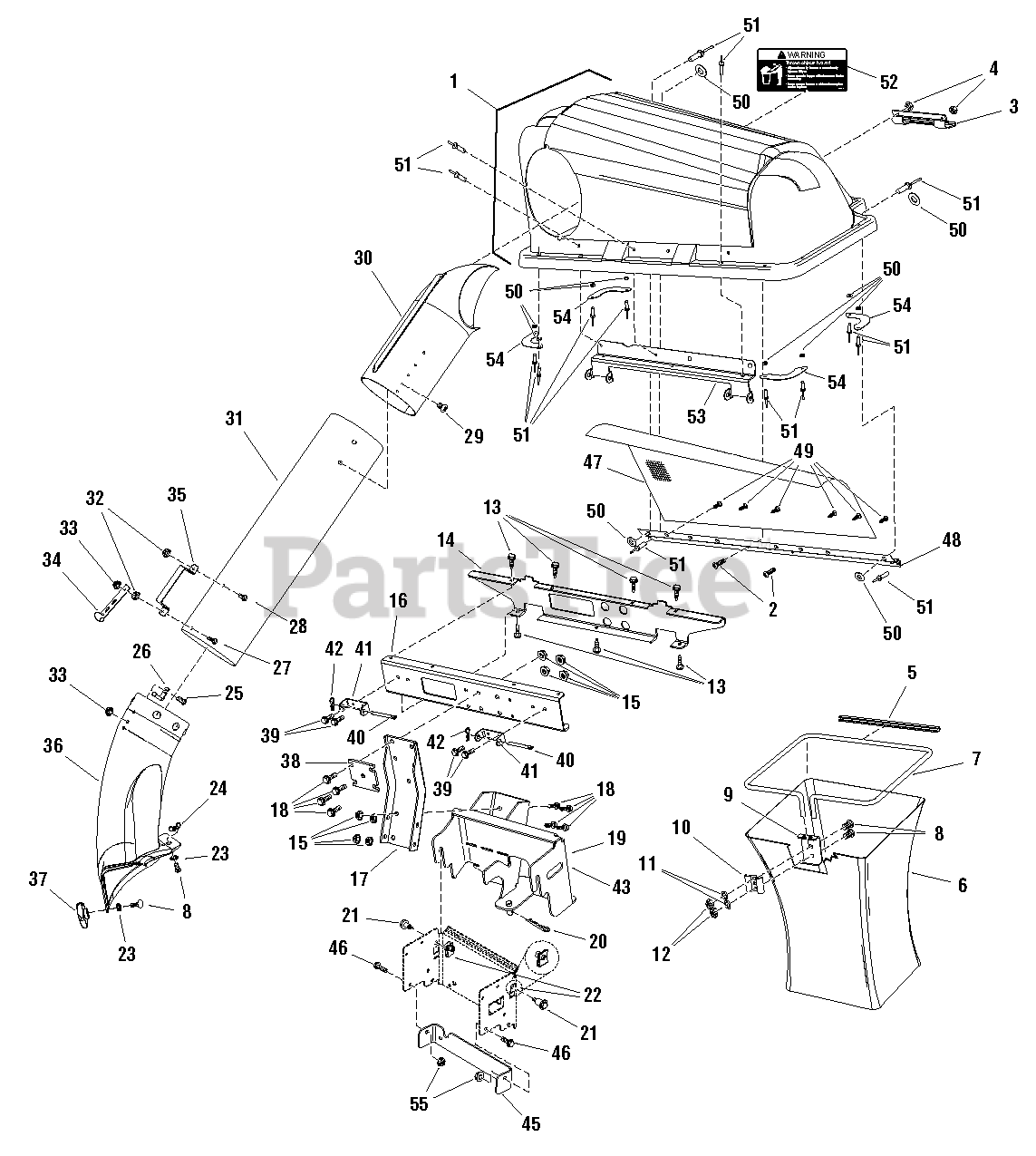

Twin Bag Catcher Assembly Parts Diagram

  • Title

1

Snapper 1733758

COVER ASSEMBLY, Twin Catcher
(Superseded to 1733758SM)

Note: (Includes Ref Nos. 47, 48, 49, 50, 51, 52, 53 & 54)

$507.99

$

Usually ships in 2-12 days

0

2

Snapper 1960404

SCREW, Phillips, 10 - 24 x 3/4
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

3

Snapper 720537

HANDLE, Plastic
(Superseded to 054537MA)

$19.99

$

In Stock, only 2 left!

0

4

Snapper 1933896

NUT, Hex .10 - 24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

5

Snapper 1675707

CLIP, Tube Grass Bag
(Superseded to 1675707SM)

$6.49

$

In Stock, Qty 7

0

6

Snapper 1703764

BAG, Grass
(Superseded to 5023290)

$216.99

$

Usually ships in 2-12 days

0

7

Snapper 1733491

HOOP, Twin
(Superseded to 1733491SM)

$155.99

$

In Stock, only 2 left!

0

8

Snapper 1931333

BOLT, Carriage, 5/16 - 18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

9

Snapper 1703807A

HANGER, Grass Bag
(Superseded to 1703807ASM)

$21.99

$

Usually ships in 2-12 days

0

10

Snapper 1672023A

CLAMP, Grass Bag
(Superseded to 1672023ASM)

$11.99

$

Usually ships in 2-12 days

0

11

Snapper 1917356

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 6

0

12

Snapper 1917372

NUT, Hex, 5/16 - 18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 3 left!

0

13

Snapper 1664847

SCREW, Hex Washer Head Taptite, 5/16 - 18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 1733613A

BRACKET, Cross Support, Twin
(Superseded to 1733613ASM)

$

$

Not available

15

Snapper 1928352

NUT, Hex, 3/8-16
(Superseded to 703793)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 1734428A

CHANNEL, Cross Support Twin

$

$

Currently unavailable

17

Snapper 1707526A

SUPPORT, Upright
(Superseded to 1707526ASM)

$87.99

$

Usually ships in 2-12 days

0

18

Snapper 1933260

CAPSCREW, Hex Flange Whiz Lock, 3/8-16 x 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 8

0

19

Snapper 1733627

SUPPORT ASSEMBLY, Catcher
(Superseded to 1733627ASM)

$239.99

$

Usually ships in 2-12 days

0

20

Snapper 1960033

CLIP, Hair Pin
(Superseded to 1960033SM)

$3.49

$

In Stock, Qty 19

0

21

Snapper 1728976

BOLT, Shoulder, 5/16 - 18 x 1.62
(Superseded to 1728976SM)

$6.49

$

In Stock, only 2 left!

0

22

Snapper 1960717

NUT, Speed, 5/16 - 18
(Superseded to 1960717SM)

$6.49

$

Usually ships in 2-12 days

0

23

Snapper 1933988

NUT, Push Pal
(Superseded to 703297)

$3.99

$

In Stock, Qty 7

0

24

Snapper 720125

NUT, Wingnut
(Superseded to 703141)

$3.99

$

In Stock, only 2 left!

0

25

Snapper 1960252

BOLT, Carriage, 1/4 - 20 x .625
(Superseded to 1960252SM)

$3.99

$

Usually ships in 2-12 days

0

26

Snapper 720543

PIN, Latch
(Superseded to 054563MA)

$23.99

$

In Stock, only 1 left!

0

27

Snapper 720076

SCREW, Machine 1/4 - 20 x 1
(Superseded to 004X71MA)

$4.99

$

In Stock, only 4 left!

0

28

Snapper 720074

SCREW, Machine 1/4 - 20 x .50
(Superseded to 004X24MA)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 722855

SCREW, 1/7 x .75
(Superseded to 26X239MA)

$4.49

$

Usually ships in 2-12 days

0

30

Snapper 1733885

ELBOW, Upper Tube
(Superseded to 1733885SM)

$109.99

$

Usually ships in 2-12 days

0

31

Snapper 1734299

TUBE, Catcher
(Superseded to 1734299SM)

$148.99

$

In Stock, only 1 left!

0

32

Snapper 1928372

NUT, Hex Keps, 1/4 - 20
(Superseded to 703914)

$3.49

$

In Stock, only 2 left!

0

33

Snapper 1930642

NUT, Hex Flange, 1/4 - 20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

34

Snapper 2171600

STRAP, Hood
(Superseded to 2171600FS)

$7.49

$

Usually ships in 2-12 days

0

35

Snapper 720533

HANDLE, Connect Tube
(Superseded to 720533FS)

$

$

Not available

36

Snapper 1734367

TUBE, Boot
(Superseded to 1734367SM)

$235.99

$

Usually ships in 2-12 days

0

37

Snapper 1733098

KNOB
(Superseded to 1733098SM)

$10.99

$

In Stock, only 3 left!

0

38

Snapper 1733948A

PLATE, Reinforcement, Upright
(Superseded to 1733948ASM)

$11.99

$

Usually ships in 2-12 days

0

39

Snapper 1925003

SCREW, Hex Washer Head Taptt 1/4 - 20 x.5
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

40

Snapper 720525

PIN, Cover Hinge
(Superseded to 054407ZMA)

$14.99

$

In Stock, only 1 left!

0

41

Snapper 1733504A

PIVOT, Hinge
(Superseded to 1733504ASM)

$23.99

$

Usually ships in 2-12 days

0

42

Snapper 1960074

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

43

* DECAL, ID Plate

$

$

Not available

45

Snapper 1733903A

PLATE, Reinforcement, Frame
(Superseded to 1733903ASM)

$33.99

$

Usually ships in 2-12 days

0

46

Snapper 1930595

SCREW, Hex Whiz Lock Flange, 5/16 - 18 x 1.25
(Superseded to 1930595SM)

$3.99

$

In Stock, Qty 7

0

47

Snapper 1732488

SCREEN, Twin
(Superseded to 1732488SM)

$68.99

$

Usually ships in 2-12 days

0

48

Snapper 1734384

SCREEN SUPPORT, Twin
(Superseded to 1734384SM)

$66.99

$

Usually ships in 2-12 days

0

49

Snapper 1732490

FASTENER, Push .25 x .50
(Superseded to 1732490SM)

$58.99

$

Usually ships in 2-12 days

0

50

Snapper 1910531

WASHER, Rivet .188
(Superseded to 1910531SM)

$3.99

$

Usually ships in 2-12 days

0

51

Snapper 1673320

RIVET, Pop .188
(Superseded to 1673320SM)

$4.49

$

In Stock, Qty 8

0

52

Snapper 1732819

DECAL, Cover Warning
(Superseded to 1732819SM)

$18.99

$

Usually ships in 2-12 days

0

53

Snapper 1733503A

HINGE, Cover
(Superseded to 1733503ASM)

$38.99

$

Usually ships in 2-12 days

0

54

Snapper 1733749A

GUSSET, Support Cover
(Superseded to 1733749ASM)

$6.99

$

Usually ships in 2-12 days

0

55

Snapper 1931277

NUT, Hex Flange 5/16 - 18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0
