54" Mower Deck

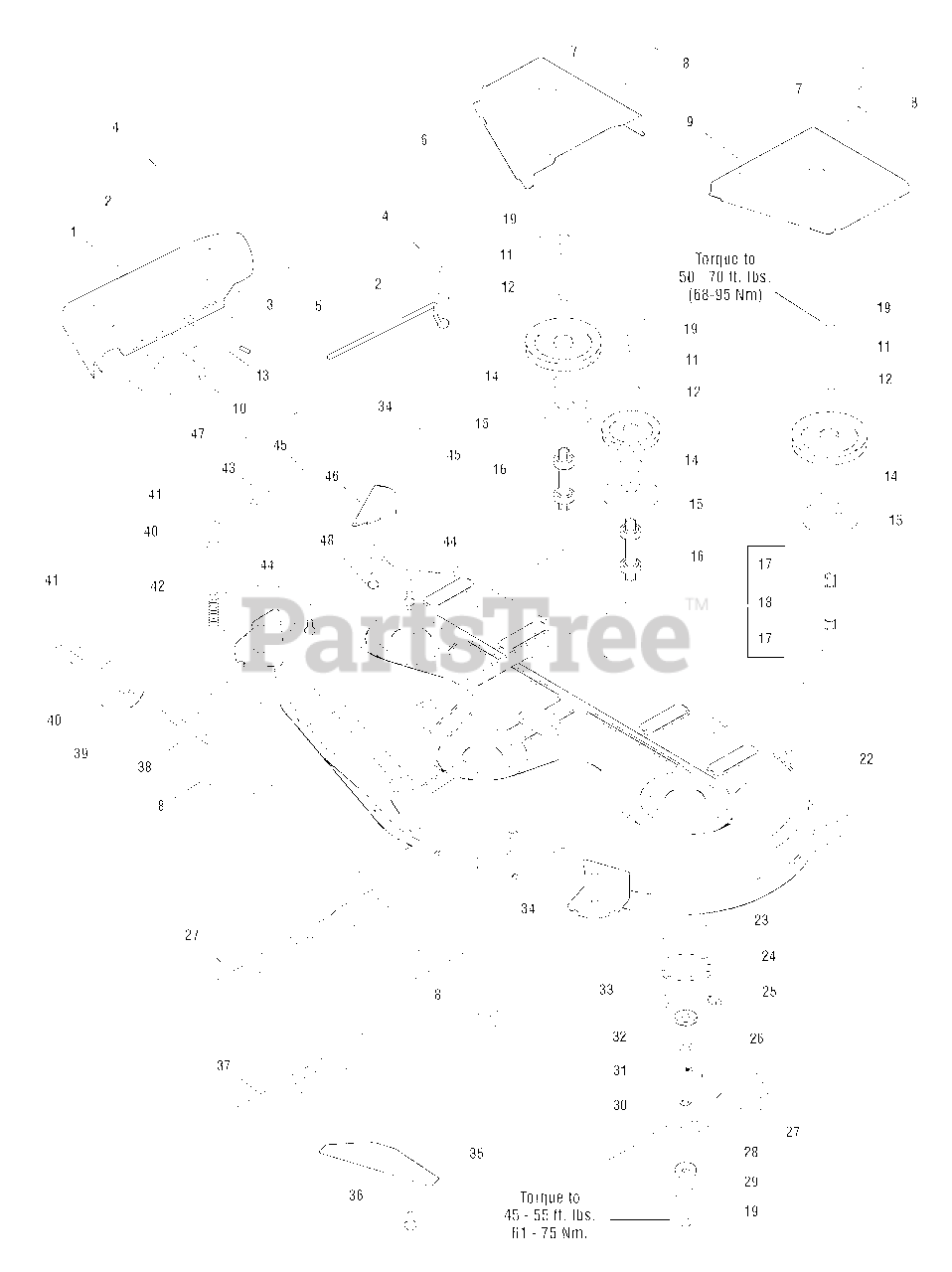

54" Mower Deck - Housing, Arbors & Blades Group (987102) Parts Diagram

  • Title

1

Snapper 1705449SM

DEFLECTOR, Plastic

$122.99

$

In Stock, Qty 13

0

2

Snapper 1960353SM

WASHER, Plain, 1/4
(Superseded to 703229)

$4.49

$

In Stock, only 2 left!

0

3

Snapper 1723323SM

CAP, Spring End

$4.99

$

In Stock, Qty 7

0

4

Snapper 1920397SM

NUT, Hex, Lock ESNA, 1/4-20, Black
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 1706709SM

ROD, Deflector

$8.49

$

In Stock, Qty 6

0

6

Snapper 1720184DSM

COVER, Arbor, RH (Red)`

$121.99

$

Usually ships in 2-12 days

0

7

Snapper 1720623SM

CLIP, Spring

$8.49

$

In Stock, only 2 left!

0

8

Snapper 1929000SM

SCREW Hex Head, Taptite,1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 1720186DSM

COVER, Arbor LH (Red)`

$40.99

$

Usually ships in 2-12 days

0

10

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 18

0

11

Snapper 1918199SM

WASHER, Lock, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

12

Snapper 1933263SM

WASHER, 7/16
(Superseded to 703990)

$6.99

$

In Stock, Qty 5

0

13

Snapper 7101082SM

SPRING, Torsion
(Superseded to 1759750YP)

$8.49

$

In Stock, only 1 left!

0

14

Snapper 1657969SM

SHIELD, Bearing Upper, Arbor

$7.49

$

In Stock, Qty 18

0

15

Snapper 1655729ASM

HOUSING, Arbor, Top

$14.99

$

In Stock, Qty 20+

0

16

Snapper 1676278SM

ARBOR SHAFT & BEARING ASSEMBLY (Includes Ref. Nos. 17 & 18)

$

$

Not available

17

Snapper 2108202SM

BEARING, Ball, 3/4 x 1-3/4 x 5/8

$11.99

$

In Stock, Qty 20+

0

18

Snapper 1676277SM

ARBOR SHAFT

$

$

Not available

19

Snapper 2823471SM

CAPSCREW, Hex Head, 7/16-14 x 1-1/4, G8
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 1687177SM

HOUSING ASSEMBLY, 54" Legacy XL (Red)`

$2439.99

$

Usually ships in 2-12 days

0

23

Snapper 1707335SM

GASKET, Foam

$5.99

$

In Stock, Qty 20+

0

24

Snapper 1703273ASM

ASSEMBLY, Housing, Bottom (Includes Ref. No. 25)`

$38.99

$

In Stock, Qty 17

0

25

Snapper 1704314SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

26

Snapper 1700230SM

WASHER, Shim

$4.99

$

In Stock, Qty 20+

0

27

Snapper 1725921SM

BLADE, Mower, 20-1/2
(Superseded to 1736043AYP)

$29.99

$

In Stock, Qty 20+

0

28

Snapper 1679711SM

WASHER, Spline

$7.99

$

In Stock, Qty 20+

0

29

Snapper 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

30

Snapper 1657528SM

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

31

Snapper 1655777SM

ADAPTER, Blade

$25.99

$

In Stock, Qty 20+

0

32

Snapper 1700229SM

SHIELD, Grass

$10.99

$

In Stock, Qty 11

0

33

Snapper 1664847SM

CAPSCREW, Hex Head, Taptite, 5/16-18x 3/4, Black
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

34

Snapper 1960684SM

NUT, Hex, KEPS, 5/16-18, Black
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

35

Snapper 1720962ASM

BAFFLE, Front, Anti-Blowout

$14.99

$

In Stock, only 1 left!

0

36

Snapper 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

37

Snapper 1725922SM

BLADE, Mower, 16
(Superseded to 1736044AYP)

$25.99

$

In Stock, Qty 18

0

38

Snapper 1720497SM

SPINDLE, Assembly

$54.99

$

Usually ships in 2-12 days

0

39

Snapper 1716353SM

WHEEL, Gauge

$22.99

$

In Stock, Qty 15

0

40

Snapper 1960020SM

WASHER, Plain, 21/32

$4.49

$

In Stock, Qty 20+

0

41

Snapper 1703805SM

KLIP, Ring

$3.49

$

In Stock, only 2 left!

0

42

Snapper 1716346SM

SPRING

$6.99

$

In Stock, Qty 8

0

43

Snapper 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 9

0

44

Snapper 1960698SM

CARRIAGE BOLT, 1/4-20 x 1, Black
(Superseded to 703584)

$3.99

$

In Stock, only 3 left!

0

45

Snapper 1960518SM

NUT, Push
(Superseded to 703826)

$3.49

$

In Stock, Qty 16

0

46

Snapper 1724976ASM

BAFFLE, Discharge

$69.99

$

Usually ships in 2-12 days

0

47

Snapper 1704873SM

CLAMP, Wire, 5/16 Diameter

$4.49

$

In Stock, only 1 left!

0

48

Snapper 1925205SM

CAPSCREW, Hex Head, 5/16-18 x 5/8, Black
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!
