1695284 - Snapper Clean Sweep Twin Grass Catcher for 50" Mower 50" Grass Catcher Parts Diagram

Clean Sweep Twin Grass Catcher for 50" Mower

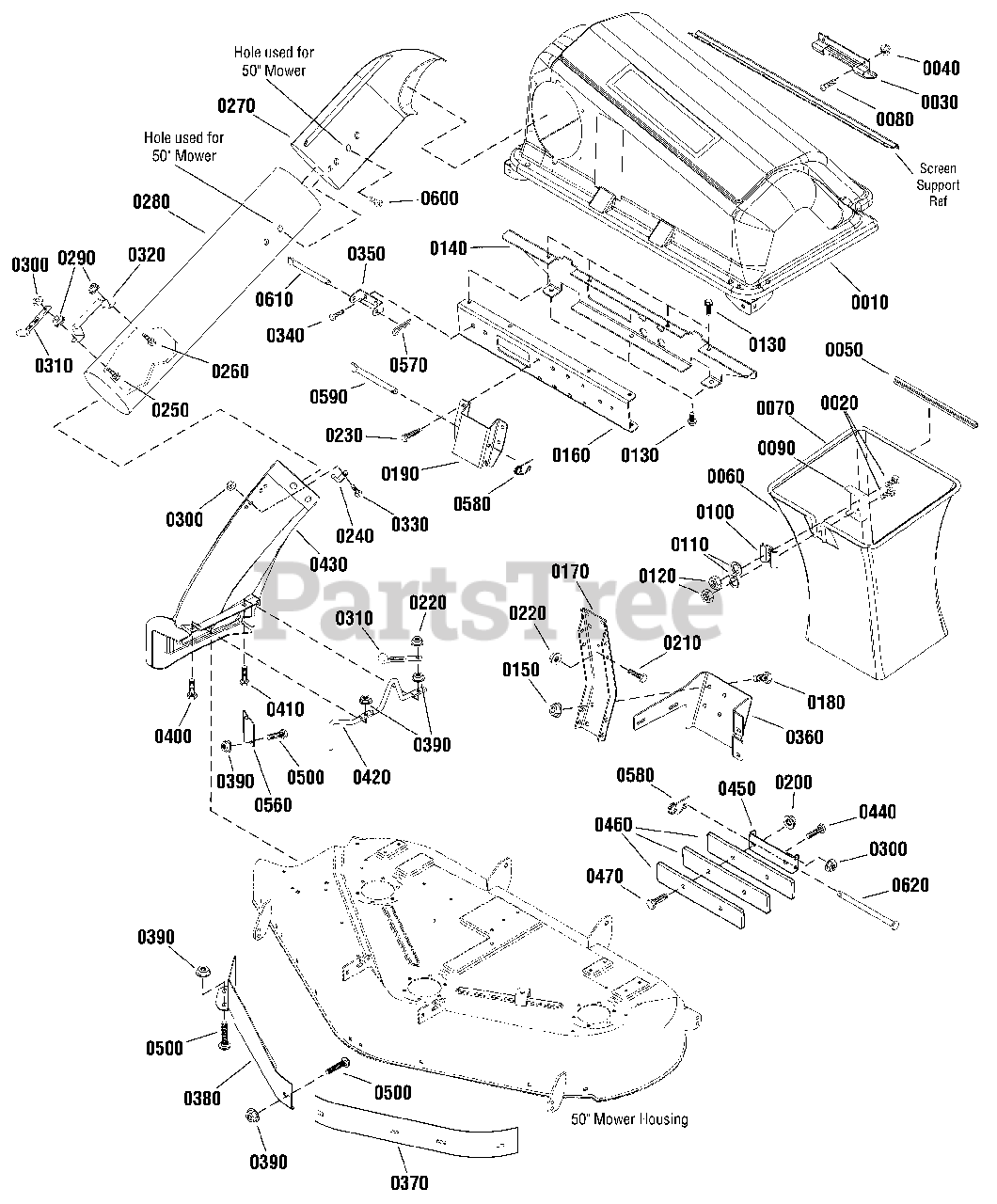

50" Grass Catcher Parts Diagram

  • Title

0010

Snapper 1733758

COVER & SCREEN ASSEMBLY
(Superseded to 1733758SM)

$507.99

$

Usually ships in 2-12 days

0

0080

Snapper 1931333

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0070

Snapper 1733491

HOOP, Twin Catcher
(Superseded to 1733491SM)

$146.99

$

In Stock, only 2 left!

0

0060

Snapper 1703764

BAG, Grass, 15.9 x 16-1/2 x 22-1/2
(Superseded to 5023290)

$

$

Not available

0050

Snapper 1675707

EDGING, 13.5 Long
(Superseded to 1675707SM)

$6.49

$

In Stock, only 4 left!

0

0040

Snapper 1933896

NUT, Hex Lock
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

0030

Snapper 720537

HANDLE, Plastic
(Superseded to 054537MA)

$18.99

$

Usually ships in 2-12 days

0

0020

Snapper 1960404

SCREW, Truss Head Phillips #10 - 24 x 3/4
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

0090

Snapper 1703807A

HANGER, Grass Bag Hoop
(Superseded to 1703807ASM)

$21.99

$

In Stock, only 3 left!

0

0100

Snapper 1672023A

CLAMP, 1/2"
(Superseded to 1672023ASM)

$11.99

$

Usually ships in 2-12 days

0

0110

Snapper 1917356

LOCKWASHER, Spring, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0120

Snapper 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0130

Snapper 1664847SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0140

Snapper 1733613A

BRACKET, Tab Cross Support
(Superseded to 1733613ASM)

$96.99

$

Usually ships in 2-12 days

0

0150

Snapper 1928352

NUT, Hex Flange Whiz Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 9

0

0160

Snapper 1734228A

CHANNEL, Support Cross
(Superseded to 1734228ASM)

$70.99

$

Usually ships in 2-12 days

0

0170

Snapper 1734223A

SUPPORT, Upright
(Superseded to 1734223ASM)

$111.99

$

Usually ships in 2-12 days

0

0180

Snapper 1933260

CAPSCREW, Hex Flange Whiz Lock, 3/8-16 x 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 20+

0

0190

Snapper 1733982A

BRACKET, Bagger Mount
(Superseded to 1733982ASM)

$37.99

$

Usually ships in 2-12 days

0

0200

Snapper 1960687

NUT, Hex Flange Nylock, 3/8-16
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

0210

Snapper 1732426

BOLT, Shoulder, 5/16-18
(Superseded to 1732426SM)

$4.49

$

In Stock, Qty 20+

0

0220

Snapper 1935048

NUT, Hex Flange, 5/16-18 Two-Way Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0230

Snapper 1927187

SCREW, Hex Washer Head Taptite, 3/8-16 x 1
(Superseded to 1927187SM)

$4.49

$

In Stock, only 4 left!

0

0240

Snapper 720543

PIN, Latch
(Superseded to 054563MA)

$23.99

$

In Stock, only 2 left!

0

0250

Snapper 720076

SCREW, 1/4-20 x 1
(Superseded to 004X71MA)

$4.99

$

In Stock, only 4 left!

0

0260

Snapper 720074

SCREW, 1/4-20 x 1/2
(Superseded to 004X24MA)

$4.49

$

Usually ships in 2-12 days

0

0600

Snapper 722855

SCREW, 1/4 Phillips Head
(Superseded to 26X239MA)

$4.49

$

In Stock, only 2 left!

0

0270

Snapper 1733885

ELBOW, Upper Tube
(Superseded to 1733885SM)

$103.99

$

Usually ships in 2-12 days

0

0280

Snapper 1734299

TUBE, Lower Clear Poly
(Superseded to 1734299SM)

$140.99

$

Usually ships in 2-12 days

0

0290

Snapper 1928372

NUT, Hex Keps, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 18

0

0300

Snapper 1930642

NUT, Hex Flange, 1/4-20 Toplock Small
(Superseded to 703916)

$4.99

$

In Stock, only 4 left!

0

0310

Snapper 2171600

STRAP, Hood Rubber
(Superseded to 2171600FS)

$7.49

$

Usually ships in 2-12 days

0

0320

Snapper 720533

Handle Connect Tube
(Superseded to 720533FS)

$17.99

$

Usually ships in 2-12 days

0

0580

Snapper 2176012

RETAINER, Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

0330

Snapper 1960252

BOLT, Carriage, 1/4-20 x 5/8
(Superseded to 1960252SM)

$3.99

$

In Stock, only 2 left!

0

0590

Snapper 1734229

PIN
(Superseded to 1734229SM)

$17.99

$

Usually ships in 2-12 days

0

0340

Snapper 1925003

SCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0610

Snapper 720525

PIN, Cover Hinge
(Superseded to 054407ZMA)

$14.99

$

In Stock, only 1 left!

0

0350

Snapper 1733504A

PIVOT, Hinge
(Superseded to 1733504ASM)

$22.99

$

Usually ships in 2-12 days

0

0570

Snapper 1960074

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0360

Snapper 1737844A

HITCH, Bagger
(Superseded to 1737844AYP)

$76.99

$

Usually ships in 2-12 days

0

0620

Snapper 7200008

PIN, Pivot
(Superseded to 7200008SM)

$5.99

$

Usually ships in 2-12 days

0

0370

Snapper 1716870A

BAFFLE, Blowout L.H. 50" Mower
(Superseded to 1716870ASM)

$164.99

$

Usually ships in 2-12 days

0

0380

Snapper 1726364A

BAFFLE, Blowout R.H. 50" Mower
(Superseded to 1726364ASM)

$74.99

$

Usually ships in 2-12 days

0

0500

Snapper 1931332

BOLT, Carriage, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

0390

Snapper 1927557

NUT, Hex Flange, 5/16-18 Whiz Lock
(Superseded to 703330)

$4.99

$

In Stock, Qty 9

0

0400

Snapper 1960371

SCREW, Head Head, 5/16-18 x 3/4
(Superseded to 1960371SM)

$5.49

$

Usually ships in 2-12 days

0

0410

Snapper 1930595

SCREW, Hex Whiz Lock Flange, 5/16-1-1/2
(Superseded to 1930595SM)

$3.99

$

In Stock, Qty 8

0

0420

Snapper 1733946

ROD, 1/2"
(Superseded to 1733946SM)

$44.99

$

Usually ships in 2-12 days

0

0560

Snapper 1726578A

PLATE, Boot Rod Mount
(Superseded to 1726578ASM)

$32.99

$

Usually ships in 2-12 days

0

0430

Snapper 1734327

TUBE, Boot
(Superseded to 1734327SM)

$

$

Not available

0440

Snapper 723207

BOLT, Shoulder 1/4-20
(Superseded to 310088MA)

$4.99

$

Usually ships in 2-12 days

0

0450

Snapper 1734190A

BRACKET, Front Weight Mount
(Superseded to 1734190ASM)

$21.99

$

Usually ships in 2-12 days

0

0460

Snapper 1734191A

WEIGHT, Counter
(Superseded to 1734191ASM)

$64.99

$

Usually ships in 2-12 days

0

0470

Snapper 1922130

CAPSCREW, Hex Head, 3/8-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 8

0
