1695299 - Simplicity Turbo Collection System for 54" Mower Deck 54" Turbo, Blower Assembly & Mounting Group Parts Diagram

Turbo Collection System for 54" Mower Deck

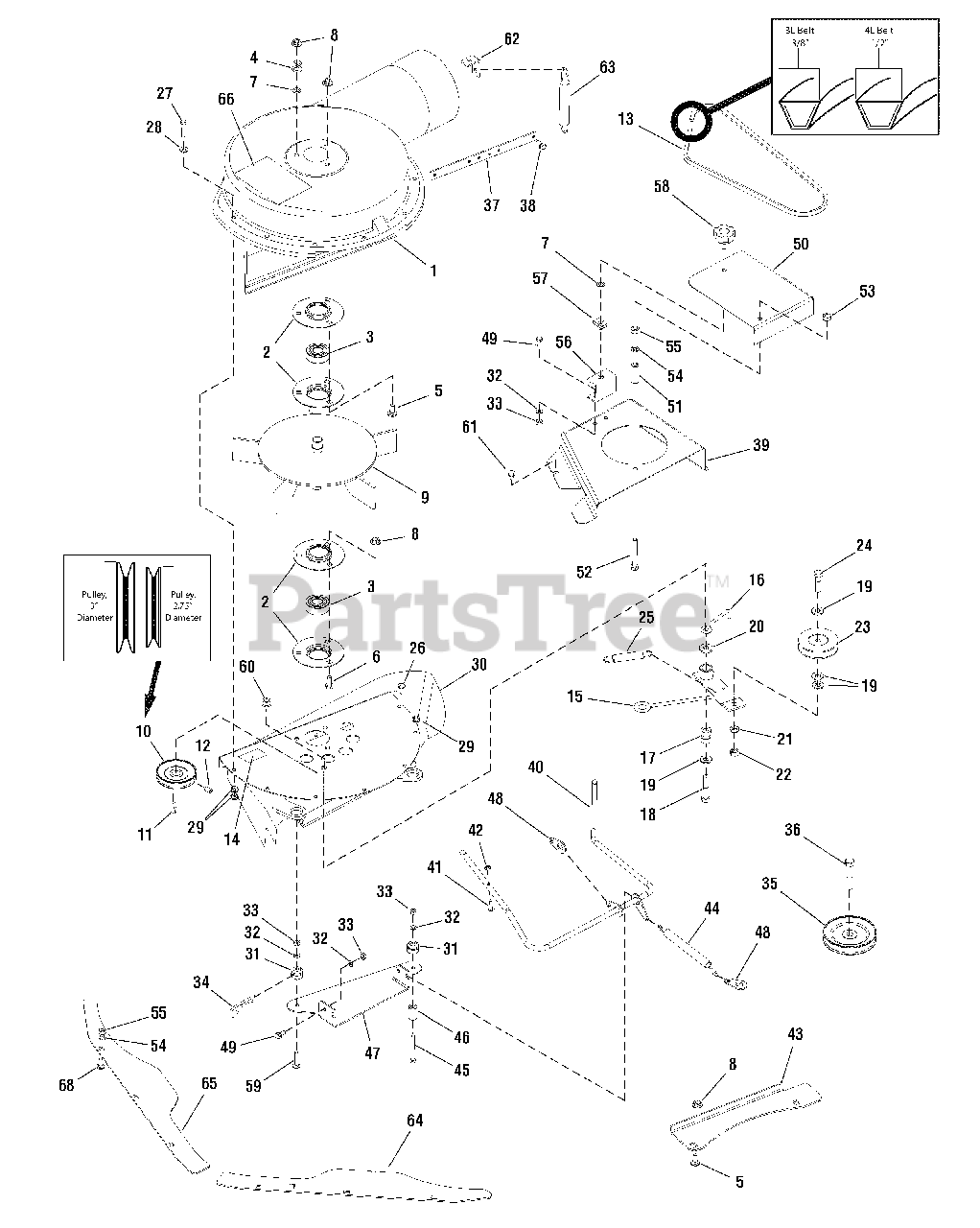

54" Turbo, Blower Assembly & Mounting Group Parts Diagram

  • Title

1

Simplicity 1720742SM

TURBO HOUSING, Fan
(Superseded to 1720892SM)

$228.99

$

Usually ships in 2-12 days

0

2

Simplicity 1665982SM

RETAINER, Bearing

$6.99

$

In Stock, only 4 left!

0

3

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

4

Simplicity 1672689SM

"S" HOOK

$31.99

$

Usually ships in 2-12 days

0

5

Simplicity 1931333SM

BOLT, Carriage, 5/16 - 18 x 3/4
(Superseded to 703185)

Note: (Qty of 2 included in Ref. No. 69)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1921332SM

CAPSCREW, 5/16 - 18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

7

Simplicity 1933988SM

PUSH NUT, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1927557SM

NUT, Flange Lock, 5/16 - 18

Note: (Qty of 2 included in Ref. No. 69)

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 1706631ASM

FAN ASSEMBLY

$384.99

$

In Stock, only 1 left!

0

10

Simplicity 1706634SM

PULLEY, 3" Diam., For 3L Belt

Note: (For 3L V-Belt - Replaced by Service Kit Ref. No. 70)

$45.99

$

In Stock, only 1 left!

0

10

Simplicity 1736092SM

PULLEY, 2-3/4" Diam., For 4L Belt

Note: (For 4L V-Belt - Included in Service Kit Ref. No. 70)

$43.99

$

Usually ships in 2-12 days

0

11

Simplicity 2860403SM

KEY, Woodruff, #61

$10.99

$

In Stock, only 1 left!

0

12

Simplicity 1960619SM

SCREW, Set Torx, 5/16 - 18 x 5/16

$3.49

$

In Stock, only 2 left!

0

13

Simplicity 1720932SM

V-BELT, 3L 3/8" x 36.9
(Superseded to 1734007SM)

Note: (Replaced by Service Kit Ref. No. 70)

$24.99

$

In Stock, only 1 left!

0

13

Simplicity 1733051SM

V-BELT, 4L, 1/2" x 36.9

Note: (Included in Service Kit Ref. No. 70)

$40.99

$

In Stock, only 1 left!

0

14

DECAL, Patent

Note: (Not shown, not serviceable)

$

$

Not available

15

Simplicity 1720934ASM

IDLER ARM ASSEMBLY

$53.99

$

Usually ships in 2-12 days

0

16

Simplicity 1704419SM

BELT STOP

$7.49

$

Usually ships in 2-12 days

0

17

Simplicity 1666114SM

BUSHING
(Superseded to 703140)

$11.99

$

Usually ships in 2-12 days

0

18

Simplicity 1923701SM

CAPSCREW, 3/8 - 16 x 2
(Superseded to 703589)

$4.49

$

In Stock, Qty 9

0

19

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 7

0

21

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 10

0

22

Simplicity 1916950SM

NUT, Hex, 3/8 - 16
(Superseded to 703577)

$4.49

$

In Stock, Qty 12

0

23

Simplicity 2174561SM

PULLEY, Idler

$53.99

$

In Stock, only 4 left!

0

24

Simplicity 1921969SM

CAPSCREW, Hex Head, 3/8 - 16 x 1-1/2, G5
(Superseded to 703406)

$4.99

$

In Stock, Qty 6

0

25

Simplicity 2174896SM

SPRING, Extension

$20.99

$

In Stock, only 2 left!

0

26

Simplicity 1935945SM

SCREW, Truss Head Phillips, 1/4 - 20 x 3/4

$3.49

$

Usually ships in 2-12 days

0

27

Simplicity 1921961SM

CAPSCREW, Hex Head, 1/4 - 20 x 1-1/4, G5

$4.49

$

In Stock, only 3 left!

0

28

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 12

0

29

Simplicity 1920397SM

NUT, Hex Lock ESNA, 1/4 - 20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1720721ASM

PLATE ASSEMBLY

$140.99

$

Usually ships in 2-12 days

0

31

Simplicity 1720718SM

PIN, Pivot

Note: (Included in Ref. No. 69)

$43.99

$

Usually ships in 2-12 days

0

32

Simplicity 1916964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

Note: (Qty of 4 included in Ref. No. 69)

$3.99

$

In Stock, only 2 left!

0

33

Simplicity 1916622SM

NUT, Hex, 1/4 - 20
(Superseded to 703127)

Note: (Qty of 4 included in Ref. No. 69)

$3.49

$

In Stock, only 4 left!

0

34

Simplicity 1704628SM

CLIP, Hairpin

$4.49

$

In Stock, Qty 5

0

35

Simplicity 1720737SM

PULLEY ASSEMBLY

Note: (Included in Ref. No. 69)

$67.99

$

Usually ships in 2-12 days

0

36

Simplicity 1927120SM

CAPSCREW, Hex Head, 7/16 - 14 x 2-1/4, G8

Note: (Included in Ref. No. 69)

$6.99

$

Usually ships in 2-12 days

0

37

Simplicity 1706630ASM

STRAP

$9.49

$

In Stock, only 1 left!

0

38

Simplicity 1927429SM

SCREW, Hex Washer Head Taptite, 1/4 - 20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

39

Simplicity 1734303ASM

COVER, Arbor R.H. Turbo

$279.99

$

Usually ships in 2-12 days

0

40

Simplicity 1720951SM

ROD & ANCHOR

$198.99

$

Usually ships in 2-12 days

0

41

Simplicity 1960404SM

SCREW, Truss Head Phillips, #10 - 24 x 3/4

Note: (Included in Ref. No. 69)

$3.99

$

In Stock, only 4 left!

0

42

Simplicity 1933896SM

NUT, Nylon Hex Lock, 10-24
(Superseded to 703412)

Note: (Included in Ref. No. 69)

$4.49

$

In Stock, Qty 12

0

43

Simplicity 1720749ASM

PLATE, Support

$35.99

$

Usually ships in 2-12 days

0

44

Simplicity 1719590SM

SPRING, Extension

Note: (Included in Ref. No. 69)

$7.99

$

Usually ships in 2-12 days

0

45

Simplicity 1921159SM

CAPSCREW, Hex Head, 1/4 - 20 x 2-1/4, G5
(Superseded to 704291)

Note: (Included in Ref. No. 69)

$5.49

$

Usually ships in 2-12 days

0

46

Simplicity 1720978SM

SPACER

Note: (Included in Ref. No. 69)

$20.99

$

Usually ships in 2-12 days

0

47

Simplicity 1720920ASM

PLATE, Deflector
(Superseded to 1736095ASM)

$13.99

$

Usually ships in 2-12 days

0

48

Simplicity 1720921SM

TAB, Locking

Note: (Included in Ref. No. 69)

$7.49

$

Usually ships in 2-12 days

0

49

Simplicity 1921959SM

CAPSCREW, Hex Head, 1/4 - 20 x 5/8
(Superseded to 001X38MA)

Note: (Qty of 2 included in Ref. No. 69)

$4.49

$

In Stock, Qty 20+

0

50

Simplicity 1720918ASM

COVER

$30.99

$

Usually ships in 2-12 days

0

51

Simplicity 1713588SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

52

Simplicity 1921719SM

CAPSCREW, Hex Head, 5/16 - 18 x 2-1/2, G5
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

53

Simplicity 1919438SM

NUT, Hex Lock ESNA, 5/16 - 18
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

54

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

Note: (Qty of 6 included in Ref. No. 69)

$3.49

$

In Stock, Qty 20+

0

55

Simplicity 1917372SM

NUT, Hex, 5/16 - 18
(Superseded to 7091511SM)

Note: (Qty of 6 included in Ref. No. 69)

$3.49

$

In Stock, Qty 20+

0

56

Simplicity 1700654ASM

BRACKET, "C"

$15.99

$

Usually ships in 2-12 days

0

57

Simplicity 1935255SM

NUT, Speed, 5/16 - 18

$3.49

$

In Stock, Qty 7

0

58

Simplicity 1700669SM

KNOB, Plastic

$19.99

$

Usually ships in 2-12 days

0

59

Simplicity 1931320SM

BOLT, Carriage, 1/4 - 20 x 1-1/4
(Superseded to 703178)

Note: (Included in Ref. No. 69)

$3.99

$

In Stock, only 2 left!

0

60

Simplicity 1930645SM

NUT, Hex Two-Way Lock Flange, 3/8 - 16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

61

Simplicity 1929000SM

SCREW, Hex Washer Head Taptite, 1/4 - 20 x 3/8
(Superseded to 703583)

Note: (Included in Ref. No. 69)

$4.99

$

Usually ships in 2-12 days

0

62

Simplicity 1668500SM

BRACKET, "L"

$19.99

$

Usually ships in 2-12 days

0

63

Simplicity 1727149SM

SPRING, Extension
(Superseded to 703146)

$

$

Not available

64

Simplicity 1720613ASM

BAFFLE, Front L.H.
(Superseded to 1720613BMYP)

$96.99

$

In Stock, only 1 left!

0

65

Simplicity 1721023ASM

BAFFLE, Front R.H.

$48.99

$

In Stock, only 1 left!

0

66

Simplicity 1700259SM

DECAL, Danger Thrown Objects

$27.99

$

Usually ships in 2-12 days

0

68

Simplicity 1931332SM

BOLT, Carriage, 5/16 - 18 x 3/4
(Superseded to 703447)

Note: (Included in Ref. No. 69)

$4.49

$

In Stock, Qty 20+

0

69

Simplicity 1660617SM

HARDWARE BAG

$

$

Not available

70

Simplicity 1687419YP

KIT, Pulley & Belt, 54" Turbo

$176.99

$

Usually ships in 2-12 days

0

--

Simplicity 1720927

INSTRUCTION MANUAL

Note: (Not shown)

$

$

Not available
