1695354 - Simplicity Clean Sweep Triple Grass Catcher for 44" & 50" Mower Triple Catcher Assembly 44" & 50" Parts Diagram

Clean Sweep Triple Grass Catcher for 44" & 50" Mower

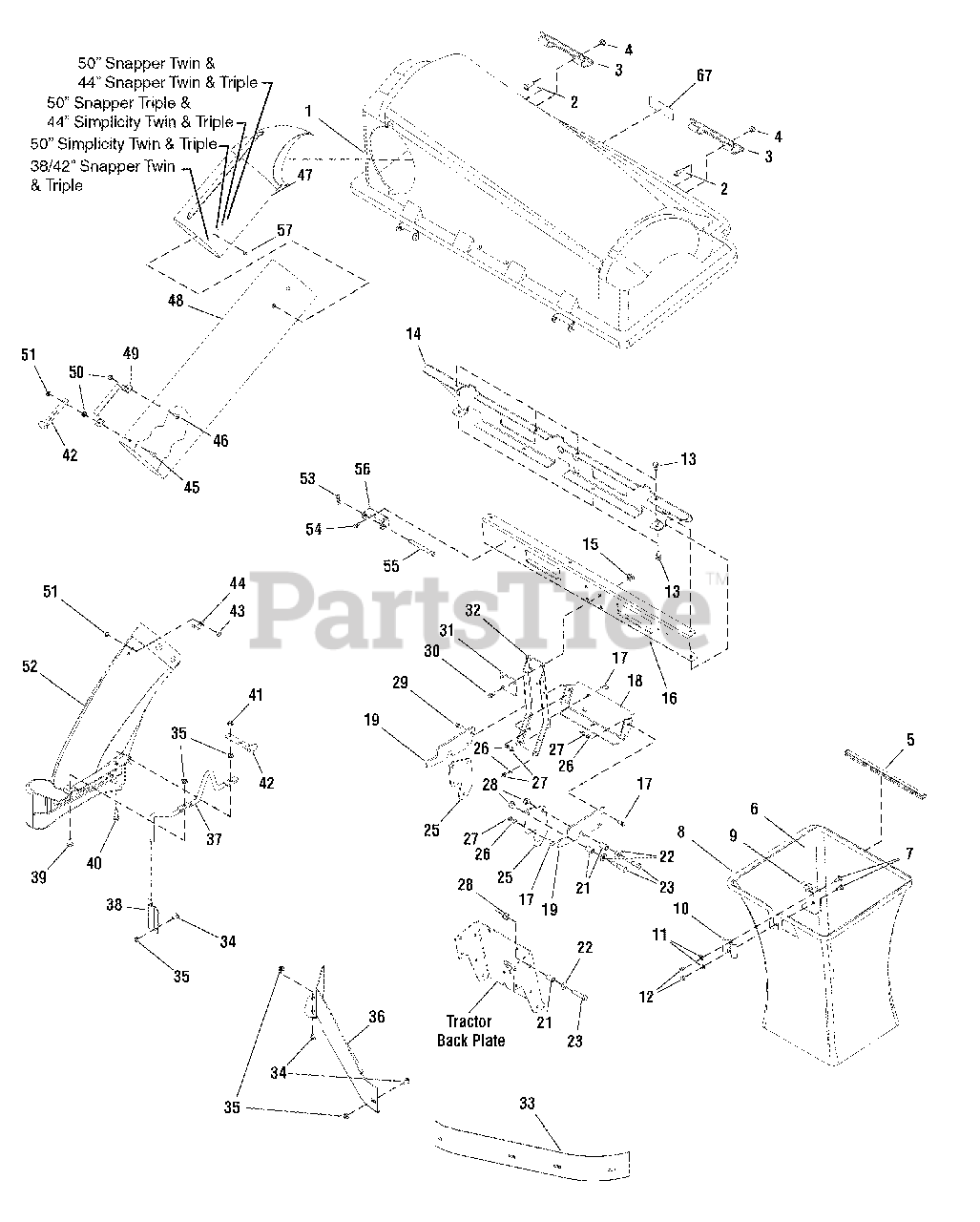

Triple Catcher Assembly 44" & 50" Parts Diagram

  • Title

1

Simplicity 1733546SM

COVER ASSEMBLY, Triple Catcher

$479.99

$

Usually ships in 2-12 days

0

2

Simplicity 1960404SM

SCREW, Truss Head Phillips, 10 - 24 x 3/4

$3.99

$

In Stock, only 4 left!

0

3

Simplicity 054537MA

HANDLE, Plastic

$19.99

$

In Stock, only 2 left!

0

4

Simplicity 1933896SM

NUT, Hex Lock, 10-24 w/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

5

Simplicity 1733709SM

CLIP, Tube Grass Bag

$17.99

$

In Stock, only 1 left!

0

6

Simplicity 1733695SM

BAG, Triple Regular

$148.99

$

Usually ships in 2-12 days

0

7

Simplicity 1931333SM

BOLT, Carriage, 5/16 - 18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1733517SM

HOOP, Triple

$81.99

$

Usually ships in 2-12 days

0

9

Simplicity 1703807ASM

HANGER, Grass Bag

$21.99

$

In Stock, only 1 left!

0

10

Simplicity 1672023ASM

CLAMP, Grass Bag Plain

$11.99

$

Usually ships in 2-12 days

0

11

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

12

Simplicity 1917372SM

NUT, Hex, 5/16 - 18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 2 left!

0

13

Simplicity 1664847SM

SCREW, Hex Washer Head Taptite, 5/16 - 18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1733624ASM

BRACKET, Tab Cross Support Triple

$94.99

$

Usually ships in 2-12 days

0

15

Simplicity 1928352SM

NUT, Hex Whiz Lock Flange, 3/8 - 16
(Superseded to 5025128SM)

Note: (Included in Ref. No. 68)

$3.49

$

In Stock, Qty 15

0

16

Simplicity 1733623ASM

CHANNEL, Cross Support Triple

$113.99

$

Usually ships in 2-12 days

0

17

Simplicity 1921210SM

CAPSCREW, Hex, 3/8 - 16
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 2 left!

0

18

Simplicity 1703744ASM

BRACKET, LOWER

Note: (Included in Ref. No. 68)

$

$

Not available

19

Simplicity 1723067ASM

SUPPORT, SIDE HITCH

$71.99

$

In Stock, only 2 left!

0

21

Simplicity 1668662SM

SPACER

Note: (Included in Ref. No. 68)

$34.99

$

Usually ships in 2-12 days

0

22

Simplicity 1924361SM

WASHER, Flat
(Superseded to 703451)

Note: (Included in Ref. No. 68)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1960462SM

CAPSCREW, Hex Head, 1/2 - 13 x 2 1/2
(Superseded to 5025017X20SM)

Note: (Included in Ref. No. 68)

$5.49

$

In Stock, only 3 left!

0

25

Simplicity 1723044ASM

PLATE, SIDE GRASS CATCHER

$

$

Not available

26

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

Note: (Included in Ref. No. 68)

$3.49

$

In Stock, only 3 left!

0

27

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

Note: (Included in Ref. No. 68)

$4.49

$

In Stock, only 4 left!

0

28

Simplicity 1960355SM

NUT, Hex, Lock 1/2-13
(Superseded to 703567)

Note: (Included in Ref. No. 68)

$4.49

$

In Stock, only 2 left!

0

29

Simplicity 1920415SM

CAPSCREW, Hex Head, 3/8 - 16 x 1 1/4
(Superseded to 5025013X10SM)

$4.49

$

In Stock, only 3 left!

0

30

Simplicity 1934654SM

CAPSCREW, Whiz, 3/8 - 16 x 1.00
(Superseded to 704038)

Note: (Included in Ref. No. 68)

$6.49

$

In Stock, Qty 11

0

31

Simplicity 1733948ASM

PLATE, Reinforcement, Upright

Note: (Included in Ref. No. 68)

$11.99

$

Usually ships in 2-12 days

0

32

Simplicity 1734223ASM

SUPPORT, UPRIGHT

$118.99

$

Usually ships in 2-12 days

0

33

Simplicity 1716870ASM

BAFFLE, Blowout L.H. 50" Mower Deck

$174.99

$

Usually ships in 2-12 days

0

33

Simplicity 1716879ASM

BAFFLE, Blowout L.H. 44" Mower Deck

$122.99

$

Usually ships in 2-12 days

0

34

Simplicity 1931332SM

BOLT, Carriage, 5/16 - 18 x 5/8
(Superseded to 703447)

Note: (Included in Ref. No. 68)

$4.49

$

In Stock, Qty 18

0

35

Simplicity 1927557SM

NUT, Hex Whiz Lock Flange, 5/16 - 18
(Superseded to 703330)

Note: (Included in Ref. No. 68)

$4.99

$

In Stock, Qty 6

0

36

Simplicity 1726364ASM

BAFFLE, Blowout R.H. 50" Mower Deck

$

$

Not available

36

Simplicity 1731990ASM

BAFFLE, Blowout R.H. 44" Mower Deck

$129.99

$

Usually ships in 2-12 days

0

37

Simplicity 1733946SM

ROD, Boot Mount, Deflector Prop, 44/50"

$47.99

$

Usually ships in 2-12 days

0

38

Simplicity 1726578ASM

PLATE, Chute Rod

Note: (Included in Ref. No. 68)

$33.99

$

Usually ships in 2-12 days

0

39

Simplicity 1960371SM

SCREW, Hex Head, 5/16 - 18 x 3/4

$5.99

$

Usually ships in 2-12 days

0

40

Simplicity 1930595SM

SCREW, Hex Whiz Lock Flange, 5/16 - 18 x 1-1/4

Note: (Qty. of 2 included in Ref. No. 68)

$3.99

$

In Stock, Qty 7

0

41

Simplicity 1935048SM

NUT, Hex Flange Two-Way Lock, 5/16 - 18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

42

Simplicity 2171600SM

STRAP, Hood

$7.99

$

In Stock, Qty 20+

0

43

Simplicity 1960252SM

BOLT, Carriage, 1/4 - 20 x 5/8

$3.99

$

Usually ships in 2-12 days

0

44

Simplicity 054563MA

PIN, Latch

$23.99

$

In Stock, only 1 left!

0

45

Simplicity 004X71MA

SCREW, 1/4 - 20 x 1

$4.99

$

In Stock, only 4 left!

0

46

Simplicity 004X24MA

SCREW, 1/4 - 20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

47

Simplicity 1733885SM

ELBOW, Upper Tube Poly

$109.99

$

Usually ships in 2-12 days

0

48

Simplicity 1732552SM

TUBE, Clear Poly
(Superseded to 1734299SM)

$148.99

$

In Stock, only 2 left!

0

49

Simplicity 054416ZMA

HANDLE, Connect Tube

$20.99

$

In Stock, only 2 left!

0

50

Simplicity 1928372SM

NUT, Hex Keps, 1/4 - 20
(Superseded to 703914)

$3.49

$

In Stock, only 2 left!

0

51

Simplicity 1930642SM

NUT, Hex Flange Top-Lock, 1/4 - 20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

52

Simplicity 1734327SM

TUBE, Boot Poly

$

$

Not available

53

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

Note: (Included in Ref. No. 68)

$3.99

$

In Stock, Qty 20+

0

54

Simplicity 1925003SM

SCREW, Hex Washer Head Taptite, 1/4 - 20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

55

Simplicity 054407ZMA

PIN, Cover Hinge

Note: (Included in Ref. No. 68)

$14.99

$

In Stock, only 2 left!

0

56

Simplicity 1733504ASM

PIVOT, Hinge

$23.99

$

Usually ships in 2-12 days

0

57

Simplicity 26X239MA

SCREW, 1/4 x 3/4

Note: (Included in Ref. No. 68)

$4.49

$

Usually ships in 2-12 days

0

58

STICKER, Serial w/Bar Code

Note: (Not Serviceable)

$

$

Not available

59

MYLAR OVERLAY

$

$

Not available

67

Simplicity 1732819SM

DECAL, Warning Thrown Objects

$18.99

$

Usually ships in 2-12 days

0

68

Simplicity 1660954SM

HARDWARE BAG

Note: (Not Shown. Includes Ref. Nos. 15, 18, 21, 22, 23, 26, 27, 30, 31, 34, 35, 38, 40, 53, 55 & 57)

$

$

Not available
