1695362 (6240810x61) - Murray Ultra 24" Snow Thrower (2007) Chute Rod Parts Diagram

Ultra 24" Snow Thrower

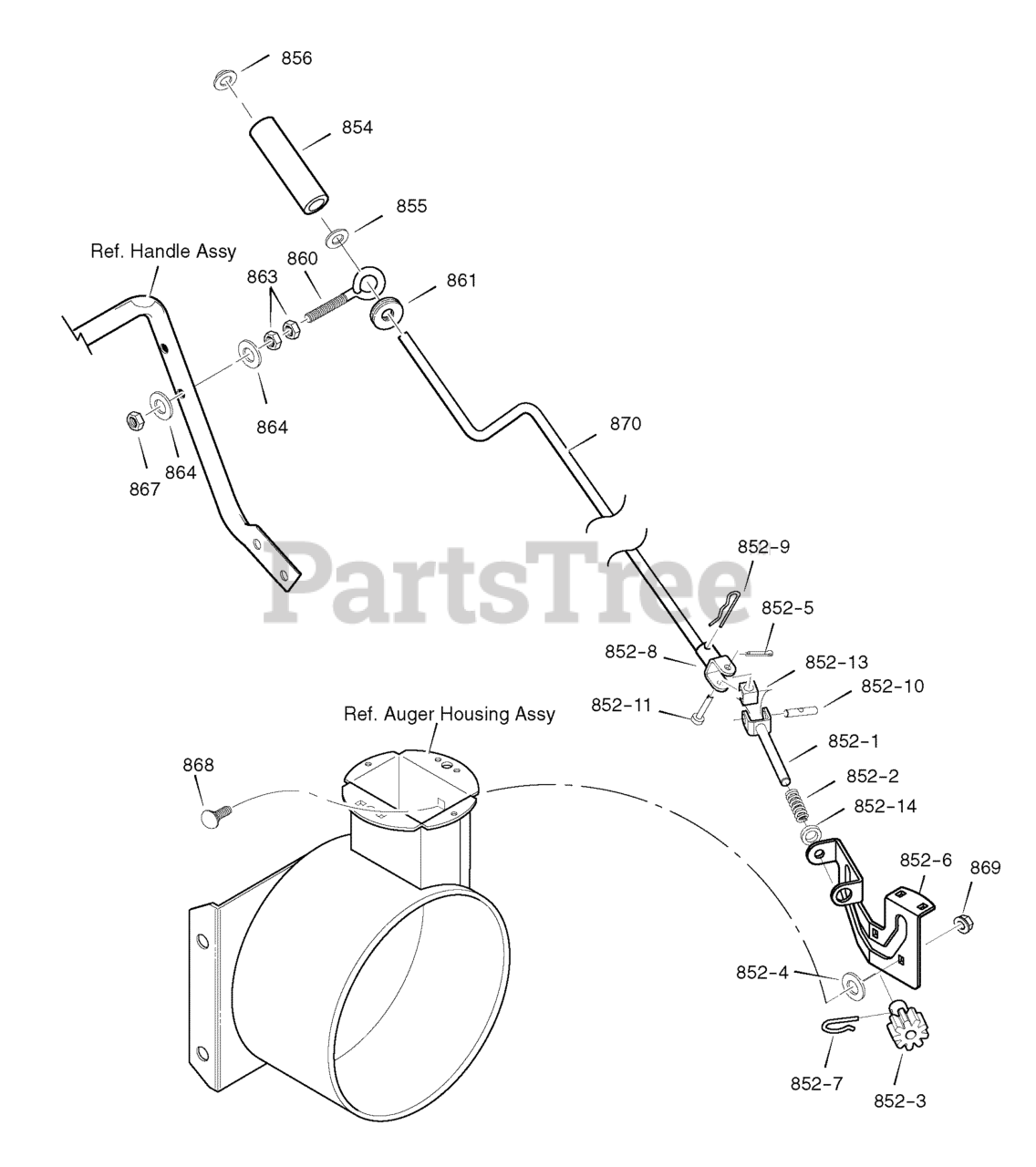

Chute Rod Parts Diagram

  • Title

852-1

Murray 1501533YZMA

ASSEMBLY, Yoke & Rod

$11.99

$

Usually ships in 2-12 days

0

852-2

Murray 164X37MA

SPRING, Compression

$9.49

$

In Stock, only 1 left!

0

852-3

Murray 1501067MA

GEAR, Chute Rotation

$17.99

$

In Stock, only 3 left!

0

852-4

Murray 17X170MA

WASHER

$

$

Not available

852-5

Murray 579493MA

PIN, Cotter

$4.49

$

In Stock, only 4 left!

0

852-6

Murray 1740591AYP

BRACKET, Gear

$22.99

$

Usually ships in 2-12 days

0

852-7

Murray 1501293MA

PIN, Hair

$4.99

$

In Stock, only 2 left!

0

852-8

Murray 1501075YZMA

ASSEMBLY, Yoke Adapter

$10.99

$

In Stock, only 1 left!

0

852-9

Murray 711682MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

852-10

Murray 578060MA

PIN, Universal Joint

$7.49

$

In Stock, Qty 5

0

852-11

Murray 578309MA

PIN, Clevis

$5.49

$

Usually ships in 2-12 days

0

852-13

Murray 578063MA

HOUSING, Universal

$5.49

$

In Stock, Qty 10

0

852-14

Murray 017X48MA

WASHER

$8.49

$

Usually ships in 2-12 days

0

854

Murray 51443MA

KNOB, Sleeve

$7.49

$

Usually ships in 2-12 days

0

856

Murray 73664MA

NUT, Push-Pal, 3/8

$4.99

$

In Stock, only 3 left!

0

860

Murray 1501456MA

EYE BOLT, 3/8 - 16 x 6

$9.49

$

Usually ships in 2-12 days

0

861

Murray 148MA

GROMMET, Eye Bolt

$

$

Not available

863

Murray 71045MA

NUT, Hex Jam, 3/8 - 16

$4.99

$

Usually ships in 2-12 days

0

864

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

Usually ships in 2-12 days

0

867

Murray 71046MA

NUT, Hex Nylock, 3/8 - 16

$4.49

$

Usually ships in 2-12 days

0

868

Murray 002X98MA

BOLT, Cariage 1/4 - 20 x 1
(Superseded to 703584)

$3.99

$

In Stock, only 3 left!

0

869

Murray 15X145MA

NUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

870

Murray 1501074YZMA

CRANK ASSEMBLY, Chute

$

$

Not available
