1695362 (6240810x61) - Murray Ultra 24" Snow Thrower (2007) Frame Parts Diagram

Ultra 24" Snow Thrower

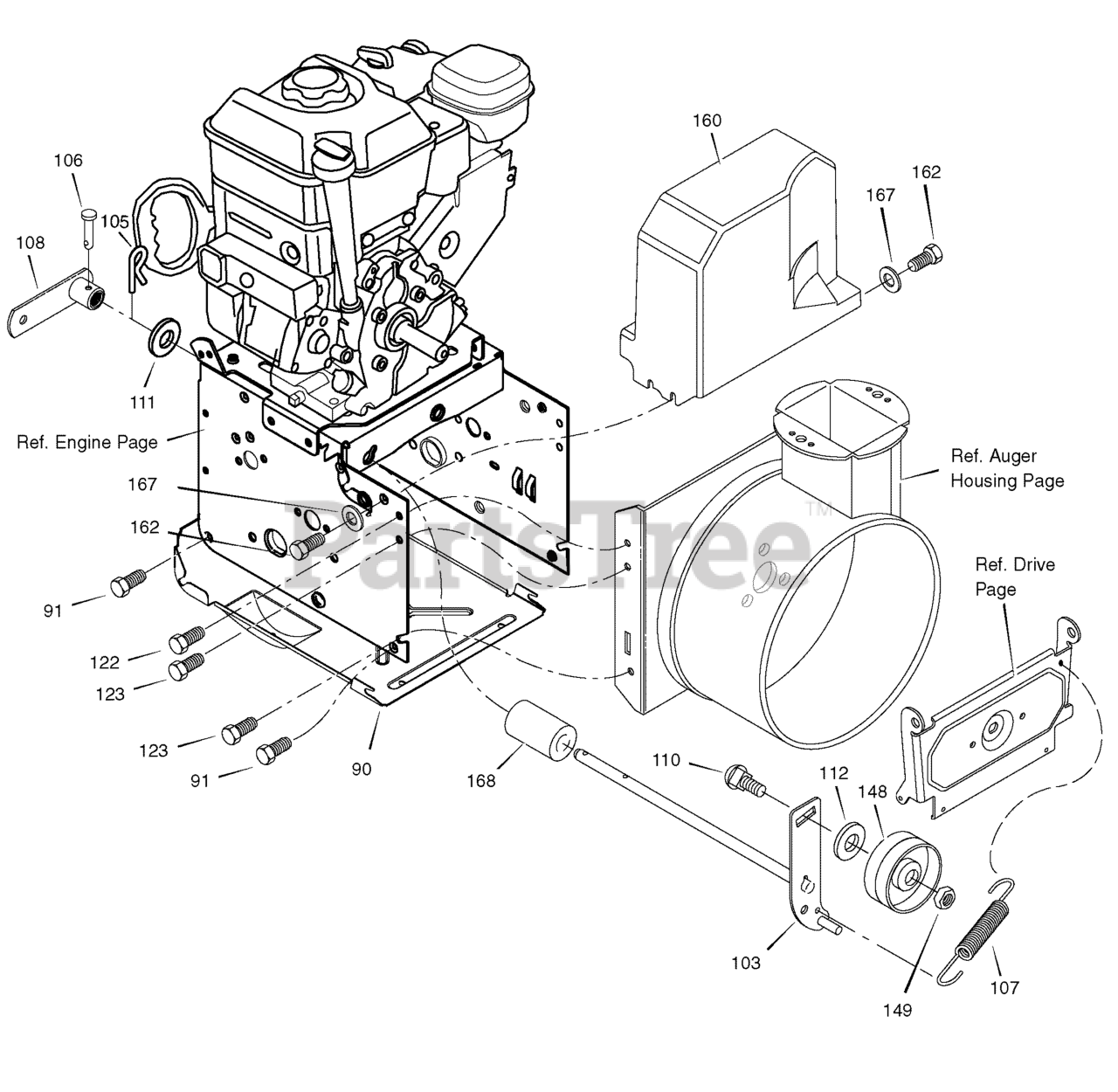

Frame Parts Diagram

  • Title

90

Murray 1740906HMA

COVER, BOTTOM
(Superseded to 1753969BMYP)

$

$

Not available

91

Murray 310169MA

SCREW, 1/4-20X .63
(Superseded to 703054)

$4.49

$

In Stock, Qty 11

0

103

Murray 1501110YZMA

IDLER ASSEMBLY, AUGER

$53.99

$

In Stock, only 2 left!

0

105

Murray 711682MA

PIN, HAIR .38DIAX1.64LG
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

106

Murray 1735135SM

PIN, CLEVIS 3/16" DIA
(Superseded to 703313)

$5.49

$

In Stock, only 2 left!

0

107

Murray 165X160MA

SPRING, TENSION

$

$

Not available

108

Murray 761675YZMA

ARM, CONTROL

$6.99

$

Usually ships in 2-12 days

0

110

Murray 585781MA

BOLT, 3/8-16X1.25 CARR.
(Superseded to 1960268SM)

$4.49

$

In Stock, only 3 left!

0

111

Murray 711617MA

WASHER, FLAT

$5.99

$

In Stock, only 2 left!

0

112

Murray 017X48MA

WASHER

$8.99

$

Usually ships in 2-12 days

0

122

Murray 25X020MA

SCREW, TAP 5/16-18 X 0.50

$5.49

$

In Stock, Qty 6

0

123

Murray 25X021MA

SCREW, TAP 5/16-18 X 0.75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

148

Murray 1502120MA

PULLEY, IDLER

$23.99

$

In Stock, only 2 left!

0

149

Murray 590MA

NUT, JAM 3/8-16
(Superseded to 703996)

$5.49

$

In Stock, Qty 8

0

160

Murray 1740803MA

COVER, BELT

$

$

Currently unavailable

162

Murray 26X306MA

SCREW, TAP
(Superseded to 1751355YP)

$6.99

$

Usually ships in 2-12 days

0

167

Murray 71067MA

WASHER, FLAT
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

168

Murray 1502041MA

SPACER, AUGER BRACKET

$5.99

$

Usually ships in 2-12 days

0
