1695364 (6271201x61) - Murray Ultra 27" Snow Thrower (2007) Discharge Chute Parts Diagram

Ultra 27" Snow Thrower

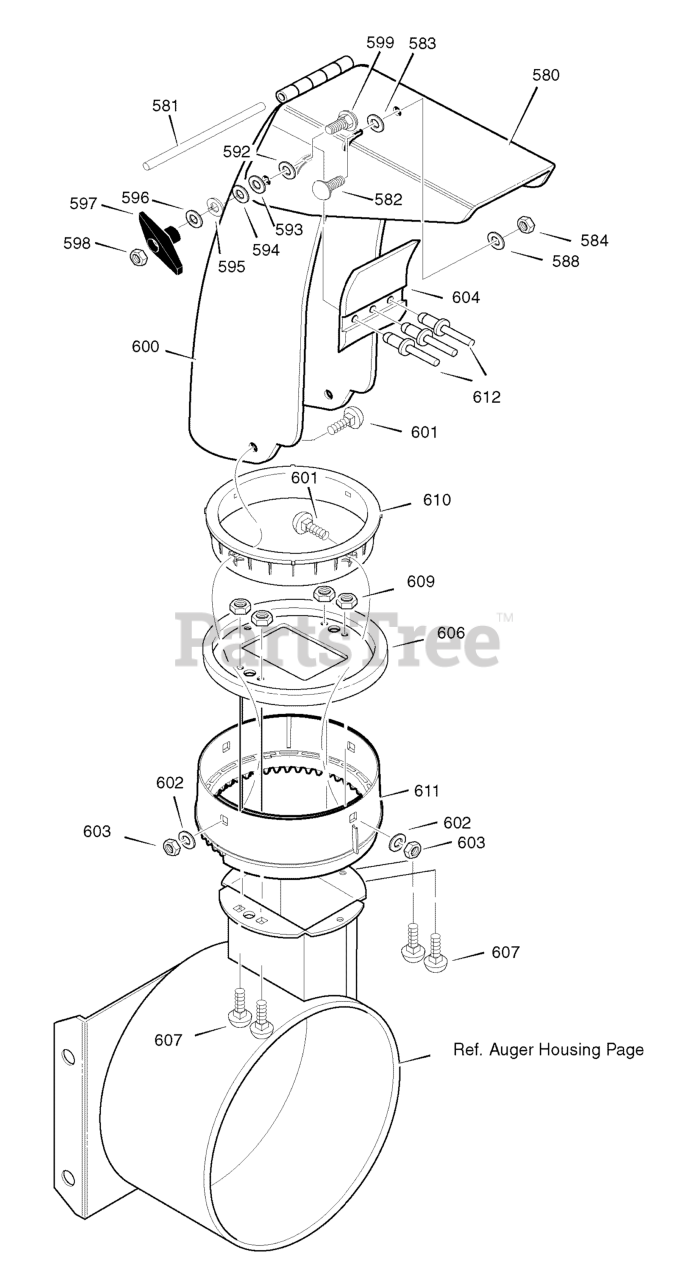

Discharge Chute Parts Diagram

  • Title

580

Murray 1735014HMA

CHUTE, UPPER HALF

$28.99

$

Usually ships in 2-12 days

0

581

Murray 305216MA

PIN, HINGE

$6.49

$

Usually ships in 2-12 days

0

582

Murray 340720MA

BOLT, CARRIAGE 5/16-18 X.75
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

583

Murray 12021MA

WASHER, PLASTIC

$3.99

$

In Stock, only 2 left!

0

584

Murray 71038MA

NUT, 5/16-18 REGHEX NYLOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

588

Murray 6711MA

WASHER, PLASTIC

$3.99

$

In Stock, only 1 left!

0

592

Murray 12021MA

WASHER, PLASTIC

$3.99

$

In Stock, only 2 left!

0

593

Murray 6711MA

WASHER, PLASTIC

$3.99

$

In Stock, only 1 left!

0

594

Murray 71071MA

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, Qty 10

0

595

Murray 71060MA

WASHER, SPLIT
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

596

Murray 71071MA

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, Qty 10

0

597

Murray 1501260MA

KNOB, T 3.00

$8.49

$

In Stock, only 3 left!

0

598

Murray 15X144MA

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0

599

Murray 3316MA

BOLT, 5/16-18X1.00

$3.49

$

Usually ships in 2-12 days

0

600

Murray 1735015HMA

CHUTE, LOWER HALF

$

$

Not available

601

Murray 2X100MA

BOLT, 5/16-18 X1.00
(Superseded to 704217)

$9.49

$

Usually ships in 2-12 days

0

602

Murray 71071MA

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, Qty 10

0

603

Murray 71038MA

NUT, 5/16-18 HEXNYL
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

604

Murray 760268MA

FLAP, CHUTE

$10.99

$

Usually ships in 2-12 days

0

606

Murray 1501932YZMA

CHUTE COLLAR

$30.99

$

In Stock, only 1 left!

0

607

Murray 02X101MA

SCREW, 1/4-20 X 0.75
(Superseded to 703440)

$3.99

$

In Stock, Qty 8

0

609

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

610

Murray 337227MA

RETAINER RING INNER

$17.99

$

In Stock, Qty 20+

0

611

Murray 1501282MA

RETAINER RING OUTER

$26.99

$

In Stock, only 1 left!

0

612

Murray 760987MA

RIVET

$3.99

$

In Stock, only 1 left!

0
