1695369 (6291570x54) - Canadiana 29" Snow Thrower (2007) Drive Parts Diagram

29" Snow Thrower

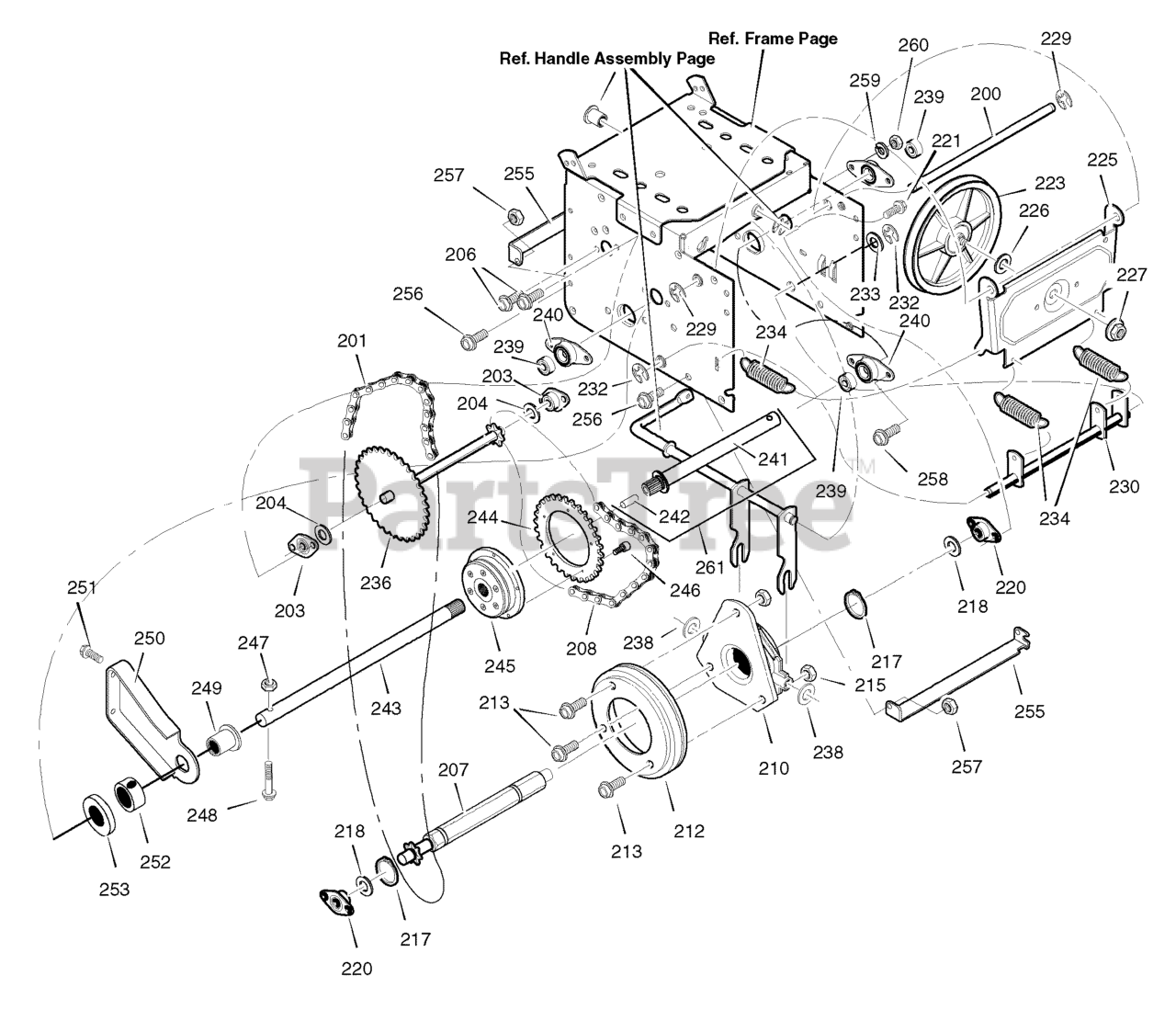

Drive Parts Diagram

  • Title

200

Murray 1501092YZMA

LF AXLE, SWING PLATE YZ

$12.99

$

Usually ships in 2-12 days

0

201

Murray 579851MA

CHAIN, ROLLER #420 X 19.00

$21.99

$

In Stock, only 1 left!

0

203

Murray 334163MA

BEARING AND RETAINER, ASSEMBLY

$11.99

$

In Stock, Qty 20+

0

204

Murray 579858MA

WASHER

$4.49

$

In Stock, only 2 left!

0

206

Murray 25X020MA

SCREW, TAP 5/16-18 X 0.5

$4.99

$

In Stock, Qty 6

0

207

Murray 1501630MA

HEX SHAFT ASSEMBLY

$32.99

$

Usually ships in 2-12 days

0

208

Murray 579868MA

CHAIN, ROLLER #420 X 18.00 LG

$20.99

$

In Stock, only 1 left!

0

210

Murray 337029MA

BEARING, TRUNION CLUTCH R
(Superseded to 1739282YP)

$39.99

$

In Stock, Qty 6

0

212

Murray 1501435MA

WHEEL, FRICTION DISC

$27.99

$

In Stock, Qty 20+

0

213

Murray 001X38MA

BOLT

$4.49

$

In Stock, Qty 20+

0

215

Murray 303008MA

NUT, KEPS HEX 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 18

0

217

Murray 579859MA

RING, RETEXT

$4.49

$

Usually ships in 2-12 days

0

218

Murray 579858MA

WASHER

$4.49

$

In Stock, only 2 left!

0

220

Murray 334163MA

BEARING AND RETAINER ASSEMBLY

$11.99

$

In Stock, Qty 20+

0

221

Murray 25X020MA

SCREW, TAP 5/16-18 X 0.5

$4.99

$

In Stock, Qty 6

0

223

Murray 1501115MA

FRICTION PULLY

$

$

Not available

225

Murray 1501057YZMA

LF PLATE, SWINGING YZ

$37.99

$

In Stock, only 1 left!

0

226

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, only 2 left!

0

227

Murray 15X114MA

NUT, FLANGE LOCK 3/8-24

$4.49

$

Usually ships in 2-12 days

0

229

Murray 11X30MA

RETAINER, RING

$4.49

$

In Stock, only 2 left!

0

230

Murray 1502084YZMA

ASSEMBLY, SPRING LINK STEERABLE

$19.99

$

Usually ships in 2-12 days

0

232

Murray 11X30MA

RETAINER, RING

$4.49

$

In Stock, only 2 left!

0

233

Murray 017X57MA

WASHER

$4.49

$

Usually ships in 2-12 days

0

234

Murray 165X112MA

SPRING, EXTENSION
(Superseded to 1736469YP)

$6.99

$

In Stock, Qty 6

0

236

Murray 1501652MA

SPROCKET SET 33T/7

$55.99

$

In Stock, only 1 left!

0

238

Murray 71074MA

WASHER, FLAT

$

$

Not available

239

Murray 53263MA

BEARING, BALL

$38.99

$

In Stock, only 2 left!

0

240

Murray 50648MA

RETAINER, BEARING

$

$

Not available

241

Murray 1502097YZMA

AXLE, LEFT
(Superseded to 1502106MA)

$

$

Not available

242

Murray 1502024MA

PIN, AXLE

$12.99

$

Usually ships in 2-12 days

0

243

Murray 1732566SM

AXLE AND BUSHING, RIGHT
(Superseded to 1502047MA)

$143.99

$

Usually ships in 2-12 days

0

244

Murray 1501623MA

SPROCKET

$18.99

$

Usually ships in 2-12 days

0

245

Murray 1501619MA

CLUTCH, AUTO LOCK

$

$

Not available

246

Murray 352X3MA

SCREW

$3.99

$

In Stock, only 1 left!

0

247

Murray 15X145MA

NUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

248

Murray 577015MA

BOLT

$4.99

$

In Stock, Qty 9

0

249

Murray 1501114MA

BEARING, AXLE

$11.99

$

In Stock, only 4 left!

0

250

Murray 1501618YZMA

BRACKET, AXLE SUPPORT

$30.99

$

Usually ships in 2-12 days

0

251

Murray 25X021MA

SCREW
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

252

Murray 1501620MA

COLLAR, LOCKING

$16.99

$

Usually ships in 2-12 days

0

253

Murray 17X195MA

WASHER

$4.99

$

In Stock, Qty 20+

0

255

Murray 1502030YZMA

BRACKET, SUPPORT
(Superseded to 704216)

$9.49

$

Usually ships in 2-12 days

0

256

Murray 001X38MA

BOLT

$4.49

$

In Stock, Qty 20+

0

257

Murray 780285MA

NUT
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

258

Murray 001X85MA

BOLT

$3.99

$

Usually ships in 2-12 days

0

259

Murray 71062MA

WASHER

$3.49

$

Usually ships in 2-12 days

0

260

Murray 71044MA

NUT

$3.49

$

Usually ships in 2-12 days

0

261

Murray 1502098MA

AXLE WASHER PIN ASSEMBLY

$64.99

$

Usually ships in 2-12 days

0
